UM2209
User manual
Getting Started with X-NUCLEO-OUT01A1 industrial digital
output expansion board for STM32 Nucleo
Introduction
The X-NUCLEO-OUT01A1 industrial digital output expansion board for STM32 Nucleo is based on the
ISO8200BQ galvanic isolated octal high-side smart power solid state-relay.
It provides an affordable and easy-to-use development platform for implementing galvanic insulation in
industrial power switch driver applications.
The board can be plugged onto an STM32 Nucleo development board (NUCLEO-F103RB, NUCLEO-
®
F302R8 or NUCLEO-F401RE) via its Arduino
UNO R3 connectors.
Other boards can also be stacked to further expand functionality: industrial PLC functionality with 8
inputs and 16 outputs can be added with the X-NUCLEO-PLC01A1 expansion board, and the X-
NUCLEO-IDW01M1 expansion board adds wireless communication functionality for remote PLC
management, which is enhanced by the ST-PLC Android™ or iOS™ app.
This board is designed to comply with applicable industrial EMC standards.

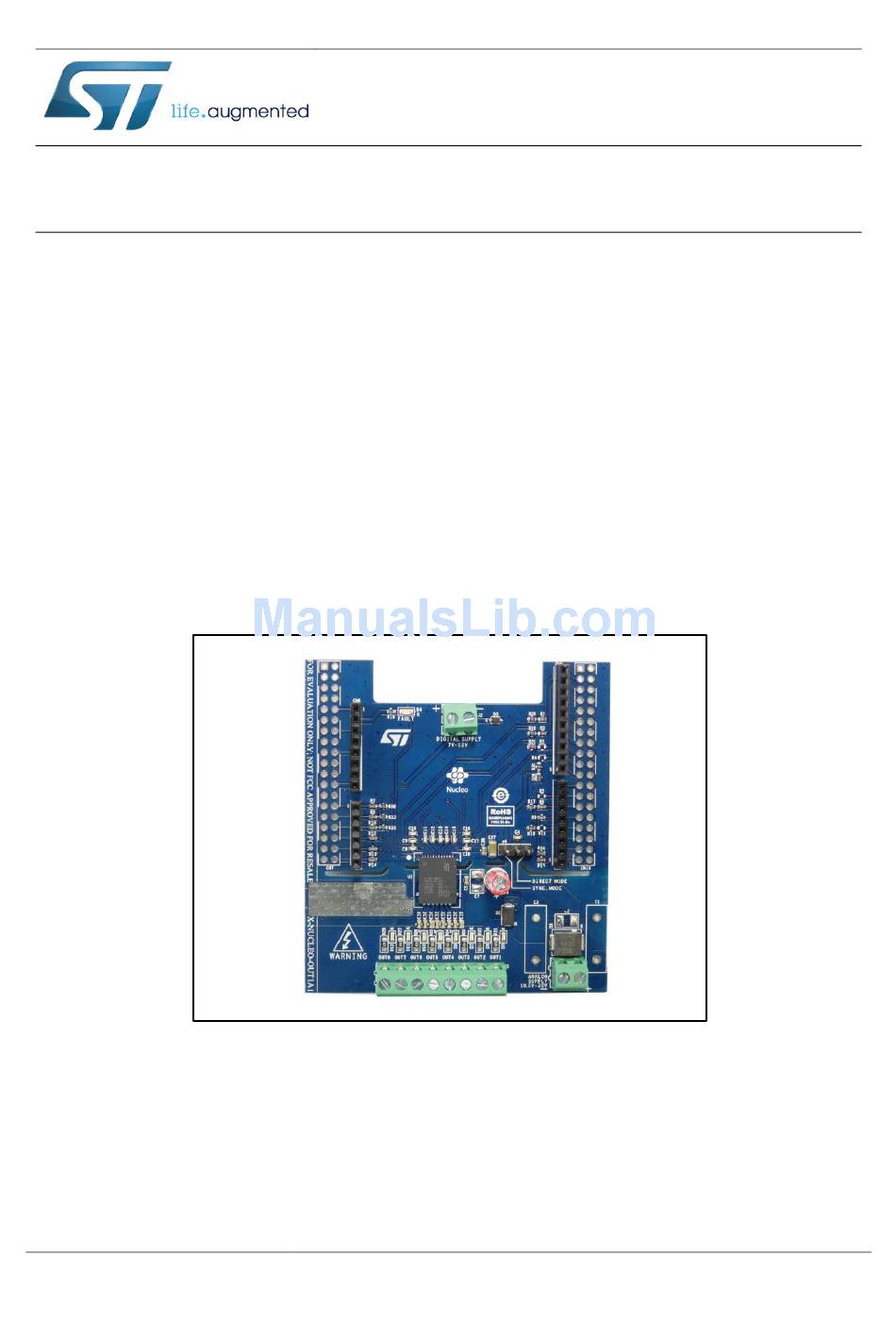

Figure 1: X-NUCLEO-OUT01A1 expansion board
June 2017
DocID030568 Rev 1
1/17
www.st.com
Advertisement
Table of Contents
Related Manuals for ST X-NUCLEO-OUT01A1
Summary of Contents for ST X-NUCLEO-OUT01A1
-
Page 1: Figure 1: X-Nucleo-Out01A1 Expansion Board
STM32 Nucleo Introduction The X-NUCLEO-OUT01A1 industrial digital output expansion board for STM32 Nucleo is based on the ISO8200BQ galvanic isolated octal high-side smart power solid state-relay. It provides an affordable and easy-to-use development platform for implementing galvanic insulation in industrial power switch driver applications. -
Page 2: Table Of Contents
Contents Getting started ................. 5 Hardware requirements ..............5 System requirements ................ 6 X-NUCLEO-OUT01A1 expansion board overview ......7 Digital section ..................7 Power section ..................8 Direct access and synchronised access ........... 9 Powering and initializing the board ..........10 Schematic diagrams .............. - Page 3 UM2209 List of tables List of tables Table 1: ISO8200BQ access modes ......................9 Table 2: Bill of materials..........................13 Table 3: Document revision history ......................16 DocID030568 Rev 1 3/17...
- Page 4 Figure 1: X-NUCLEO-OUT01A1 expansion board ..................1 Figure 2: X-NUCLEO-OUT01A1 plugged on an STM32 Nucleo board ............5 Figure 3: STM32 Nucleo development board plus X-NUCLEO-OUT01A1 expansion board layout and connection ..............................7 Figure 4: X-NUCLEO-OUT01A1 expansion board digital interface components ........8 Figure 5: X-NUCLEO-OUT01A1 expansion board power section components .........
-
Page 5: Getting Started
UM2209 Getting started Getting started Hardware requirements The X-NUCLEO-OUT01A1 is designed to be used with the following STM32 Nucleo boards (visit www.st.com for further information): NUCLEO-F103RB NUCLEO-F302R8 NUCLEO-F401RE Figure 2: X-NUCLEO-OUT01A1 plugged on an STM32 Nucleo board The X-NUCLEO-OUT01A1 is plugged onto the matching Arduino®... -
Page 6: System Requirements
Getting started UM2209 System requirements To complete the system, you need: ® a Windows (version 7 or above) PC a USB type A to mini-B USB cable to connect the STM32 Nucleo to the PC the X-CUBE-OUT1 board firmware and software package installed on the user PC 6/17 DocID030568 Rev 1... -
Page 7: X-Nucleo-Out01A1 Expansion Board Overview
UM2209 X-NUCLEO-OUT01A1 expansion board overview X-NUCLEO-OUT01A1 expansion board overview The X-NUCLEO-OUT01A1 is equipped with the ISO8200BQ intelligent power switch (IPS), featuring galvanic insulation for safe digital microcontroller interface and overcurrent and over temperature protection for safe output load control. Figure 3: STM32 Nucleo development board plus X-NUCLEO-OUT01A1 expansion board... -
Page 8: Power Section
close jumper JP5 between pins 2 and 3 on the STM32 Nucleo development board connect a 7 V to 12 V supply at screw connector J2 on the X-NUCLEO-OUT01A1 expansion board Power section The power section involves the power supply voltage, load connection and Electromagnetic compatibility (EMC) protections. -
Page 9: Direct Access And Synchronised Access
UM2209 X-NUCLEO-OUT01A1 expansion board overview Figure 5: X-NUCLEO-OUT01A1 expansion board power section components For EMC: a Transil™ diode SMC30J30CA is placed on VCC track to protect the ISO8200BQ against surge discharge for common mode surge testing, solder two single-layer capacitors C1 and C3 (not included) at the predisposed locations ... -
Page 10: Powering And Initializing The Board
Close jumpers SB62 and SB63 Open jumpers SB13 and SB14 connect the ISO8200BQ device supply voltage via J1 on the X-NUCLEO-OUT01A1 provide the digital supply voltage: when connected to a PC: keep the micro-USB cable connected and close jumper JP5 on the STM32 Nucleo board between pins 1 and 2. -
Page 11: Schematic Diagrams
UM2209 Schematic diagrams Schematic diagrams Figure 6: Schematic diagram (1 of 2) 22nF/50V 22nF/50V 22nF/50V 22nF/50V 22nF/50V 22nF/50V 22nF/50V 22nF/50V 100nF/50V 10uF/63V 2.2uF/50V MLCC TAB Vcc GND1 GND2 33 GND3 GND4 35 GNDdd 47uF/10V 220nF/10V DocID030568 Rev 1 11/17... -
Page 12: Figure 7: Schematic Diagram (2 Of 2)
Schematic diagrams UM2209 Figure 7: Schematic diagram (2 of 2) CN10 Analog supply 10.5 V - 30 V Main voltage AVDD Vcc supply IOREF NRST 4.7nF/3kV N.M. EARTH 2.2uF/50V GND_DEC 4.7nF/3kV N.M STPS1H100A EARTH CON38 CON38 Morpho Connectors Digital supply 7V - 12V M2VITE ISO_IN8... -
Page 13: Bill Of Materials
UM2209 Bill of materials Bill of materials Table 2: Bill of materials Item Quantity Reference Part/Value Description Manufacturer Order code C19,C20,C21,C22,C23, 22nF, 50V, Ceramic C0603C223 Kemet C24,C25,C26 +/- 10% MLCC K1RACTU C4,C8,C9,C10,C11,C1 10pF, 50V, Ceramic MCMT15N1 2,C13,C14,C15,C16,C1 MULTICOMP +/-5% capacitor 00F100CT 7,C18 10uF, 63V... - Page 14 Bill of materials UM2209 Item Quantity Reference Part/Value Description Manufacturer Order code J1,J2 87224-3 Connectivity SSQ-119- CN7,CN10 Samtec 04-L-D 470R, +/- CR0603-JW- Bourns 471GLF CR0603-JW- R29,R30 4k7, +/-5% Bourns 472GLF R21,R22,R23,R24,R25, 8.2K, +/- CRG0805F8 R26,R27,R28 Connectivity R1,R2,R6,R7,R8,R9,R 100R, +/- CR0603-JW- Bornus 10,R12,R13,R14,R15 101GLF...
-
Page 15: References
UM2209 References References The following resources are all readily available on www.st.com ISO8200BQ datasheet X-CUBE-OUT1 user manual X-NUCLEO-PLC01A1 user manual X-NUCLEO-IDW01M1 user manual ST-PLC databrief STM32 Nucleo-64 board user manual DocID030568 Rev 1 15/17... -
Page 16: Revision History
Revision history UM2209 Revision history Table 3: Document revision history Date Version Changes 09-Jun-2017 Initial release. 16/17 DocID030568 Rev 1... - Page 17 ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
