Getting started with the X-NUCLEO-OUT01A2 industrial digital output expansion
Introduction
The
X-NUCLEO-OUT01A2
is an industrial digital output expansion board for
environment for the evaluation of the driving and diagnostic capabilities of the
state relay, with embedded galvanic isolation, in a digital output module connected to 0.7 A industrial loads.
The
X-NUCLEO-OUT01A2
directly interfaces with the microcontroller on the STM32 Nucleo driven by GPIO pins and Arduino
R3 connectors.
The galvanic isolation between the microcontroller and the process stage is guaranteed by the ISO8200BQ.
The expansion board can be connected to either a
It is also possible to evaluate a system composed of a
The board can be configured as the former
switches (close 1-2: SW1, SW28, SW29, SW30, SW31, SW32, SW33, SW35, SW37). In this case, the driving firmware can be
only the
X-CUBE-OUT1
and the board can be connected to the
inputs and 16 outputs. Also, wireless communication capabilities can be added with the X-NUCLEO-IDW01M1, which
establishes communication on a smart device to manage the PLC remotely. A dedicated ST-PLC app is available for Android™
and iOS™ systems for this purpose.
UM3184 - Rev 1 - July 2023
For further information contact your local STMicroelectronics sales office.
NUCLEO-F401RE
X-NUCLEO-OUT01A2
X-NUCLEO-OUT01A1
by a set of jumpers (open: J13, J14, J15, J16, J17) and
X-NUCLEO-PLC01A1

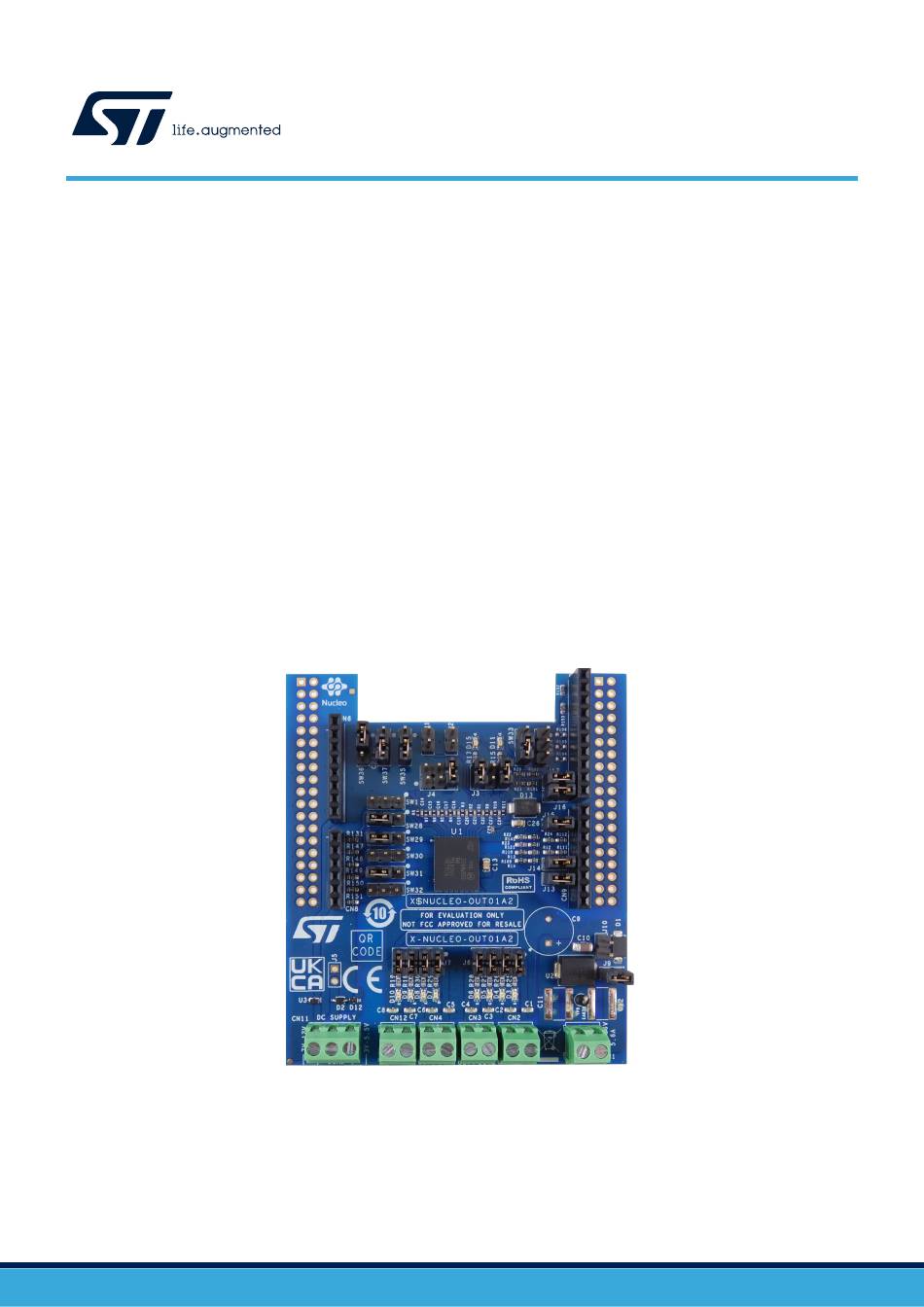

Figure 1.
X-NUCLEO-OUT01A2 expansion board
board for STM32 Nucleo
STM32
Nucleo. It provides a powerful and flexible
ISO8200BQ
octal high-side smart power solid
or a
NUCLEO-G431RB
development board.
stacked on other expansion boards.
to form a powerful industrial PLC with 8
UM3184
User manual
®
www.st.com
Advertisement
Table of Contents
Related Manuals for ST X-NUCLEO-OUT01A2
Summary of Contents for ST X-NUCLEO-OUT01A2
-
Page 1: Figure 1. X-Nucleo-Out01A2 Expansion Board
16 outputs. Also, wireless communication capabilities can be added with the X-NUCLEO-IDW01M1, which establishes communication on a smart device to manage the PLC remotely. A dedicated ST-PLC app is available for Android™ and iOS™ systems for this purpose. -
Page 2: Getting Started
UM3184 Getting started Getting started Overview X-NUCLEO-OUT01A2 embeds the ISO8200BQ intelligent power switch (IPS), which features galvanic isolation, overcurrent and overtemperature protection for safe output loads control. The board is designed to meet the application requirements for the galvanic isolation between the user and power interfaces. -
Page 3: Board Configuration
Table 2 shows how to configure the board to maintain the hardware compatibility with the previous version. At last, in Table 3 is reported a list of switch and jumpers which configuration is common for both version Table 1. X-NUCLEO-OUT01A2 Jumpers / Switches Default configuration... -
Page 4: Digital Section
The pin 3 of the connector CN11 can be used to supply the logic side of the ISO8200BQ independently by the expansion board. In this case, on the X-NUCLEO-OUT01A2, the pins 1 and 2 of J4 must be closed (pins 5-6 open). UM3184 - Rev 1... -
Page 5: Power Section
(eight loads can be connected between each pin of CN2, CN3, CN4, and CN12 and pin 2 of CN1), EMC protections (U2), and supply reverse polarity protection (D1). Figure 3. X-NUCLEO-OUT01A2 expansion board: power section ISO8200BQ Output and power supply connector... -
Page 6: Hardware Requirements
Arduino UNO R3 connector pins on the STM32 Nucleo board as shown below. Figure 4. X-NUCLEO-OUT01A2 and STM32 Nucleo stack System requirements To use the STM32 Nucleo development boards with the X-NUCLEO-OUT01A2 expansion board, you need: •... -
Page 7: Board Setup
If the board is configured as X-NUCLEO-OUT01A1, refer to UM2209 X-CUBE-OUT1 as the control firmware. When the board is configured as X-NUCLEO-OUT01A2, refer to the following steps: Step 1. Connect the mini-USB or micro-USB cable to your PC to use the X-NUCLEO-OUT01A2... -
Page 8: Schematic Diagrams
S S Q-119-04-L-D ISO8200BQ direct supply voltage: - set to max 3.3V ES DA7P 60-1U1M S W33 when X-NUCLEO-OUT01A2 is used with NUCLEO board DEFAULT S TATUS 691214110003 - can be set to max 5.5V when X-NUCLEO-OUT01A2 is used stand-alone... -
Page 9: Figure 6. X-Nucleo-Out01A2 Circuit Schematic (2 Of 2)
Figure 6. X-NUCLEO-OUT01A2 circuit schematic (2 of 2) de fa ult: clos e 1-2, 5-6 con6-2x3-s trip-ma le de fa ult: clos e 5-6 EXT_Vdd OUT1 0.1uF 10nF IS O8200BQ 2.2uF S MBJ 5.0A-TR RED LED con6-2x3-s trip-ma le 0.1uF... -
Page 10: Bill Of Materials
UM3184 Bill of materials Bill of materials Table 5. X-NUCLEO-OUT01A2 bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code CAP CER C1 C2 C3 C4 Wurth 10nF 10000PF 50V 885382206002 C5 C6 C7 C8 Electronics Inc. X7R 0603... - Page 11 UM3184 Bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code LED GREEN D3 D4 D5 D6 Wurth 150060VS7500 LED GREEN CLEAR 0603 D7 D8 D9 D10 Electronics Inc. LED RED Wurth 150060RS7500 RED LED CLEAR 0603 Electronics Inc. TVS DIODE ESDA7P60-1U1 STMicroelectron...
- Page 12 UM3184 Bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code SW1 SW28 SW29 SW30 CONN SW31 SW32 Würth con3-strip-male HEADER .100 61300311121 SW33 SW34 Elektronik STR 3POS SW35 SW36 SW37 TEST POINT Keystone 5001 PC MINI .040"D 5001 Electronics BLACK Galvanic...
-
Page 13: Board Versions
X-NUCLEO-OUT01A2 versions PCB version Schematic diagrams Bill of materials X$NUCLEO-OUT01A2 X$NUCLEO-OUT01A2 schematic diagrams X$NUCLEO-OUT01A2 bill of materials 1. This code identifies the X-NUCLEO-OUT01A2 evaluation board first version. It is printed on the board PCB. UM3184 - Rev 1 page 13/20... -
Page 14: Regulatory Compliance Information
UM3184 Regulatory compliance information Regulatory compliance information Notice for US Federal Communication Commission (FCC) For evaluation only; not FCC approved for resale FCC NOTICE - This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product. -
Page 15: References
UM3184 References References Freely available on www.st.com: • ISO8200BQ datasheet • UM3035: "Getting started with X-CUBE-IPS industrial digital output software for STM32 Nucleo" • NUCLEO-F401RE documentation • NUCLEO-G431RB documentation UM3184 - Rev 1 page 15/20... -
Page 16: Revision History
UM3184 Revision history Table 7. Document revision history Date Revision Changes 04-Jul-2023 Initial release. UM3184 - Rev 1 page 16/20... -
Page 17: Table Of Contents
UM3184 Contents Contents Getting started ..............2 Overview . -
Page 18: List Of Tables
X-NUCLEO-OUT01A2 bill of materials ........ -
Page 19: List Of Figures
X-NUCLEO-OUT01A2 expansion board: digital interface section ....... . . 4... - Page 20 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
