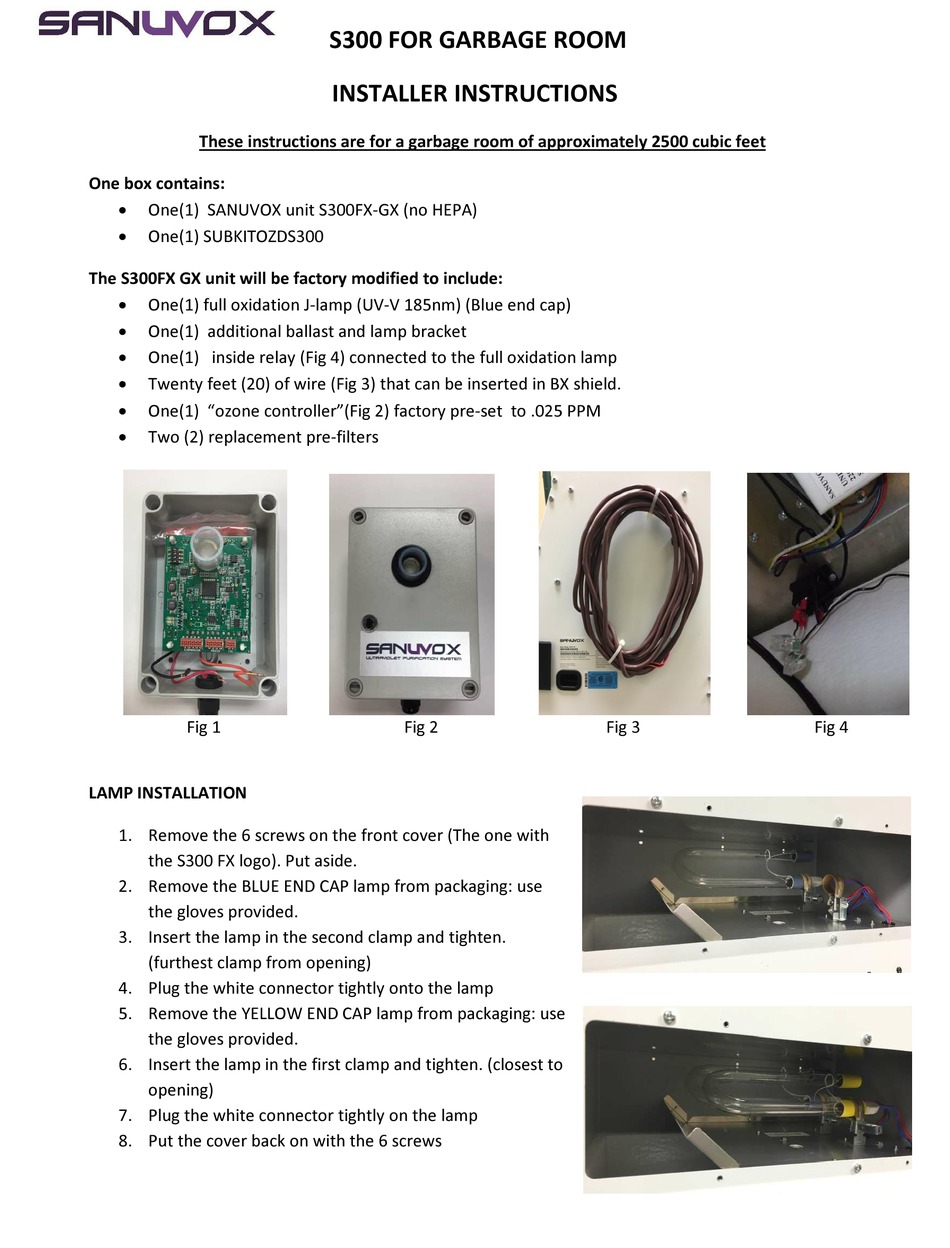

Fig 4 LAMP INSTALLATION 1. Remove the 6 screws on the front cover (The one with the S300 FX logo). Put aside. 2. Remove the BLUE END CAP lamp from packaging: use the gloves provided. 3. Insert the lamp in the second clamp and tighten.
Page 2
The ozone controller (Fig 2) could be installed on the wall, at 60 inches from the floor and positioned under the exhaust. The S300 unit comes with 20ft of wire (Fig3) to link the controller box to the unit. If 20 ft is not long enough, you can replace it with BX wiring with 3 wires.
Page 3
Do not interchange lamps as the blue end cap lamp works only with the VOC sensor. o LMPHGXJ105- Dual zone lamp (yellow end cap) change every 2 years o LMPHXJ105- All oxidation lamp (blue end cap) change every year 3-5 YEARS: recalibration of the ozone detector – contact SANUVOX ...
Page 4
Powered through the 20 ft wiring, it is also connected to a relay in the unit activating an all ozone second lamp. The S300 FX unit runs constantly, so the regular UV lamp is on all the time, purifying the air. ...
