Sanuvox S300 Installer's Instructions

Ozd for garbage room
Hide thumbs Also See for S300:
1
2
3
4

Advertisement

Table of Contents

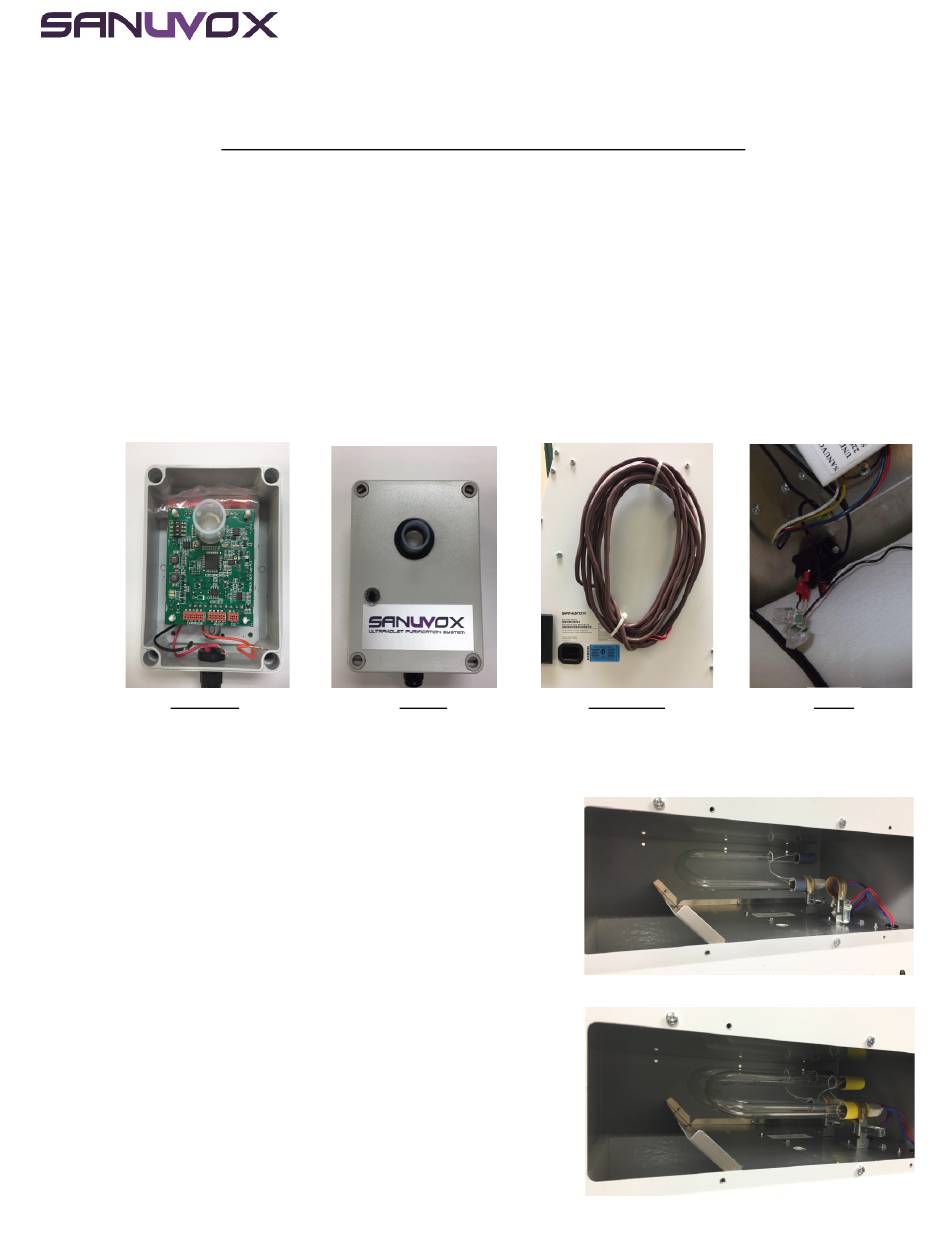

These instructions are for a garbage room of less than 2400 cubic feet

Box contains:

•
One (1) S300 VOC unit that includes:
o One (1) ''J'' lamp UVC/UVV with yellow tips (part LMPHGXJ105-1 2'' exposé)
o One (1) ''J'' lamp all UVV with blue tips (part LMPHXJ105)
o Two (2) Multi voltage ballasts (part BST120/277GL) and 2 lamp-holding brackets
o One (1) Relay (part MSCELC16) connected to the all UVV lamp
o Twenty (20) feet of wire that can be inserted in BX shield.
o One (1) OZD controller (part MSC12) factory's pre-set
•
Two (2) replacement pre-filters (part MSCFTR10)
Controller

LAMP INSTALLATION

1. Remove the 6 screws on the front cover (The one with
the SANUVOX logo). Put aside.
2. Remove the BLUE END CAP lamp from packaging. Use
the gloves provided.
3. Insert the lamp in the second clamp and tighten.
(furthest clamp from opening)
4.
Holding the cap with one hand, plug the white
connector tightly onto the lamp
5. Remove the YELLOW END CAP lamp from packaging. Use
the gloves provided.
6. Insert the lamp in the first clamp and tighten. (closest to
opening)
7. Holding the cap with one hand, plug the white
connector tightly on the lamp
8. Put the cover back on with the 6 screws
S300 OZD FOR GARBAGE ROOM
INSTALLER INSTRUCTIONS
Casing
Wiring 20'
Relay

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S300 and is the answer not in the manual?

Questions and answers

Related Manuals for Sanuvox S300

Summary of Contents for Sanuvox S300

  • Page 1 These instructions are for a garbage room of less than 2400 cubic feet Box contains: • One (1) S300 VOC unit that includes: o One (1) ‘’J’’ lamp UVC/UVV with yellow tips (part LMPHGXJ105-1 2’’ exposé) o One (1) ‘’J’’ lamp all UVV with blue tips (part LMPHXJ105)
  • Page 2 The OZONE controller could be installed on the wall, at 60 inches from the floor and positioned under the exhaust. The S300 OZD unit comes with 20ft of wire to link the controller box to the unit. If 20 ft is not long enough, you can replace it with BX wiring with 3 wires.
  • Page 3 Do not interchange the lamps as the blue end cap lamp works only with the VOC controller. o LMPHGXJ105-1 lamp UVC/UVV 2’’ exposed (yellow end cap) o LMPHXJ105 lamp all UVV (blue end cap) • 3-5 YEARS: recalibration of the ozone detector – contact SANUVOX!
  • Page 4 Powered through the 20 ft wiring, it is also connected to a relay in the unit activating an all ozone second lamp. • The S300 OZD unit runs constantly, so the UVC/UVV lamp is on all the time, purifying the air. Simultaneously, the controller samples the air every minute. LED=GREEN flashing If the measured ozone level is: o Less than 0.025ppm, it triggers on the ozone lamp, thus producing oxidiser to lower the...
