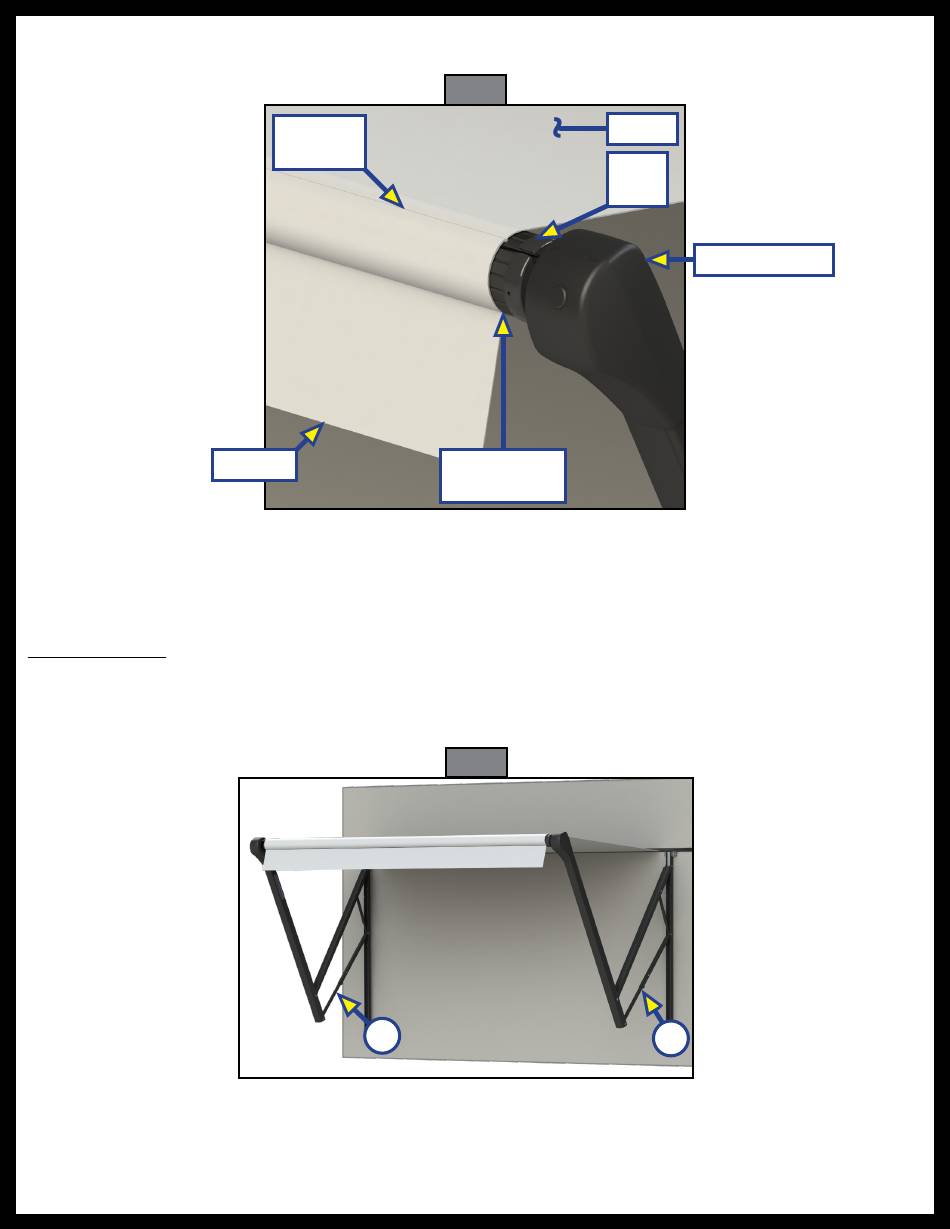

NOTE: Extension is considered complete when the fabric is completely unrolled, the valance polycord is
visible and a section of the roll tube is exposed. (Fig. 2).
NOTE: The awning fabric should always be above the roll tube. However, if the EXTEND switch is engaged
too long or EXTEND is hit inadvertently instead of RETRACT, the awning will roll up backward. This
is not a defect. To correct the fabric orientation, press the RETRACT button. The awning will then
extend to its correct orientation and normal operation can resume.

Adjusting Pitch

Pitch can be set by adjusting one of the sliding pitch arms (Fig. 3A) to tip one side of the awning to allow
water runoff.
1. Choose the side of the awning for optimum shade or convenient water runoff.
Rev: 07.24.19
Fabric
Polycord
Valance
A
Fig. 2
Fabric
Roll
Tube
Exposed Roll
Tube Section
Fig. 3
Page 4
Awning Head
A
