SOLERA
Purpose
This document describes the procedure to replace the idler and/or drive head assemblies for the Solera Classic

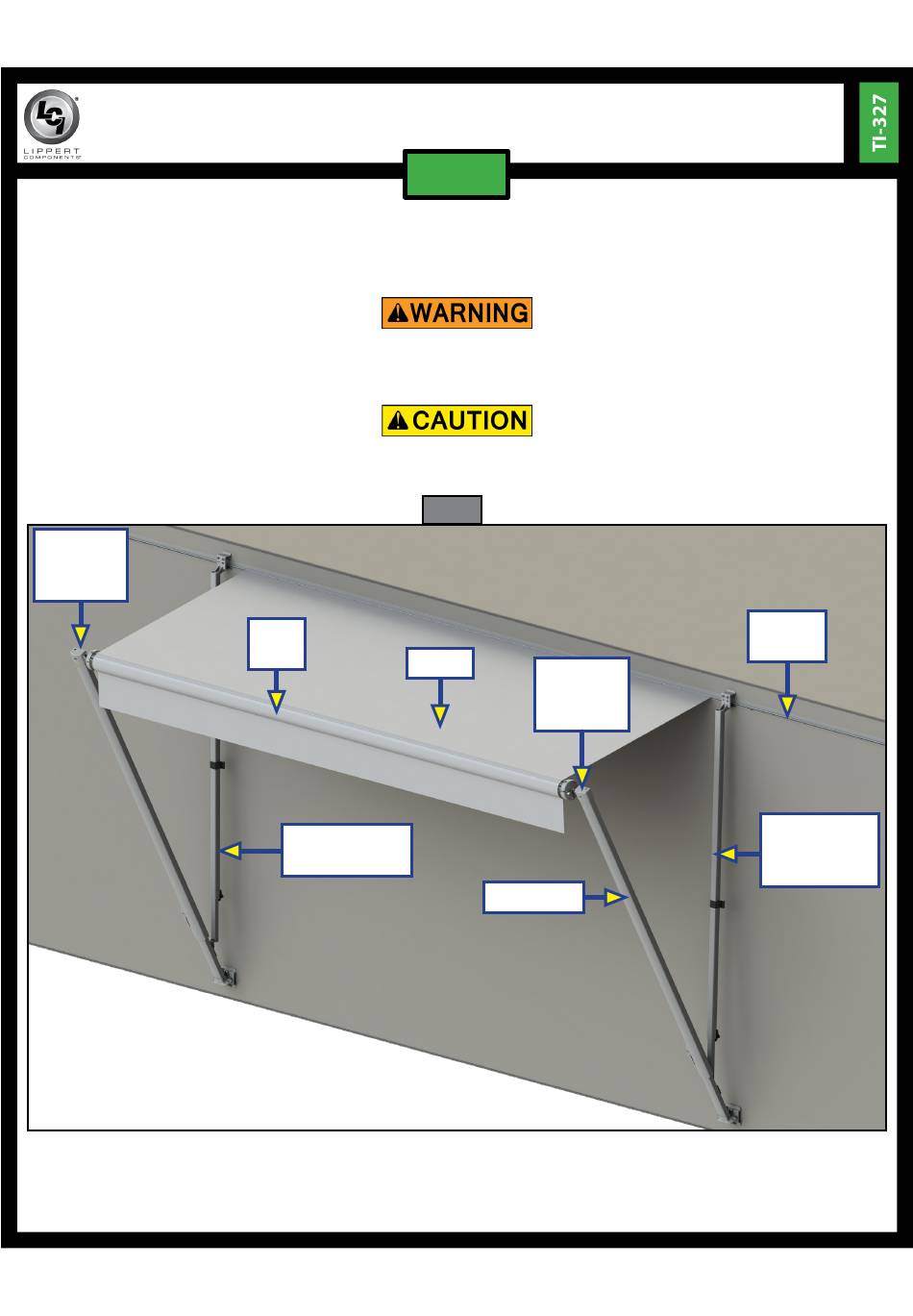

Awning. Figure 1 callouts describe the various names of the parts and assemblies used in the instructions.
Always wear eye protection when performing service or maintenance to the unit. Other safety
equipment to consider includes hearing protection, gloves and possibly a full face shield,
Idler
Head
Assembly
Rev: 08.01.19
CLASSIC AWNING HEAD REPLACEMENT
®
depending on the nature of the service.
Moving parts can pinch, crush or cut. Keep clear and use caution.
Roll
Tube
Idler Support
Arm Assembly
AWNINGS
Fig. 1
Fabric
Drive
Head
Assembly
Outer Arm
Page 1
Awning
Rail
Drive
Support Arm
Assembly
CCD-0002738
