Adjusting Pitch - All Solera Awnings

Note: The awning will pitch itself to purge the pooling of excess water and may dump a significant
amount of water without notice.
1. Pitch can be set by adjusting the articulating arm to tip one side of the awning to allow water runoff.
2.
Extend the awning to desired position.
3.
Choose the side of the awning for optimum shade or convenient water runoff. Pull downward on the
joint of the articulating arm until desired pitch is set (Fig. 5) to allow for water runoff. Do not push the
joints of the articulating arms up. This will put tension on the gas strut, which can cause the strut to
break. Belleville washers and bolt (Fig. 6A) allow the joint to remain in the position set by the operator.
Note: The awning can be retracted without resetting the pitch.
Note: If the articulating arm does not hold position, it can be tightened by adjusting the bolt (Fig. 6A) in
the center of the articulating arm.
Rev: 02.26.20

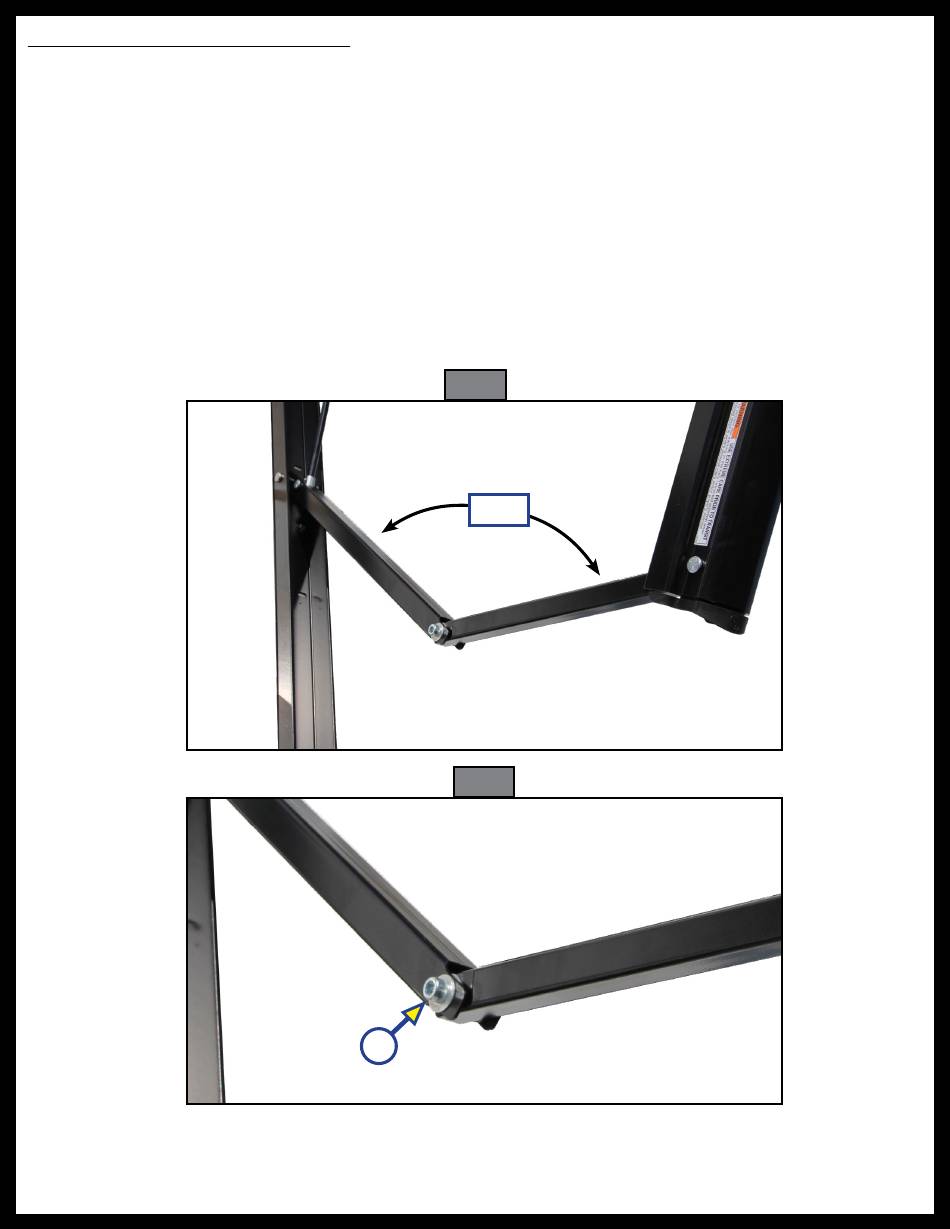

Fig. 5
Pitch
Fig. 6
A
Page 5
