Raising and Lowering the
Seat Assembly

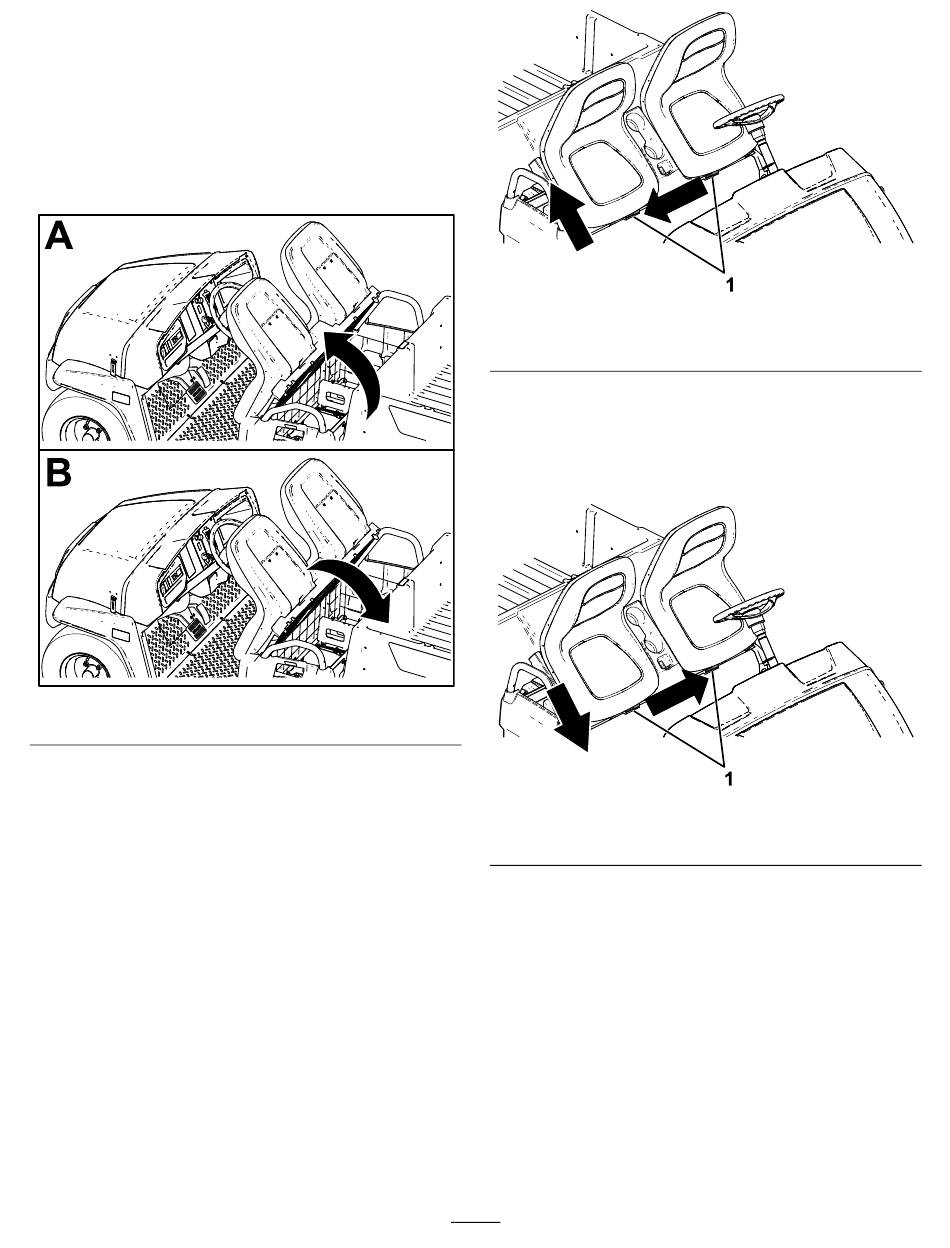

To raise the seat assembly, push the seat assembly
forward until it rests on the steering wheel
To lower the seat assembly, push the seat assembly
rearward until it seats back into the original position
(Figure 29).
Figure 29

Removing a Bucket Seat

1. Push the seat assembly forward to the raised
position (Figure 29).
2. Slide the seat assembly to the side out of the
pins, and lift the seat assembly upward
30).
(Figure 29).
1. Pins

Installing a Bucket Seat

Slide the seat assembly onto the pins and lower the
seat assembly
g190066
1. Pins
(Figure

Removing a Bench Cushion

1. Push the bench cushion forward to the raised
position.
2. Slide the cushion to the side, out of the pins, and
lift the cushion upward
32
Figure 30
(Figure 31).
Figure 31
(Figure 32).
g190187
g190186
