Display

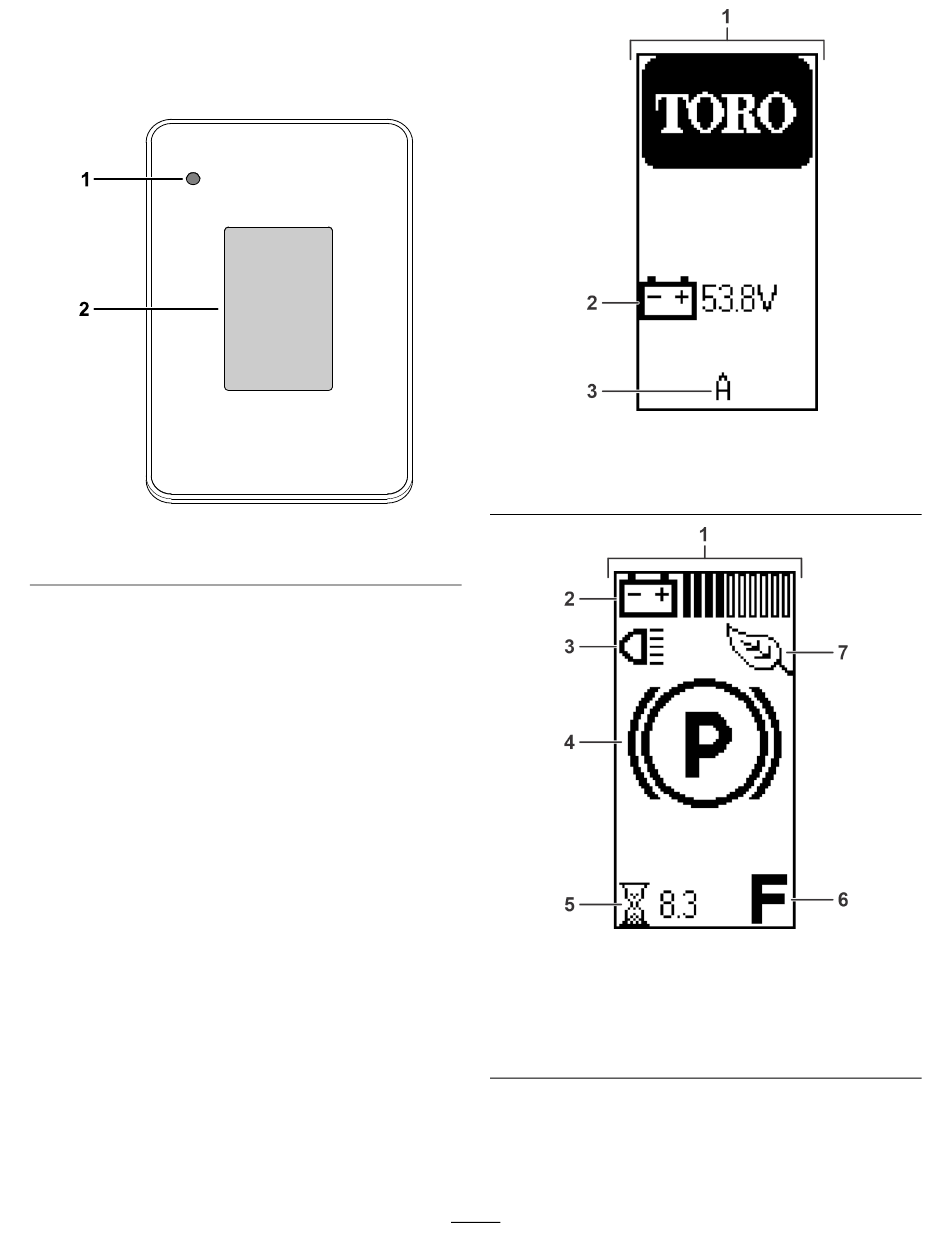

The display shows information about your machine,
such as the operating status, various diagnostics, and
other information about the machine
1. Indicator light
There is a startup screen, run screen, and charging
screen on the display
Figure 12).
Figure 11 shows what you may see on the display
when you run the machine. The startup screen
displays for a few seconds after you turn the key to
the O position, then the run screen displays.
N
(Figure 9).
Figure 9
2. Display
(Figure 10, Figure 11, and
1. Startup screen
2. Battery voltage
g320256
1. Run screen
2. Battery charge
3. Lights—On
4. Parking brake is engaged.
12
Figure 10
3. Software revision
Figure 11
5. Hours operated
6. Direction
7. Eco Mode
g321175
g321176
