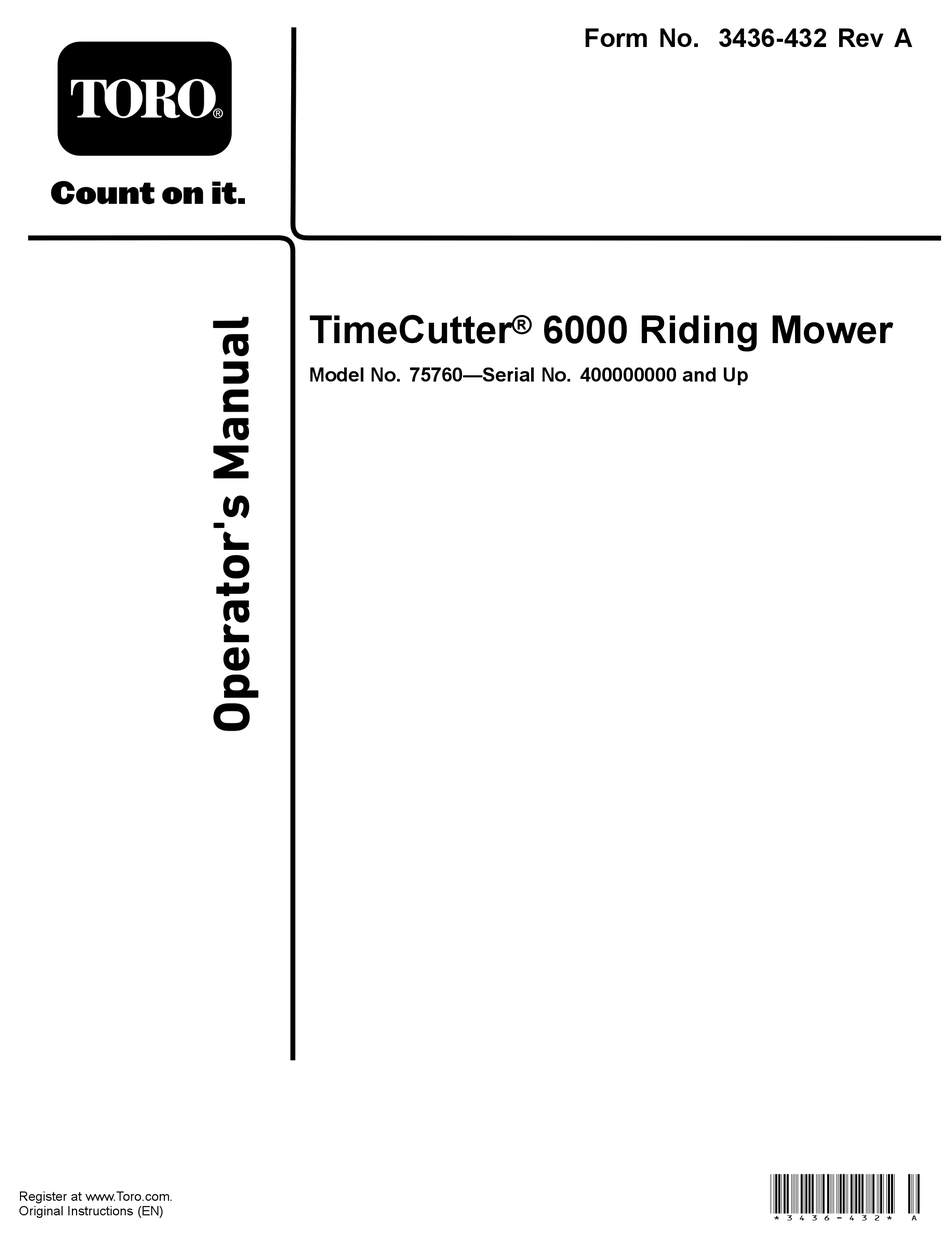

- Page 1 Form No. 3436-432 Rev A TimeCutter ® 6000 Riding Mower Model No. 75760—Serial No. 400000000 and Up *3436-432* A Register at www.Toro.com. Original Instructions (EN)
- Page 2 You are responsible for operating the product properly and safely. Important: If you are using a machine with a Toro engine above 1500 m (5,000 ft) for a continuous Visit www.Toro.com for product safety and operation...
-
Page 3: Table Of Contents
Contents accidents. This symbol will appear with the word Danger, Warning, or Caution. • Danger indicates an imminently hazardous Safety ............... 4 situation which, if not avoided, will result in death General Safety ........... 4 or serious injury. Slope Indicator ........... 5 Safety and Instructional Decals ...... -
Page 4: Safety
Safety Belt Maintenance ..........36 Inspecting the Belts .......... 36 Replacing the Mower Belt ......... 36 The following instructions are from ANSI standard Mower Maintenance..........37 B71.1-2017. Blade Safety ............. 37 Servicing the Cutting Blades ......37 Leveling the Mower Deck........39 General Safety Removing the Mower Deck....... -
Page 5: Slope Indicator
Slope Indicator g011841 Figure 4 You may copy this page for personal use. 1. The maximum slope you can operate the machine on is 15 degrees. Use the slope chart to determine the degree of slope of hills before operating. Do not operate this machine on a slope greater than 15 degrees. Fold along the appropriate line to match the recommended slope. -
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decalbatterysymbols Battery Symbols Some or all of these symbols are on your battery. 1. - Page 7 decal138-2456 138-2456 1. Read the Operator’s 3. Do not overfill the fuel Manual. tank. 2. Park the machine on a level surface when filling the fuel tank. decal121-2989b 121-2989 1. Bypass lever position for 2. Bypass lever position for pushing the machine operating the machine decal139-2388 decal131-1097...
- Page 8 decal139-2395 139-2395 1. Parking brake 4. Neutral 2. Fast 5. Reverse 3. Slow 6. Traction controls decal139-5892 139-5892 1. Height of cut decal140-2717 140-2717 1. Fast 2. Slow decal135-3295 135-3295 Note: This machine complies with the industry standard stability test in the static lateral and longitudinal tests with the maximum recommended slope indicated on the decal.
-
Page 9: Product Overview
Product Overview g298849 Figure 5 1. Deck-lift pedal 4. Motion-control levers 7. Engine 10. Front caster wheel 2. Height-of-cut pin 5. Control panel 8. Fuel-tank cap 11. Deflector 3. Smart Speed™ lever 6. Operator seat 9. Anti-scalp roller... -
Page 10: Controls
Controls Motion-Control Levers Use the motion-control levers to drive the machine Become familiar with all the controls before you start forward, reverse, and turn either direction (Figure the engine and operate the machine. Park Position Control Panel Move the motion-control levers outward from the center to the P position when exiting the machine (Figure... -
Page 11: Before Operation
Contact machine from the normal operating position. your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all Before Operation approved attachments and accessories. To ensure optimum performance and continued safety... -
Page 12: Adding Fuel
Fuel Safety compartment to help prevent fires. Clean up oil or fuel spills. • Fuel is extremely flammable and highly explosive. A fire or explosion from fuel can burn you and others and can damage property. Adding Fuel – To prevent a static charge from igniting the fuel, place the container and/or machine directly on Recommended Fuel the ground before filling, not in a vehicle or on... -
Page 13: Performing Daily Maintenance
Understanding the Safety-Interlock System The safety-interlock system is designed to prevent the engine from starting unless: • The blade-control switch (PTO) is disengaged. • The motion-control levers are in the P position. The safety-interlock system also is designed to shut off the engine whenever the control levers are out of the P position and you rise from the seat. -
Page 14: Positioning The Seat
Positioning the Seat Adjusting the Motion-Control Levers The seat can move forward and backward. Position the seat where you have the best control of the machine and are most comfortable (Figure Adjusting the Height You can adjust the motion-control levers higher or lower for maximum comfort (Figure 10). -
Page 15: During Operation
• Use only accessories and attachments approved operating position. When you turn the key to the by Toro. OFF position, the engine should shut off and the • This machine produces sound levels in excess blade should stop. - Page 16 • • Keep children out of the operating area and under Remove or mark obstacles such as ditches, holes, the watchful care of a responsible adult other than ruts, bumps, rocks, or other hidden hazards. Tall the operator. grass can hide obstacles. Uneven terrain could overturn the machine.
-
Page 17: Operating The Mower Blade-Control Switch (Pto)
Disengaging the Blade-Control • The stopping distance may increase with the weight of a towed load. Travel slowly and allow Switch (PTO) extra distance to stop. • Make wide turns to keep the attachment clear of the machine. Operating the Mower Blade-Control Switch (PTO) g009174 The blade-control switch (PTO) starts and stops the... -
Page 18: Operating The Choke
Operating the Choke Starting the Engine Use the choke to start a cold engine. Note: A warm or hot engine may not require choking. Pull up the choke knob to engage the choke Important: Do not engage the starter for more before using the key switch (Figure 17). -
Page 19: Using The Motion-Control Levers
Driving the Machine CAUTION Children or bystanders may be injured if they The drive wheels turn independently, powered by move or attempt to operate the machine while hydraulic motors on each axle. You can turn 1 side it is unattended. in reverse while you turn the other forward, causing the machine to spin rather than turn. -
Page 20: Using The Smart Speed Tm Control System
Driving Backward Move the motion-control levers to neutral and outward to the P position. Move the levers to the center, unlocked position. Disengage the blade-control switch. To go backward, slowly pull the motion-control Adjust the lever to the desired position. levers rearward (Figure 21). -
Page 21: Using The Side Discharge
Using the Side Discharge Adjusting the Height of Cut The machine is equipped with a foot pedal deck-lift The mower has a hinged grass deflector that disperses clippings to the side and down toward the system. You can use the foot pedal to lift the deck turf. -
Page 22: Operating Tips
It is best to cut only about a third of the grass blade. damaged or worn, replace it immediately with a Cutting more than that is not recommended unless genuine Toro replacement blade. grass is sparse, or it is late fall when grass grows more slowly. -
Page 23: After Operation
After Operation Turn the ignition key on and disengage the parking brake by moving 1 motion-control lever out of the P position. After Operation Safety Note: Do not start the machine. General Safety • Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operator’s position. -
Page 24: Maintenance
• To ensure optimum performance, use only • Carefully release pressure from components with genuine Toro replacement parts and accessories. stored energy. Replacement parts and accessories made by • Check the parking brake operation frequently. -
Page 25: Pre-Maintenance Procedures
Maintenance Service Maintenance Procedure Interval • Check and adjust the valve clearance. Contact an Authorized Service Dealer. Every 300 hours • Charge the battery and disconnect the battery cables. • Perform all maintenance procedures listed above before storage. Before storage •... -
Page 26: Engine Maintenance
Engine Maintenance Engine Safety • Keep your hands, feet, face, clothing, and other body parts away from the muffler and other hot surfaces. Allow engine components to cool before performing maintenance. • Do not change the engine governor speed or overspeed the engine. - Page 27 Servicing the Foam Air-Cleaner Installing the Air Cleaner Element Install the foam element over the paper element. Service Interval: Every 25 hours/Monthly (whichever Note: Ensure that you do not damage the comes first)—Clean the air-cleaner elements. foam element (more often in dusty, Align the holes of the filter into the manifold dirty conditions).
-
Page 28: Servicing The Engine Oil
Servicing the Engine Oil Engine-Oil Specifications Oil Type: Detergent oil (API service SF, SG, SH, SJ, or SL) Crankcase Capacity: 2.4 L (81 fl oz) with oil filter Viscosity: See the table below. g029683 Figure 31 Checking the Engine-Oil Level Service Interval: Before each use or daily Note: Check the oil when the engine is cold. - Page 29 Change the engine-oil filter (Figure 34). Note: Ensure that the oil-filter gasket touches the engine and then turn the filter an extra 3/4 turn. g027799 g027477 Figure 34 Slowly pour approximately 80% of the specified oil into the filler tube and slowly add the additional oil to bring it to the Full mark (Figure 35).
-
Page 30: Servicing The Spark Plug
g027478 Figure 36 Checking the Spark Plug Important: Do not clean the spark plug(s). Always replace the spark plug(s) when it has a black coating, worn electrodes, an oily film, or cracks. If you see light brown or gray on the insulator, the engine is operating properly. -
Page 31: Cleaning The Cooling System
Cleaning the Cooling Fuel System System Maintenance Park the machine on a level surface, disengage the blade-control switch, and move the DANGER motion-control levers outward to the P In certain conditions, fuel is extremely position. flammable and highly explosive. A fire or Shut off the engine, remove the key, and wait explosion from fuel can burn you and others for all moving parts to stop before leaving the... -
Page 32: Electrical System Maintenance
Electrical System Maintenance Electrical System Safety • Disconnect the battery before repairing the g027939 machine. Disconnect the negative terminal first and the positive last. Connect the positive terminal first and the negative last. • Charge the battery in an open, well-ventilated area, away from sparks and flames. - Page 33 Charging the Battery WARNING Incorrectly removing the cables from Service Interval: Before storage—Charge the battery and disconnect the battery cables. battery could damage the machine and cables, causing sparks. Sparks can Remove the battery from the chassis; refer to cause the battery gasses to explode, Removing the Battery (page 32).
-
Page 34: Servicing The Fuses
Servicing the Fuses Drive System Maintenance The electrical system is protected by fuses. It requires no maintenance; however, if a fuse blows, check the component/circuit for a malfunction or short. Checking the Tire Pressure Fuse type: • Main—F1 (25 A, blade-type) Service Interval: Every 25 hours—Check tire pressure. -
Page 35: Releasing The Electric Brake
Releasing the Electric Rotate the bolt to decrease the speed for that particular wheel. Brake Note: Rotate the bolt a small amount to make You can manually release the electric brake by minor adjustments. rotating the link arms forward. Once the electric brake is energized, the brake resets. -
Page 36: Belt Maintenance
Route the new belt around the engine pulley and mower pulleys (Figure 48). Using a spring-removal tool (Toro Part No. 92-5771), install the idler spring over the deck hook and place tension on the idler pulley and the mower belt (Figure 48). -
Page 37: Mower Maintenance
Mower Maintenance Blade Safety • Inspect the blades periodically for wear or damage. • Use care when checking the blades. Wrap the blades or wear gloves, and use caution when servicing the blades. Only replace or sharpen the g006530 blades; never straighten or weld them. Figure 49 •... - Page 38 g014973 g014973 Figure 51 Figure 53 1. Blade (in position for measuring) 1. Opposite blade edge (in position for measuring) 2. Level surface 2. Level surface 3. Measured distance between blade and the surface (A) 3. Second measured distance between blade and surface (B) Rotate the same blade 180 degrees so that If the difference between A and B is greater the opposing cutting edge is now in the same...
-
Page 39: Leveling The Mower Deck
Installing the Blades Install the blade onto the spindle shaft (Figure 54). Important: The curved part of the blade must be pointing upward toward the inside of the mower to ensure proper cutting. Install the curved washer (cupped side toward the blade) and the blade bolt (Figure 54). - Page 40 g007202 g007199 Figure 57 Figure 58 1. Blades side to side 3. Measure from the tip of the 1. Blades front to rear 3. Measure from the tip of the blade to the flat surface blade to the flat surface here.
-
Page 41: Removing The Mower Deck
Loosen the adjustment bolts on all 4 corners so that the deck is sitting securely on all 4 blocks (Figure 60). g299079 Figure 61 1. Nut 3. Shoulder bolt 2. Pivot pan At all 4 corners of the deck, remove the hairpin cotter and washer from the deck pin (Figure 62). -
Page 42: Installing The Mower
Installing the Mower Park the machine on a level surface, disengage the blade-control switch (PTO), and move the motion-control levers outward to the P position.. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position. -
Page 43: Cleaning
Cleaning Disengage the blade-control switch, shut off the engine, remove the key, and wait for all moving parts to stop. Washing the Underside of Turn the water off and remove the coupling from the washout fitting. the Mower Deck Note: If the mower is not clean after 1 washing, Service Interval: After each use—Clean the soak it and let it stand for 30 minutes. -
Page 44: Storage
Storage Check the condition of the blades; refer to Inspecting the Blades (page 37). Prepare the machine for storage for over Storage Safety 30 days as follows: • Shut off the engine, remove the key, and wait Add fuel stabilizer/conditioner to fresh fuel for all moving parts to stop before you leave the in the tank. -
Page 45: Storing The Battery
Storing the Battery Fully charge the battery. Let the battery rest for 24 hours, then check the battery voltage. Note: If the battery voltage is below 12.6 V, repeat steps and 2. Disconnect the cables from the battery. Check the voltage periodically to ensure that the voltage is 12.4 V or higher. -
Page 46: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action The fuel tank is showing signs of collapsing 1. The air-cleaner paper element clogged. 1. Clean the paper element. or the machine is frequently showing signs of running out of fuel. The engine overheats. 1. - Page 47 Problem Possible Cause Corrective Action The machine does not drive. 1. The bypass valves are open. 1. Close the tow valves. 2. The traction belts are worn, loose, or 2. Contact an Authorized Service Dealer. broken. 3. The traction belts are off the pulleys. 3.
-
Page 48: Schematics
Schematics g296585 Electrical Diagram (Rev. A)
