Electrical Connection - LIFE home integration CT2 24 UNI DL Instructions And Warnings For Installation, Use And Maintenance

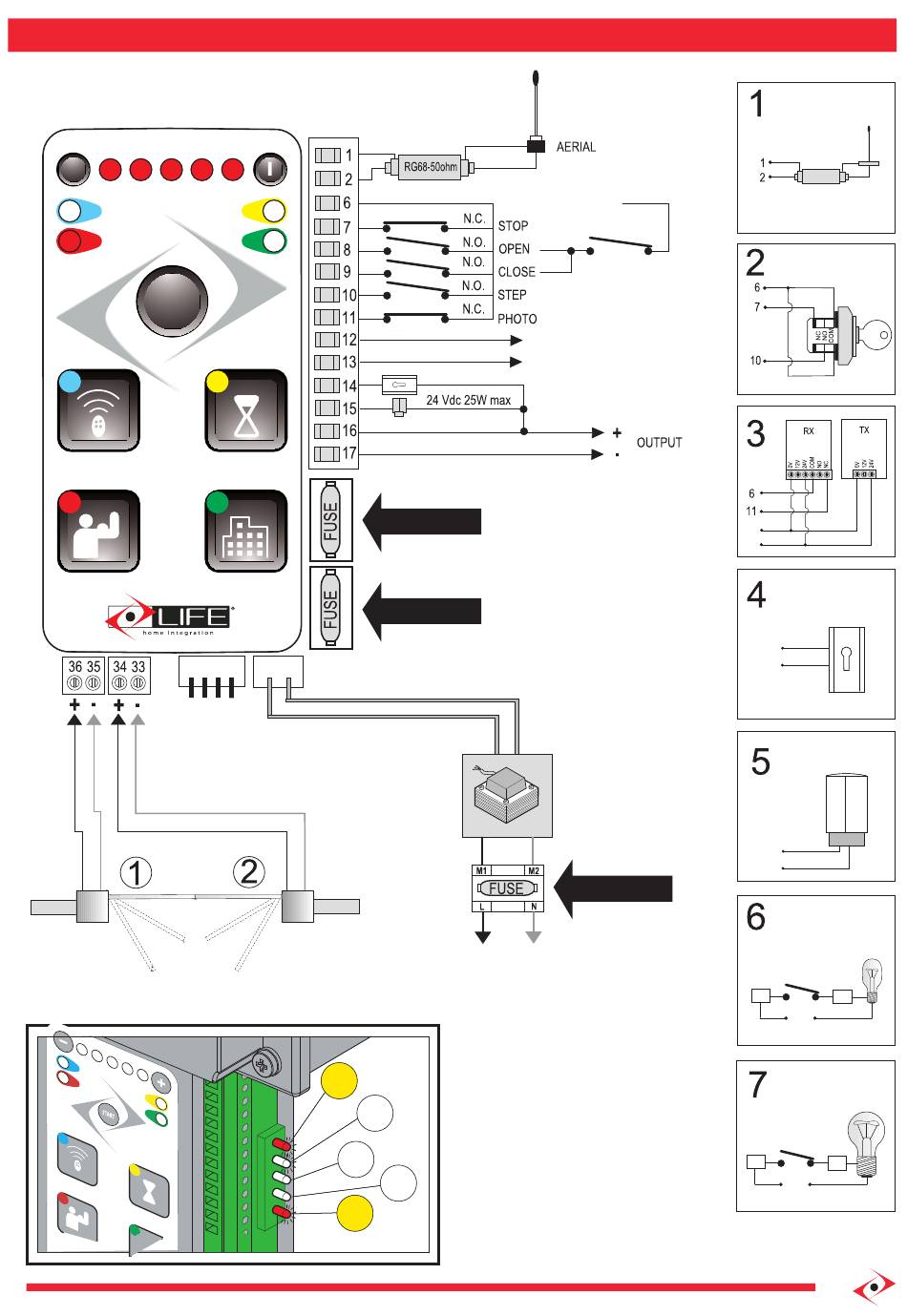

ELECTRICAL CONNECTION

-
START
CONN2
AGECH2
-
30 Vdc 200mA Max
F3 3.15A-T
F2 10A-T
CONN1
24 Vac
L7 L7
L8 L8
L9 L9
L10 L10
L11 L11
COMMON COMMANDS
PEDESTRIAN
N.O.
INDICATOR LIGHT N.6
Relè 3A
Relay
COURTESY LIGHT N.7
COM.
12 Vdc 15 VA
ELECTRIC LOCK
FLASHING
F1 3.15A-T
230Vac
SIGNALS LED
SIGNALING LED
The leds under the terminal block The LEDs under the terminal block
indicate the state of the entrance.
show the entry state .
L7 and L11 are imputs N.C and must
L7 and L11 are N.C. inputs and they
be turned on , they turn o when
must be turned on, they turn off when
the corresponding imput is activated
the corresponding entrance is activated.
L8-L9-L10 are imputs N.O. must be
turned o and they will automatically
L8 - L9 - L10 are N.O. inputs
turn on when the corresponding
they must be off, they turn on
imput is activated
when the corresponding entrance
is activated.
17
16
ELECTRIC LOCK
14
16
FLASHING
15
16
INDICATOR LIGHT
DEFAULT
13
12
POWER POWER
COURTESY LIGHT
OPTIONS N.2
Led 2 On
13
12
POWER POWER
5
