LIFE home integration RG1R 24 DL Installation, Use And Maintenance Instructions
Control unit for automations fitted with 24 v motors
Hide thumbs
Also See for RG1R 24 DL:
Related Manuals for LIFE home integration RG1R 24 DL
Summary of Contents for LIFE home integration RG1R 24 DL

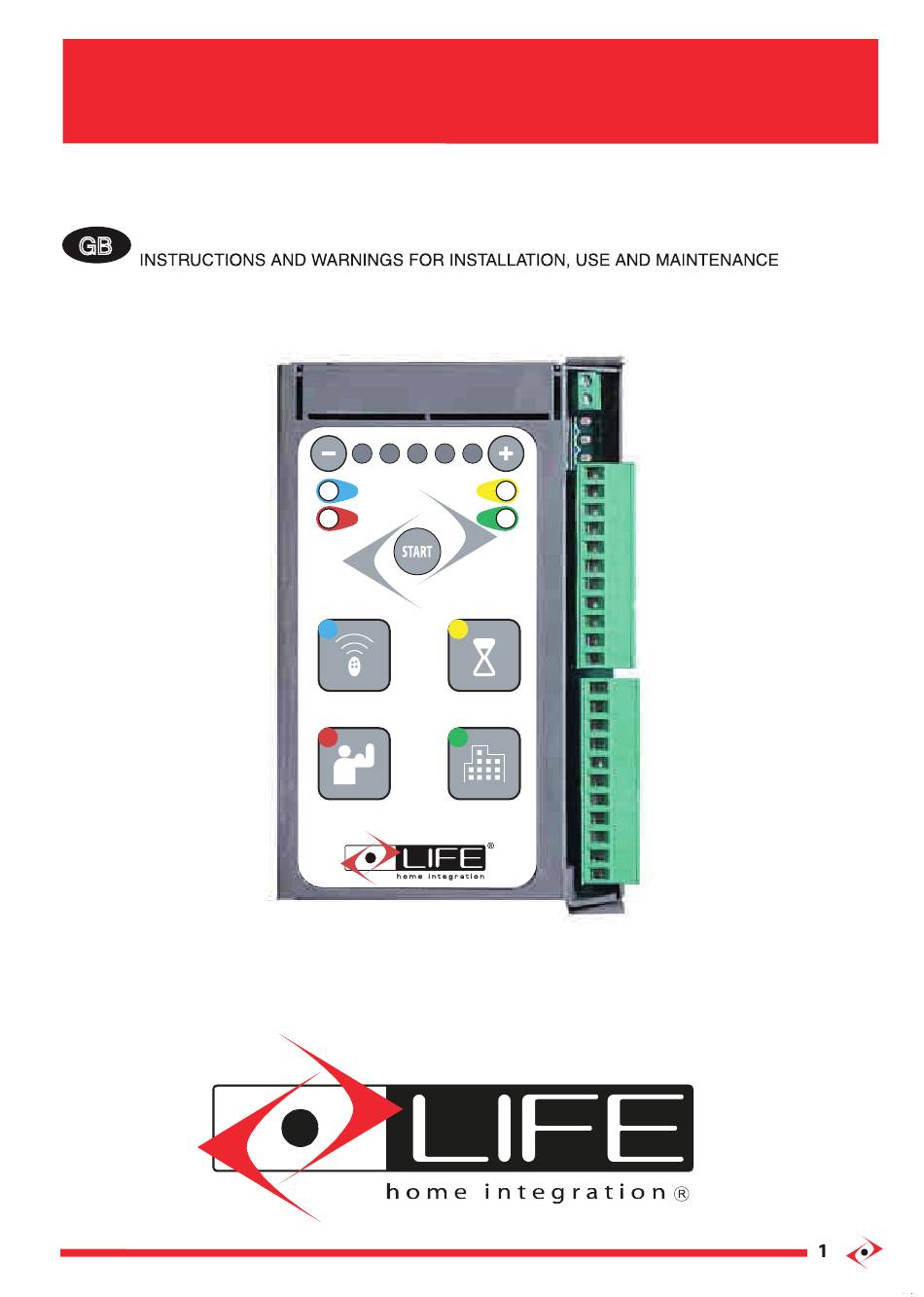

- Page 1 RG1R 24 DL CONTROL UNIT FOR AUTOMATIONS FITTED WITH 24 V MOTORS. Rev. 01 - 05/2011 LG...
- Page 2 CONNECTIONS ALIMENTAZIONE TRASFORMATORE 230 Vac 50 Hz CONVERTER POWER SUPPLY Terminals Description (SEE WIRING DIAGRAM on page 3) AERIAL: aerial sheath input Use a RG58- 50ohm cable. AERIAL: aerial sheath input COMMAND AND PHOTOCELL COMMON: for stop, open, close, step, photo and +12V inputs. STOP: programmable NC input, commands gate stoppage.
- Page 3 RG1R 24DL SKANT - SKANX AERIAL RG58-50ohm COMMOMN COMMANDS COMMANDS COMMON COMMON COMMANDS N.C. STOP N.O. OPEN N.O. CLOSE N.O. STEP N.C. FOTO INDICATOR LIGHT 24 Vdc 3W max 24 Vdc 25W max FLASHING OUTPUT dc 200 mA max OUTPUT ac 200 mA max COMMON COMMANDS OPEN...
-
Page 4: Programming The Control Unit
To optimize energy consumption, we have introduced the Energy Saving function. After 10 minutes from the control unit setup, the front panel LEDs turn off and the use of the keyboard is inhibited. To reactivate it, it is necessary to switch the control unit off and on again. ATTENTION 230V 230V... - Page 5 RADIO CONTROL IDENTIFICATION REMOTE CONTROL MANAGEMENT The control unit is fitted with a built-in radio receiver with a 1000 code memory and 2 channels with a 433.92 MHz frequency with LIFE Rolling Code and Auto code encoding. PROGRAMMING RADIO TRANSMITTERS REMOTE LEARNING TOTAL OPENING Press the key fob selection button (top left);...
- Page 6 OPTIONS SETTING Automatic reclosure Automatic reclosure is activated after a preset PAUSE TIME. In this mode by pressing the start button or radio transmitter the automation changes it motion as follows OPEN-PAUSE- CLOSE – PAUSE Press (top right) and the right green led switches on •...
- Page 7 Force - Press the force button (bottom left), the red led comes on. - Use the + and – buttons to adjust the force settings. The force option adjusts the thrust and the speed of the automation. - The force value is indicated by the 5 dots between – The force function regulates the thrust and the speed of the au t omation.
-
Page 8: Connection Cables
Connection cables Fitters must make the connections of the 50 Hz 230 Vac electricity supply, and the various automation devices. Connections between the control unit, motor, encoder and transformer have already been performed by the Manufacturer. • Once the connections to the control unit have been made, the Fitter must use bands to join adjacent wires into groups of 2, 3 or 4 in order to prevent them coming away from the terminal board: bands must be attached as close as possible to the terminals, no more than 10mm away, taking care not to damage wire insulation. -
Page 9: Troubleshooting
TROUBLESHOOTING This chapter lists the most common problems with solutions to fix them. In some cases, it is expressly provided that the This chapter describes the most frequently encountered problems with the solutions for resolving them. In certain cases, it is explicitly envisaged operations must be carried out by a professional installer: it is mandatory to comply with these indications to prevent that operations be performed by a professional fitter: these indications must be followed in order to avoid exposure to serious risks. -
Page 10: First Usage
TESTING AND TRIAL RUN • The testing and trial run must be performed by a COMPETENT PERSON supervised and aided by a PROFESSIONAL FITTER. It is the responsibility of the person who tests and sets up the automation (of which the control unit is a part) to perform the checks required in accordance with the risks existing and to check conformity with the relevant legislation and standards, in particular with EN standard 12445, which governs the methods for performing trials on gate automations and EN standard 12453 that specifies the performance requisites concerning safety of use. -
Page 11: General Information
SAFETY INSTRUCTIONS AND WARNINGS chapter. With the aim of improving its products, LIFE home integration reserves the right to bring about alterations to them at any time, without giving prior notice. This document conforms to the state of the automation at which it is provided when released for sale. -
Page 12: Routine Maintenance
MAINTENANCE 14.1 Maintenance instructions and warnings • Once the automation has been tested, the parameters set must not be altered. If further adjustments (e.g. alterations to the voltage value) are made, ALL THE CHECKS REQUIRED FOR • Once the automation has been tested, the parameters set must not be altered. If further adjustments (e.g. alterations to the voltage value) are made, ALL THE CHECKS REQUIRED FOR TESTING AND COMPLIANCE WITH STANDARDS MUST BE REPEATED. -
Page 13: Declaration Of Conformity
Declaration of conformity under Directive 98/37/EC, appendix II, part B (Manufacturer’s Declaration of CE Conformity) LIFE Home Integration Via S.Pertini 3/5 31014 COLLE UMBERTO (TV) declares that the following product: RG1 24DL control unit satisfies the essential requisites established in the following directives: •... - Page 14 Address: Via Sandro Pertini,3/5 31014 COLLE UMBERTO (TV) Italia Telephone: + 39 0438 388592 Telefax: + 39 0438 388593 http www.homelife.it e-mail: info@homelife.it...
