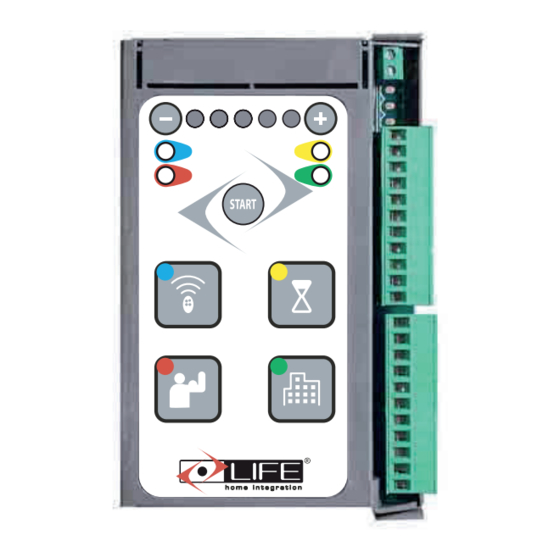

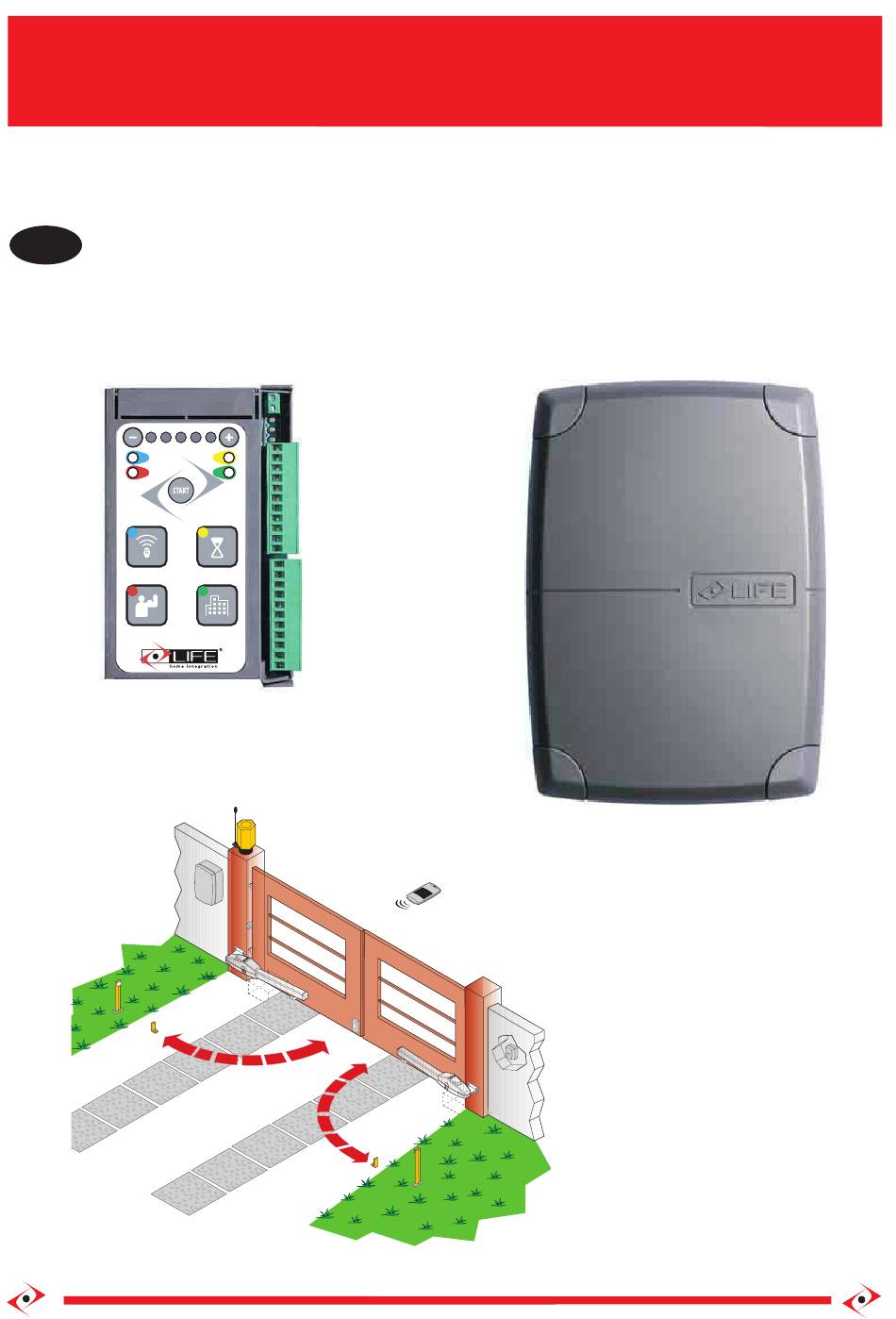

- Page 1 CT2 24 UNI DL CONTROL UNIT FOR TWO-LEAF GATES INSTRUCTIONS AND WARNINGS FOR INSTALLATION, USE AND MAINTENANCE Rev. 01 - 26/2018 LG...
- Page 2 WARNING Important safety instructions. Important Safety instructions. For personal safety it is important to follow these instructions. It is important for the safety of persons to follow all instructions. Keep these instructions. Save these instructions. The device must be disconnected from the power supply during cleaning and maintenance operations The drive shall be disconnected from its power source during cleaning, maintenance and while replacing parts.
- Page 3 GEBOX ASSEMBLY INSTRUCTIONS...
- Page 4 LINKS AND CONNECTIONS - Before proceeding with the links and connections carefully read what is presented in the PRESCRIPTIONS AND WARNINGS FOR SECURITY and PRESCRIPTIONS AND WARNINGS FOR THE INSTALLATION. - All of the linking and connecting operations must be performed with the power source disconnected , if the device is not visible a sign must be applied : “...
-
Page 5: Electrical Connection
ELECTRICAL CONNECTION COMMON COMMANDS PEDESTRIAN START N.O. INDICATOR LIGHT N.6 Relè 3A Relay COURTESY LIGHT N.7 COM. 12 Vdc 15 VA ELECTRIC LOCK FLASHING 30 Vdc 200mA Max F3 3.15A-T ELECTRIC LOCK F2 10A-T CONN2 CONN1 24 Vac AGECH2 FLASHING F1 3.15A-T INDICATOR LIGHT DEFAULT... -
Page 6: Control Unit Setup
Energy Saving In order to optimize electrical consumption To optimize energy consumption, we introduced the ES function. we have introduced the Energy After 10’ from the central Saving function. After 10 minutes programmation the Leds of the front from the control unit setup, the front panel will turn o and the keyboardwill panel LEDs turn off and the use of be deactivated. -
Page 7: Remote Learning
REMOTE GESTION REMOTE CONTROL MANAGEMENT The control unit is fitted with a built-in radio receiver with a 750 code memory and 2 channels with a The control unit is equipped with an integrated radio receiver with 750 code memory, on a frequency of 433.92 MHz frequency with LIFE Rolling Code and Auto code encoding. -
Page 8: Options Setting
REGOLATIONS AND OPTIONS OPTIONS SETTING 4.1 AUTOMATIC CLOSURE An automatic closure is activated after a set PAUSE TIME. Automatic reclosure is activated after a preset PAUSE TIME. AUTOMATIC CLOSURE a) Press the button the green right Led turns on - If none of the leds is turned on the automatic closure is not active , press the button to activate it . - Page 9 5 SPEED AND SENSIBILITY SPEED AND SENSITIVITY ADJUSTING SPEED SPEED ADJUSTMENT a) Press the button and left red led will turn on: By pressing the speed can be adjusted. LED ON SPEED MINIMUM DEFAULT MAXIMUM 100% Wait 20” or press the button again to anticipate the exit from the programming mode.
- Page 10 OPTIONS MENU 6.1 OPTIONS 1 Press the button in order to enter insde the OPTIONS MENU 1 , press in sequence the button to enter the OPTION MENU 1. then press it again in sequence to scroll through the available options.
- Page 11 MANUAL PROGRAMMING Manual programming can be done with a button connected Manual programming can be done with a button to terminals 6 - 10 (Step-by-Step) or with the previously connected to terminals 6 - 10 (Step-by-Step) or with memorized radio control, page 7 chap. 3.1. radio control previously memorized, page 7 cap.3.1.
