Summary of Contents for LIFE home integration RG1RE

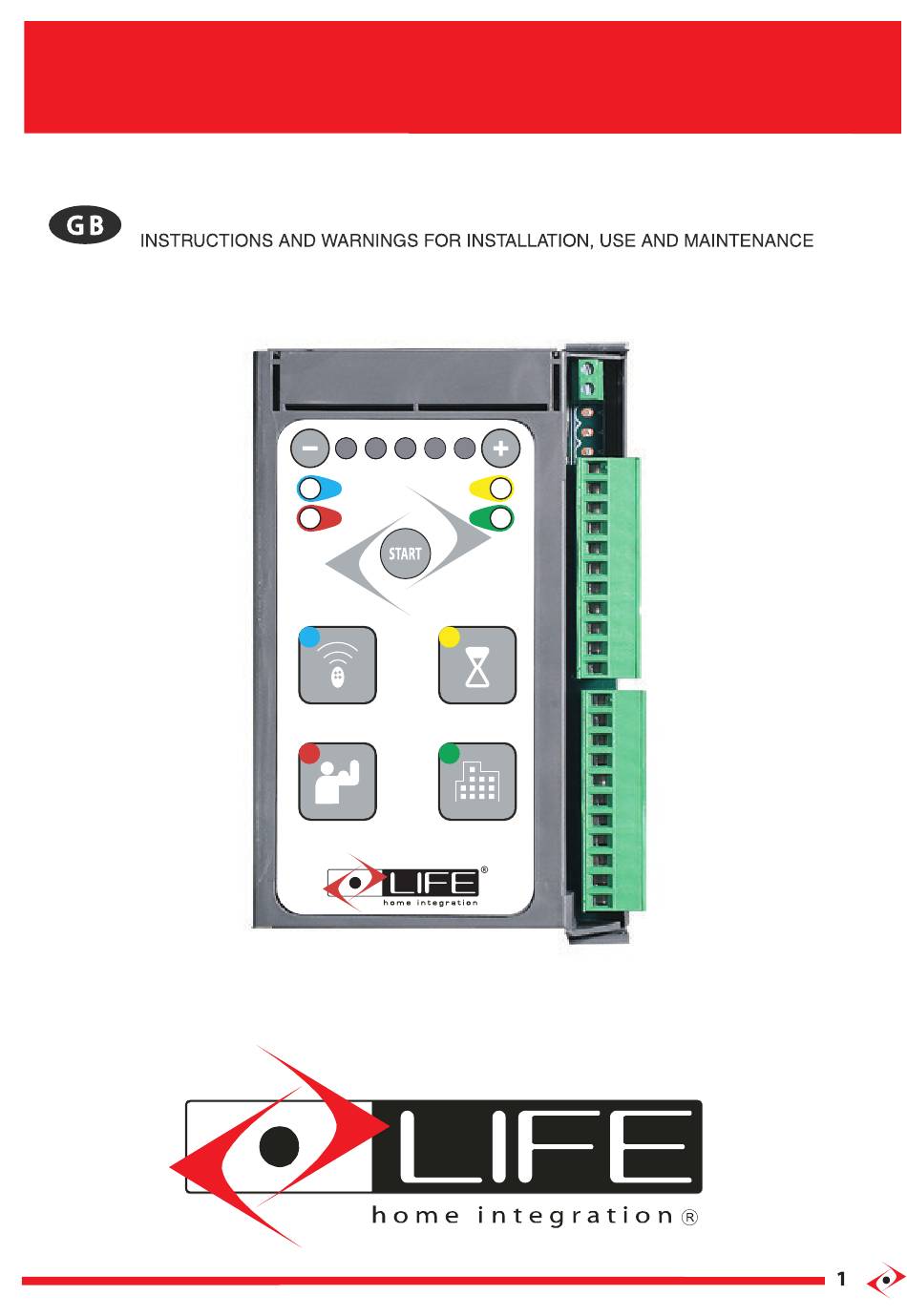

- Page 1 RG1RE 24DL SUPRA CONTROL UNIT FOR BARRIER SUPRA 24V Rev. 01 - 07/2013 LG...
- Page 2 CONNECTIONS * Before commencing wiring and connection work, read the SAFETY INSTRUCTIONS AND WARNINGS and INSTALLATION INSTRUCTIONS AND WARNINGS. * All wiring and connection operations must be carried out with the control unit disconnected from the electricity supply (and fr om the buf fer battery if present);...
- Page 3 RG1RE 24DL SKANT - SKANX AERIAL RG58-50ohm N.O. RELE’ 1 max 24V 1A N.C. COMMANDS COMMON N.C. STOP N.O. OPEN N.O. CLOSE N.O. STEP N.C. FOTO 1 N.C. FOTO N.O. RELE’ 2 max 24V 3A N.C. OUTPUT dc 200 mA max...
-
Page 4: Programming The Control Unit
ATTENTION 230V 230V 2 PROGRAMMING THE CONTROL UNIT P H ASE 1 TOTAL RESET 230V 230V 230V PROGRAMMING THE TRAVEL PHASE 2 a) P ress for 5 seconds, the 5 LEDs will light after start flashing. b) Press and the barrier starts rolling, if it opens press again the start button to invert the movement. - Page 5 PROGRAMMING RADIO TRANSMITTERS 3.2 DELETE AND LEARNING REMOTE CONTROLS. LEARNING THE REMOTE CONTROL FOR OPENING. LEARNING THE SECOND RADIO CHANNEL RELAY1 DELETE OF A RADIO LEARNED DELETE OF ALL THE RADIO LEARNED...
- Page 6 Automatic closing Automatic closing is activated after a preset PAUSE TIME. In this mode by pressing the start button or radio transmitter the automation changes it motion as follows OPEN-PAUSE- CLOSE – PAUSE Press (top right) and the right green led switches will be on. If no leds are on the automatic closing is not enable Press the button to increase or the...
- Page 7 SPEED Press the red LED (SX) switches on. Press to set the various speed values. SPEED LEDS ON Minimum MAXIMUM Wait 10 seconds or press again to quit. Obstacle detection The automation is fitted with an obstacle detection system: the automation inverts its movement when it strikes an obstacle duri n g the opening and closure phases. Sensitivity regulation consists in greater or lesser rapidity in response to the obstacle.
-
Page 8: Connection Cables
Connection cables Fitters must make the connections of the 50 Hz 230 Vac electricity supply, and the various automation devices. Connections between the control unit, motor, encoder and transformer have already been performed by the Manufacturer. • Once the connections to the control unit have been made, the Fitter must use bands to join adjacent wires into groups of 2, 3 or 4 in order to prevent them coming away from the terminal board: bands must be attached as close as possible to the terminals, no more than 10mm away, taking care not to damage wire insulation. -
Page 9: Troubleshooting
N.B. if the problems persist it is absolutely necessary to call the assistance service. BUFFER BATTERIES (OPTIONAL) a) The RG1RE 24DL SUPRA control unit can be fitted with a pair of 2Ah 12V buffer batteries (AGE 12) (optional), which allows emergency operation in the event of a power failure. -
Page 10: First Usage
TESTING AND TRIAL RUN • The testing and trial run must be performed by a COMPETENT PERSON supervised and aided by a PROFESSIONAL FITTER. It is the responsibility of the person who tests and sets up the automation (of which the control unit is a part) to perform the checks required in accordance with the risks existing and to check conformity with the relevant legislation and standards, in particular with EN standard 12445, which governs the methods for performing trials on gate automations and EN standard 12453 that specifies the performance requisites concerning safety of use. -
Page 11: General Information
SAFETY INSTRUCTIONS AND WARNINGS chapter. With the aim of improving its products, LIFE home integration reserves the right to bring about alterations to them at any time, without giving prior notice. This document conforms to the state of the automation at which it is provided when released for sale. -
Page 12: Routine Maintenance
MAINTENANCE 14.1 Maintenance instructions and warnings • Once the automation has been tested, the parameters set must not be altered. If further adjustments (e.g. alterations to the voltage value) are made, ALL THE CHECKS REQUIRED FOR TESTING AND COMPLIANCE WITH STANDARDS MUST BE REPEATED. •... - Page 13 5RI....2AS....
-
Page 14: Declaration Of Conformity
Directive 98/37/EC, appendix II, part B (Manufacturer’s Declaration of CE Conformity) LIFE Home Integration Via S.Pertini 3/5 31014 COLLE UMBERTO (TV) declares that the following product: RG1RE 24DL SUPRA control unit satisfies the essential requisites established in the following directives: • Low voltage directive 73/23/EEC and subsequent amendments, •... - Page 16 Address: Via Sandro Pertini,3/5 31014 COLLE UMBERTO (TV) Italia Telephone: + 39 0438 388592 Telefax: + 39 0438 388593 http www.homelife.it e-mail: info@homelife.it...
