Anet A8 Instructions Manual page 12

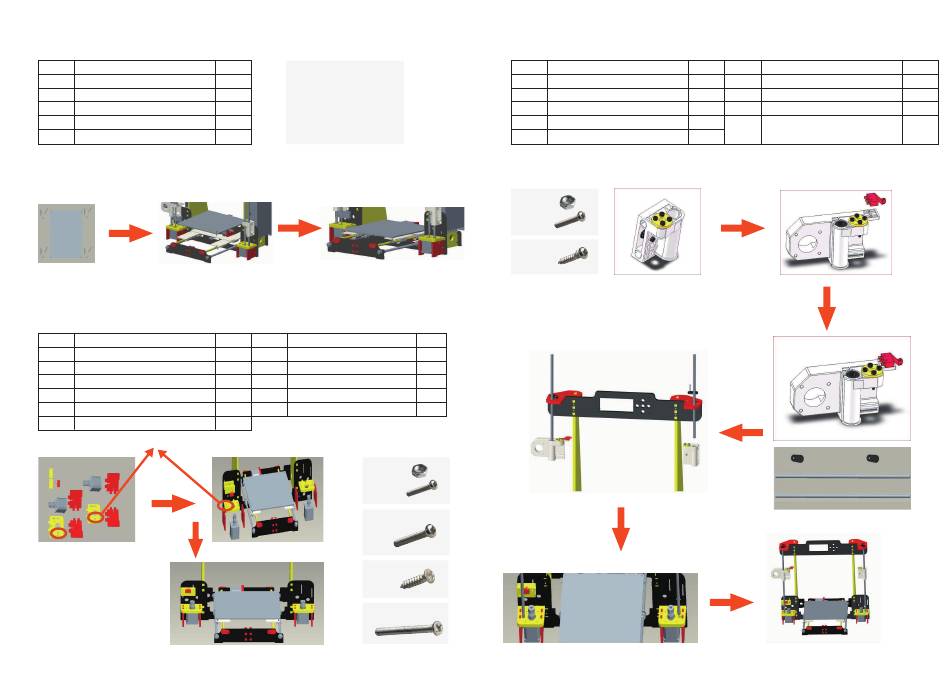

Step 11
Item Name of parts
1 Step 9
2 Hot bed
3 M3*30 screw
4 Spring
5 M3 wing nut
Attention: Hot bed screws should be in the bottom, and wing nuts
will keep the height of hot bed level as well as firming the hotbed.
Before Assembly
Step 12
Item Name of parts
1 Step
2 Z axis motor
3 Z axis motor fixed plate
4 Z axis motor support plate
5 Z axis Limit switch fixed plate
6 Z axis Limit switch A 20CM
Attention: This hole is for Z axis guide rod positioning.
Before Assembly
After Assembly
QTY.
1
1
4
4
4
After Assembly
QTY. Item Name of parts
1 7 M3*18 screw
2 8 M3 Nut
2 9 M3*12 screw
4 10 M3*20 screw
2 11 M2*12 screw
1
M3
M3*18
M3*12
M2*12
M3*30
page 18
Step 13
Item Name of parts
1 Step 11
2 Step 12
3 Right Z axis nut support
4 Guide rod back up plate
5 Z axis Guide rod 380mm
M3
M3*18
M2.3*10
QTY.
10
10
8
2
2
QTY. Item
1 6
1 7
1 8
2
2
Before Assembly
Z axis Guide rod 380mm
After Assembly
Name of parts QTY.
M3*18 screw 2
M3 Nut 2
M2.3*10 screw 2
page 19
