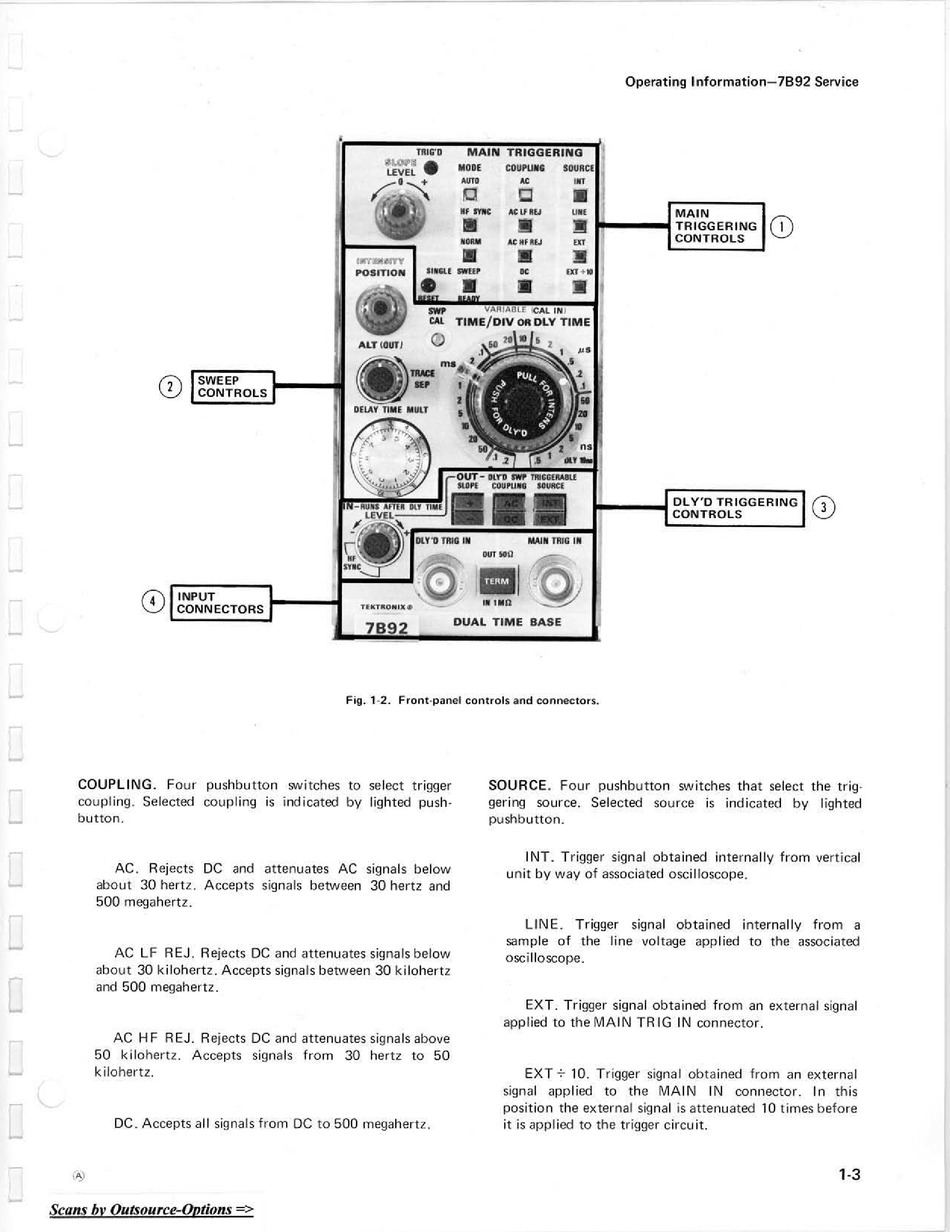

Fig.
1·2.
Fr
o
nt·panel
co ntro ls
and
co nnec to
rs.
CO
UPLING
.
Four
pushbutton
switches
to select trigger
coupling
.
Selected
coupling
is
indicated
by lighted
push
·
button.
AC. Rejects DC and
attenuates
AC signals below
about
30 hertz
.
Accepts signals between 30 hertz
and
500 megahertz.
AC
LF
RE
J
.
Rejects
DC and attenuates signals below
about 30
kilohert
z.
Accepts signals between 30 kilohertz
and
500 megahertz
.
AC H F R EJ. Rejects
DC
and attenuates
signals above
50 kilohertz. Accepts
signals
from 30 hertz to 50
kilohertz.
DC
.
Accepts all signals from DC
to
500 megahertz.
Scan
...
b
y
OUlsourcl!-Oplions
->
SOURCE
. Four pushbutton switches that select the
trig·
gering source. Selected source is indicated by lighted
pushbutton.
INT
.
T
rigger signal
obtained
internally from vertical
unit by
way
of
associated
oscilloscope.
LI
NE. Trigger signal obtained
internal
ly from a
sample of the line voltage applied to the associated
oscilloscope.
EXT. Trigger signal obtained from an external signal
applied to the
MA
IN
TRIG
IN connector.
EXT
+
10.
T
rigger signal
obtained from an external
signal
applied
to the
MAIN
I
N
connector
.
In this
position the external
signal
is
attenuated
10
times
before
it is applied to the trigger circuit.
'
