Summary of Contents for PCE Instruments PCE-DT 50
- Page 2 Table of Contents Introduction .................................... 1 Safety Information ................................1 Specification ................................... 2 Technical Data ..................................2 Scope of Delivery................................. 2 System Description ................................. 2 Device ....................................3 Display Description ................................3 Operation ....................................4 Power On/Off: ..................................4 Measurement ..................................4 Hold Function ..................................

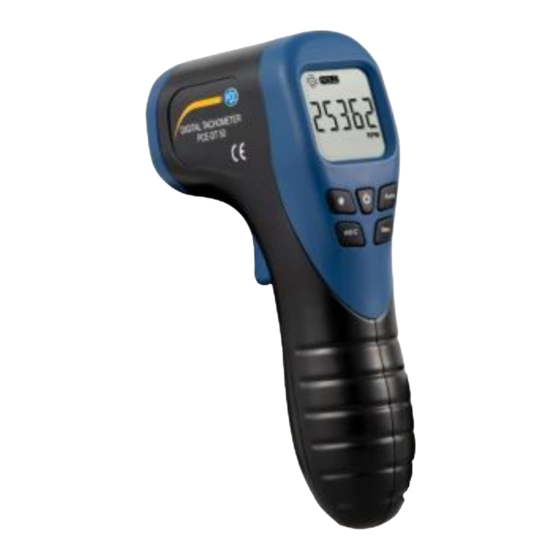

- Page 3 The hand tachometer PCE-DT 50 is excellent for the fast suitable for speed control. The PCE-DT 50 non-contact measures the rotational speed from moving objects such as drives, shafts, pinions, etc. It uses a laser to do this, which emits light, and a receiving diode which detects the light-dark contrast of the reflected light.
- Page 4 Storage conditions -10 ... 60 °C / 10 ... 75 % r. h. Dimensions 145 x 90 x 35 mm Weight approx. 120 g incl. battery 3.2 Scope of delivery 1x hand tachometer PCE-DT 50 1x 9 V block battery 1x instruction manual 1x reflective tape approx. 20 cm...
- Page 5 3.2 Display description 1. measurement indicator 2. HOLD symbol 3. laser symbol 4. battery indicator 5. MAX/MIN/average value 6. measured value 7. measuring unit 8. number of data records 9. automatic mode 10. recording icon 11. data call © PCE Instruments...
- Page 6 Interval time or the Auto button to increase the time. - The time interval can be set from 1-99 sec. © PCE Instruments 5.9 Battery - If the meter does not turn on or the battery indicator is lit, replace the meter.
- Page 7 5 Warranty You can read our warranty conditions in our general terms and conditions. which you can find here: https://www.pce-instruments.com/f/t/us/terms-conditions.htm 6 Disposal Recycle rechargeable batteries and cell phones and help protect our environment and conserve the Earth’s natural resources. Many stores and cities offer free, recycling for rechargeable batteries and other hazardous waste. Learn More About the Call2Recycle Program, at http://www.call2recycle.org/, to find a local recycling center.
