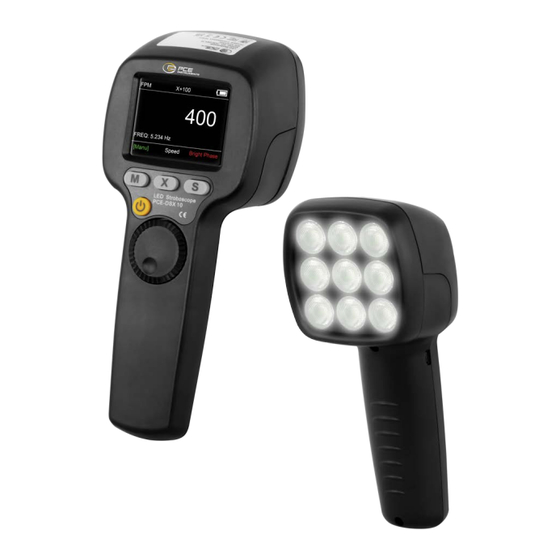

PCE Instruments PCE-DSX 10 User Manual

PCE Instruments PCE-DSX 10 User Manual

Stroboscope

Advertisement

Quick Links

User Manual
PCE-DSX 10
Stroboscope

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCE-DSX 10 and is the answer not in the manual?

Questions and answers

Summary of Contents for PCE Instruments PCE-DSX 10

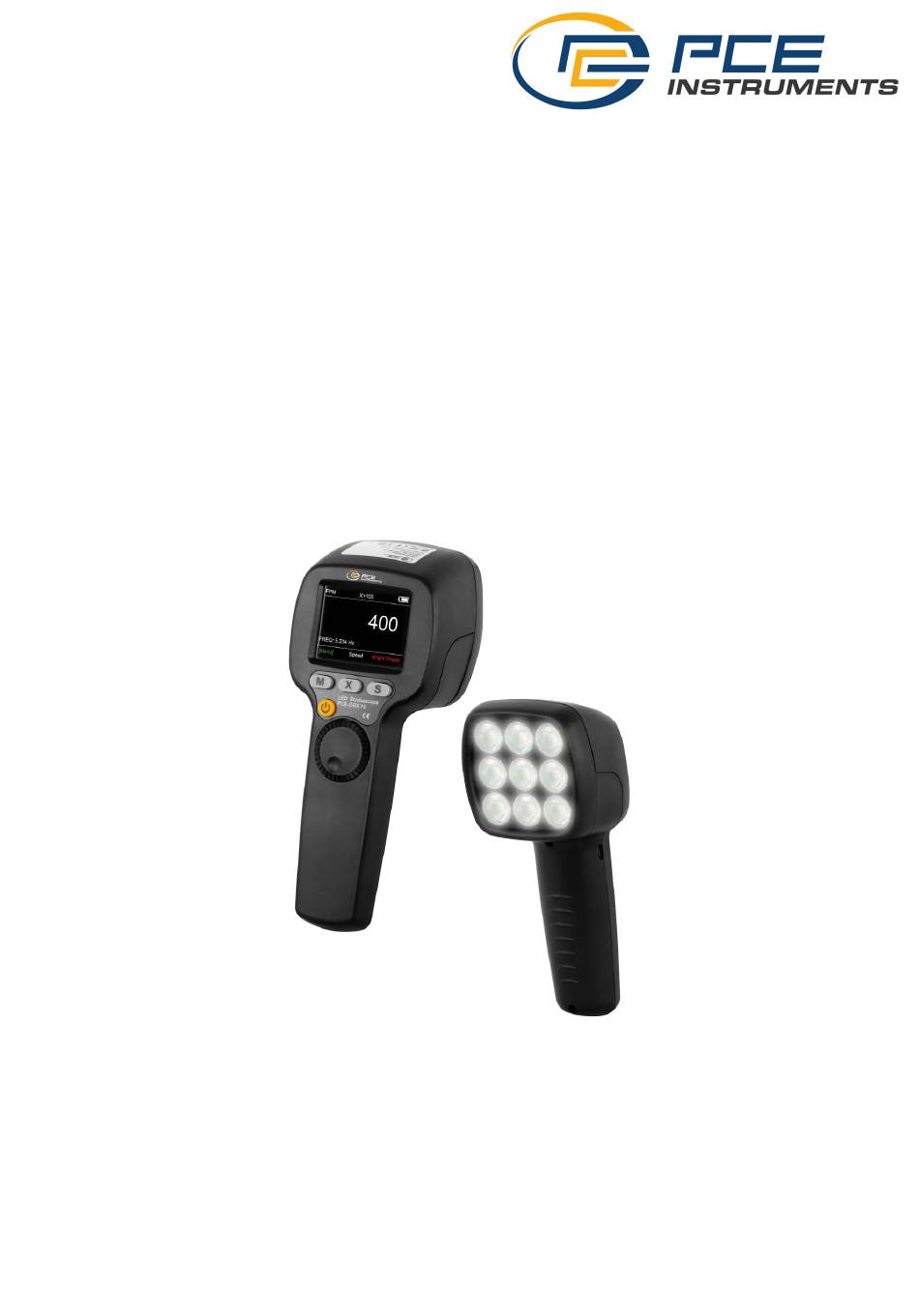

  • Page 1 User Manual PCE-DSX 10 Stroboscope...
  • Page 2 Introduction This instrument is a new LED light source that flashes at a certain frequency. When observing a high-speed rotating or moving object with this instrument, the flashing frequency of the LED lamp is adjusted to be close to or synchronized with the rotation or movement speed of the measured object. Although the measured object is moving at a high speed, it seems to be moving slowly or stationary.
  • Page 3 6. LED Flash Projection Light Source 7. Rotation speed, frequency or brightness indication display Power switch button Mode switch button 10. USB port Operational Steps The front of the instrument has an LCD display, four button keys and an adjusting dial. Display: Displays the current speed (hertz/brightness), multiplier, and battery level during the measurement.
  • Page 4 Figure 1: Starting up Figure 2: Storage function Multiplier button key: Pressing the multiplier key/zero button, the display will show X+1, X+10, X+100 or Xmeter 2X/2 (default power-on multiplier is X1). Turn the dial one grid and the output will increase or decrease by 1, 10 or 100 rpm accordingly.
  • Page 5 1. Speed measurement (1) Mark the near-center part of the measured object or identify the existing feature marker (suitable for asymmetric markers). (2) Press the power key and the instrument starts to work. The display shows the last saved test speed of the instrument.
  • Page 6 3. Do not place the instrument in an environment where the temperature is above 55 degrees C 4. Do not place the instrument in places with too much acid or salt mist Accessories 1 x stroboscope PCE-DSX 10 1 x USB cable 1 x operating instructions...
