Summary of Contents for PCE Instruments PCE-DOM Series

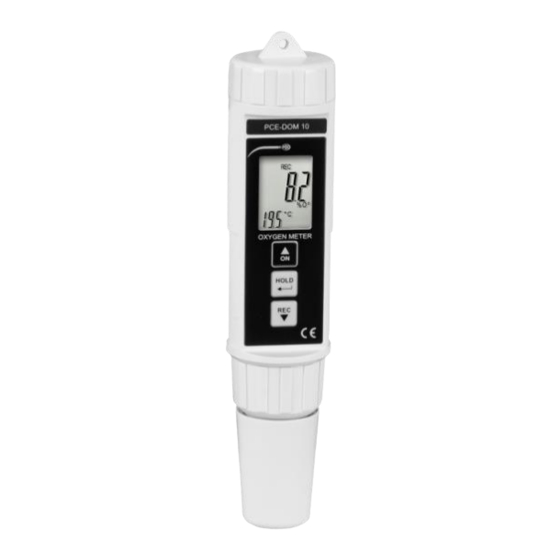

- Page 1 User Manual PCE-DOM Series Oxygen Meter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 21 August 2020 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Freezing data in the display ....................6 Save measured data (MIN HOLD, MAX HOLD) ............... 6 Maintenance ..................7 First use ........................... 7 Maintenance of the sensor ....................7 Battery replacement ......................8 Warranty ....................9 Disposal ....................9 © PCE Instruments... -
Page 3: Safety Notes
We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments... -
Page 4: Device Description
180 x 40 x 40 mm (handheld unit without sensor) Weight approx. 176 g (PCE-DOM 10) approx. 390 g (PCE-DOM 20) 2.1.1 Spare parts PCE-DOM 10 Sensor: OXPB-19 Diaphragm: OXHD-04 2.1.2 Spare parts PCE-DOM 20 Sensor: OXPB-11 Diaphragm: OXHD-04 © PCE Instruments... -
Page 5: Front Side
3-4 REC key 3-5 Sensor with diaphragm 3-6 Battery compartment 3-7 Sensor connection 3-8 Sensor plug 3-9 Protection cap Attention: The sensor of the PCE-DOM 20 is covered with a red protective cap which must be removed before measurement! © PCE Instruments... -
Page 6: Operating Instructions
Then switch on the test instrument using the on/off key. The display then shows a measured value and the current temperature: The upper, large display shows the current measured value. Wait approx. 3 minutes until the display has stabilised and the measured value no longer fluctuates. © PCE Instruments... -
Page 7: Measurement Of Dissolved Oxygen In Liquids
0.2 ... 0.3 m/s. In laboratory tests, it is recommended to stir the liquid in a beaker with a magnetic stirrer (e. g. PCE-MSR 350). After the measurement is completed, the electrode can be rinsed with tap water and the protective cap can be placed on the sensor. © PCE Instruments... -
Page 8: Measurement Of Atmospheric Oxygen
Pressing the HOLD key terminates the function and the REC icon appears in the display. 3.6.3 Terminate memory mode When the REC icon appears in the display, this function can be cancelled by pressing the REC key for at least two seconds. The oxygen meter then returns to normal measuring mode. © PCE Instruments... -
Page 9: Maintenance
Check the condition of the electrolyte in the sensor head. If the electrolyte is dry or dirty, the head should be cleaned with tap water. Then fill the black cap with new electrolyte (OXEL-03) as described in chapter Fehler! Verweisquelle konnte nicht gefunden werden.. © PCE Instruments... -
Page 10: Battery Replacement
To do this, open the battery compartment cover of the meter and remove the old batteries. Then insert new 1.5 V AAA batteries into the meter. Make sure that the polarity is correct. After the new batteries have been inserted, close the battery compartment. © PCE Instruments... -
Page 11: Warranty
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 12 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
