PCE Americas Inc.
PCE Instruments UK Ltd.
711 Commerce Way
Units 12/13
Suite 8
Southpoint Business Park
Jupiter
Ensign way
FL-33458
Hampshire / Southampton
USA
United Kingdom, SO31 4RF
From outside US: +1
From outside UK: +44
Tel: (561) 320-9162
Tel: (0) 2380 98703 0
Fax: (561) 320-9176
Fax: (0) 2380 98703 9
info@pce-americas.com
info@pce-instruments.com
www.pce-instruments.com/english
www.pce-instruments.com

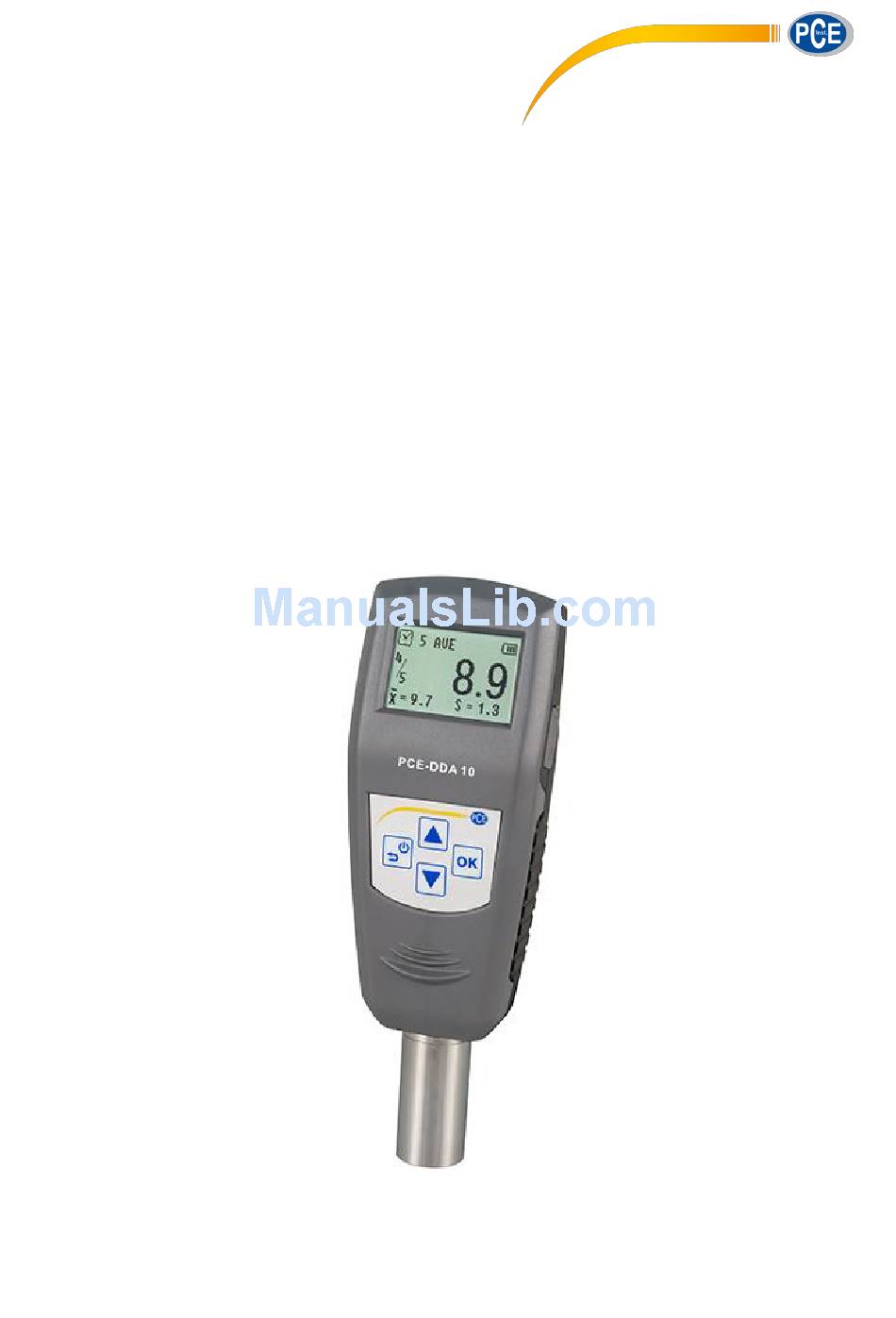

Manual
Hardness Tester
PCE-DDA 10
PCE-DDD 10
PCE-DDO 10
Version 1.0
Date of creation: 04.08.2015
Date of last change: 27.09.2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PCE Instruments PCE-DDA 10
Summary of Contents for PCE Instruments PCE-DDA 10
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
-
Page 2: Table Of Contents
Manual Contents Delivery content ...................... 3 Introduction ......................4 Safety notes ......................4 Specification ......................5 Application fields ......................... 5 Applications ..........................5 General technical data ........................ 5 System description ....................6 Basic part ............................ 6 Keyboard ............................ 6 5.2.1 Power/Return .......................... -
Page 3: Delivery Content
Query and search ........................14 Delete data ..........................14 Print ............................15 Data export ..........................15 Close software ........................15 10 Contact ........................16 10.1 PCE Instruments UK ........................ 16 10.2 PCE Americas .......................... 16 Delivery content • rubber hardness tester •... -
Page 4: Introduction
Shore Hardness can be calculated. Safety notes Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. There is no warranty damages... -
Page 5: Specification
Manual Specification Application fields o/do/oo Strut diameter of the 2,25 ±0,1 1,25 ±0,1 2,38 ±0,08 indenter (mm) Top plane diameter of 0,79 ±0,03 the indenter (mm) Top sphere radius (mm) 0,1 ±0,01 1,19 ±0,05 Top cone angle of the (35 ±0,25)° (30 ±0,5)°... -
Page 6: System Description

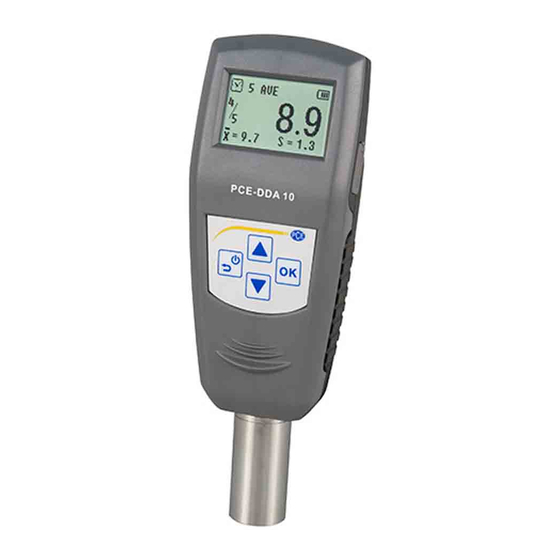

Manual System description Basic part Digital Durometer Main body: 1 x Charger: 1 x Standardized thickness block: 1 x Keyboard 5.2.1 Power/Return By pressing this button, the durometer will be power on. By long time pressing this button, the durometer will be power off. -
Page 7: Measuring
Manual Measuring Specimen 1. The surface of the specimen shall be flat and parallel over an area to permit the presser foot to contact the specimen over an area having a radius of at least 6 mm from the indenter point. 2. -
Page 8: Menu
Manual Menu Menu structure Menu Calibration Test Setup Test mode Test times Tolerance Grubbs error Workpiece Dwell Time System Setup Date / Time Backlight Time Key Sound Alarm Sound Memory Browse select A to Z Browse select Z to A Browse select Delete All Printing Setup... -
Page 9: Calibration
Manual Calibration The durometer can be calibrated by hard flat plate, standard thickness block or other rubber whose hardness is known. 1. To press indenter on the flat plate, standard thickness block or the rubber whose hardness is known. Keeping the presser foot contact the samples closely for a while to stabilize, the LCD shows the hardness value. -
Page 10: Tolerance
Manual 7.4.3 Tolerance Under this menu, the tolerance limit can be set. When the measuring data is exceed the setting value, the icon of “!” will be showed on the LCD and it will flash. If the alarm function is turn on, the durometer will make the alarm sound. -
Page 11: Backlight Time
Manual 7.5.2 Backlight Time Under this menu, the continued lighting time of the backlight can be set. 0s: The backlight will be turned off all times. 15s, 30s, 45s, 60s: The backlight will be turn off when there is no operation for longer than the set. Disable: The backlight will light all the time. -
Page 12: Maintain
Manual Maintain Generally 1. This durometer should avoid shock or heavy pressure and can’t be exposed to high-intensity magnetic field, high humidity or oil environment. 2. Because the print paper is heat sensitive paper, the paper should avoid high temperature and direct light. - Page 13 Manual First assign an index name to be able to differentiate between several data records Then click on the “Upload Data” button.
-
Page 14: Query And Search
Manual Query and search 1. If you only need the search function, set the needed values in the „Condition Area“ (see image below) and then click on „Inquiry“ 2. In the „Date Area“, you can limit the measured data to a certain date or period. You can select whether you would like to regard the day of measurement („Detection“) or the upload date („Upload“). -
Page 15: Print
Manual Print After limiting the data by clicking on the „Inquiry“ button, you can print all data from the chart by clicking on the „Print“ button. Data export You can export your data (which are in the chart at that time) into a different file format at any time. -
Page 16: 10 Contact
Manual 10 Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments. 10.1 PCE Instruments UK By post: PCE Instruments UK Ltd. Units 12/13 Southpoint Business Park Ensign Way, Southampton Hampshire United Kingdom, SO31 4RF...
