Flow meter Output Types

A
I
J
K
T
D
E
F
G
H
M

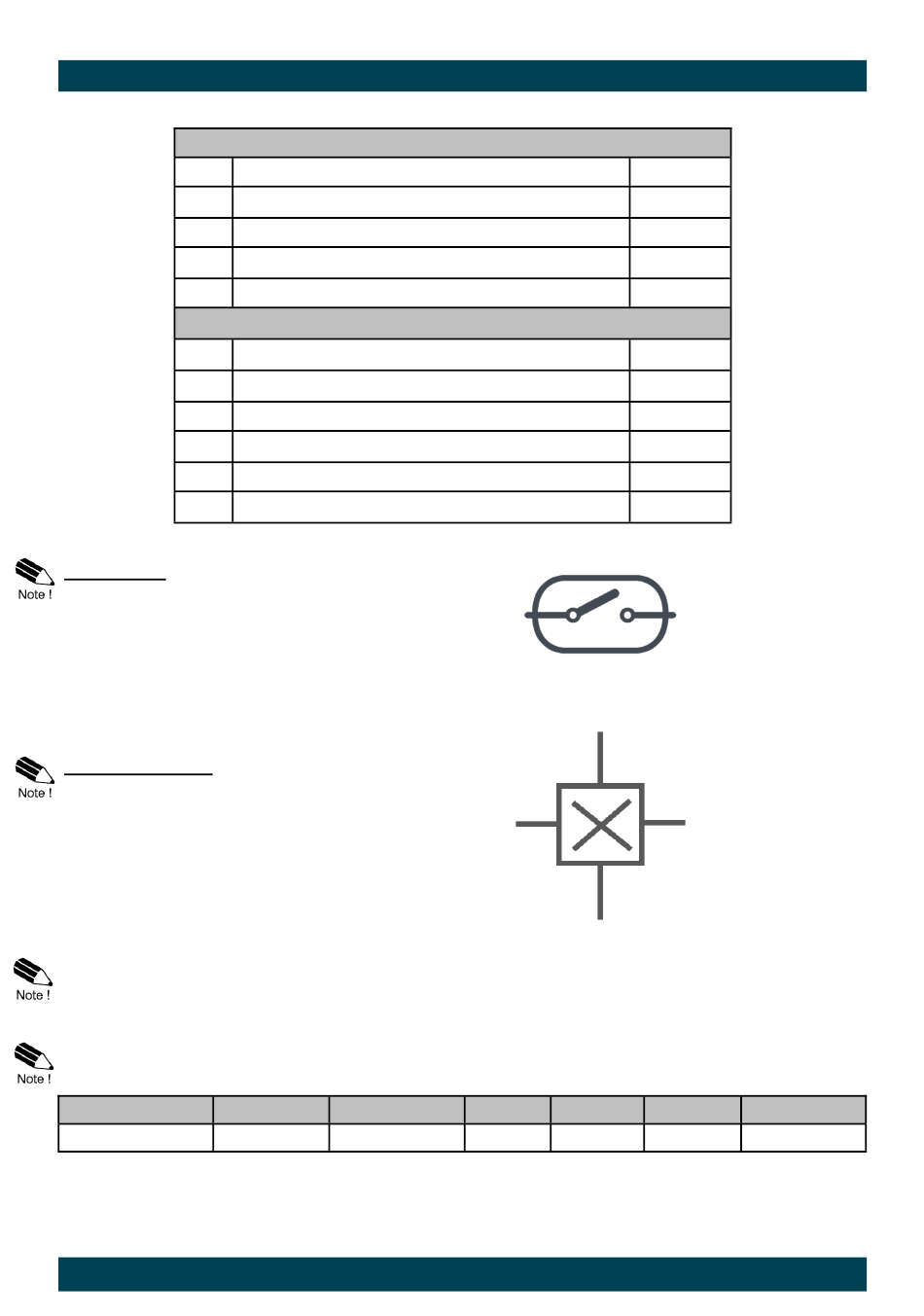

Reed Switch: Reed Switch is a 2-wire device which
triggers by magnet inside the rotors as they spin. To
maximise the life of the reed switch, the pulse board
comes equipped with a 1k8Ω current limiting resistor
in series.
Hall Effect Switch: Hall Effect switch is a 3-wire
device which triggers by south pole of the magnet
inside the rotors as they spin. This switch is NPN
type. The switch circuit is equipped with a 4k7Ω pull
-up resistor between signal and supply.
*
Analogue outputs are available as an auxiliary display signal by including ERA, PRA and PRM with the flow
meter. PRA and ERA display also output scalable pulse.
Instruction manual for local displays to be seen separately. Part numbers as under:
Display MXD-DS
Instruction Manual MXL-INSTPR
Pulse output
1 x Hall Effect Switch & 1 x Reed Switch
Dual Reed Switches
Dual Hall Effect Switches - Quadrature Pulse
High Resolution Sensor
High Temperature Sensor
Local Digital Display
PR (LCD 12 mm Display)
*
PRA (LCD 12 mm Display)
ER (LCD 17 mm Display)
*
ERA (LCD 17 mm Display)
ERB (LCD 17 mm Display)
*
PRM (LCD Blind 4 - 20 mA Display)
MXD-ES
MXL-INSTPRA
Reed Switch
Hall Effect Switch
MXD-FS MXD-GS
MS574 MS476
MXD-AS
MXD-IS
MXD-JS
MXD-KS
MXD-TS
MXD-DS
MXD-ES
MXD-FS
MXD-GS
MXD-HS
MXD-MS
MXD-HS MXD-MS
MS392 MXL-INSTPRM
