2.3.21

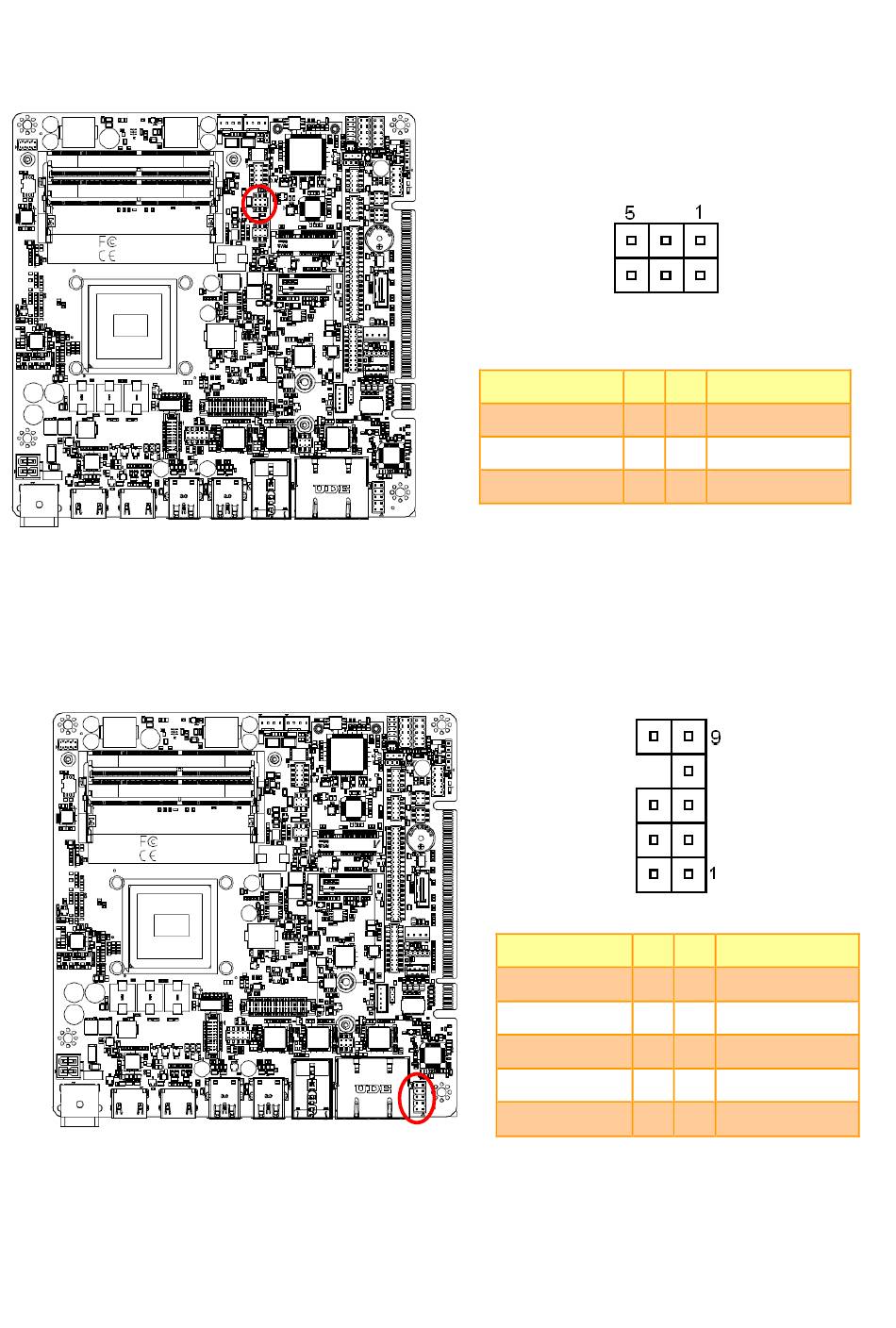

Serial Port2 RS485/422 Mode connector (JRS485_2)

2.3.22

Front Audio connector (FAUD1)

Signal PIN PIN
485_422TX2- 1
485_422TX2+ 3
+5V 5
Signal PIN PIN
LINEOUT1 _JD 10
MIC1_JD 6
ACZ_DET# 4
GND 2
EMX-ZXEDP User's Manual 31
User's Manual
Signal
2 422RX2-
4 422RX2+
6 GND
Signal
9 LINEOUT_L
7 GND
5 LINEOUT_R
3 MIC1_RIN
1 MIC1_LIN
