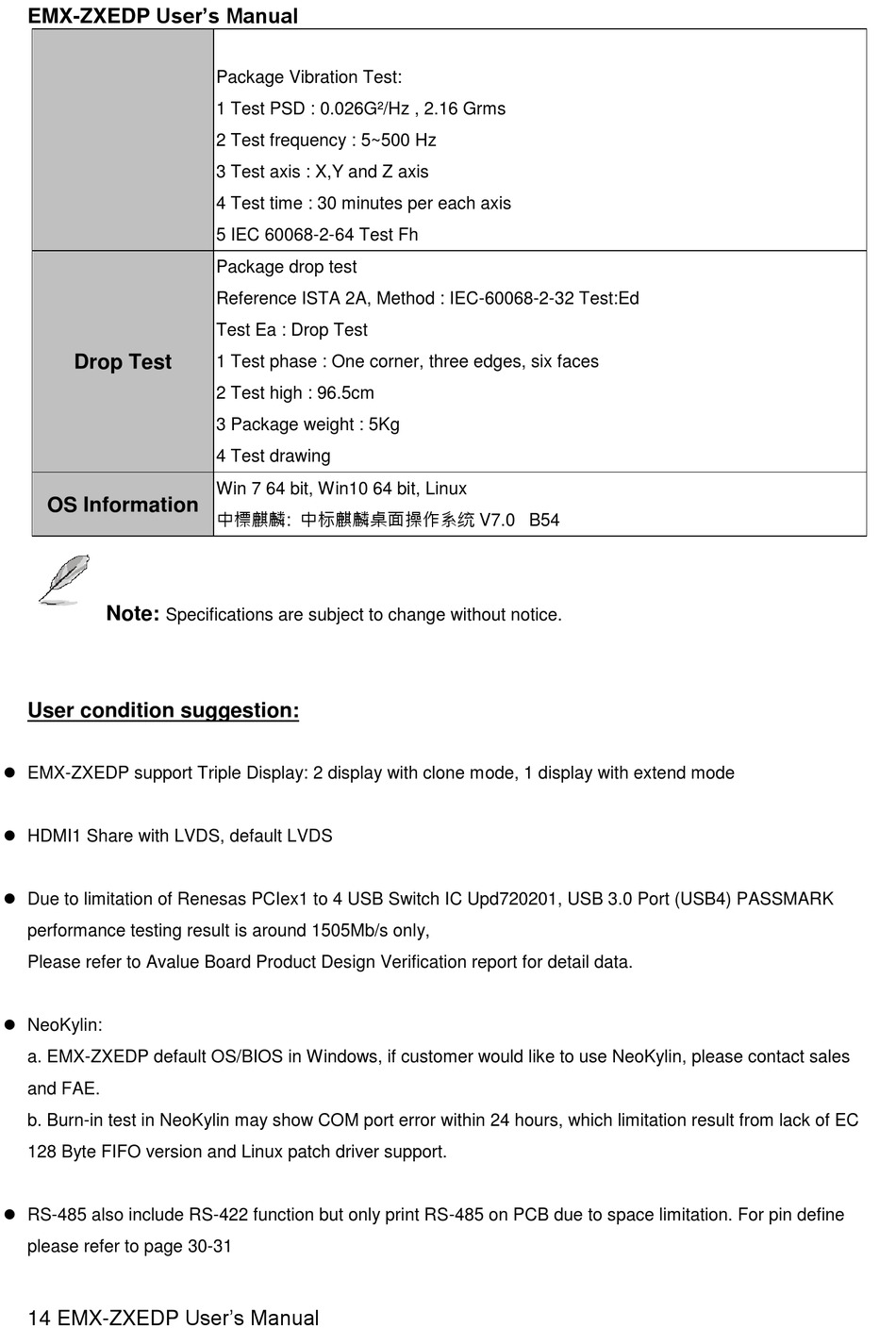

EMX-ZXEDP User's Manual
Drop Test
OS Information
Note:
Specifications are subject to change without notice.
User condition suggestion:
 EMX-ZXEDP support Triple Display: 2 display with clone mode, 1 display with extend mode
 HDMI1 Share with LVDS, default LVDS
 Due to limitation of Renesas PCIex1 to 4 USB Switch IC Upd720201, USB 3.0 Port (USB4) PASSMARK
performance testing result is around 1505Mb/s only,
Please refer to Avalue Board Product Design Verification report for detail data.
 NeoKylin:
a. EMX-ZXEDP default OS/BIOS in Windows, if customer would like to use NeoKylin, please contact sales
and FAE.
b. Burn-in test in NeoKylin may show COM port error within 24 hours, which limitation result from lack of EC
128 Byte FIFO version and Linux patch driver support.
 RS-485 also include RS-422 function but only print RS-485 on PCB due to space limitation. For pin define
please refer to page 30-31
14 EMX-ZXEDP User's Manual
Package Vibration Test:
1 Test PSD : 0.026G²/Hz , 2.16 Grms
2 Test frequency : 5~500 Hz
3 Test axis : X,Y and Z axis
4 Test time : 30 minutes per each axis
5 IEC 60068-2-64 Test Fh
Package drop test
Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed
Test Ea : Drop Test
1 Test phase : One corner, three edges, six faces
2 Test high : 96.5cm
3 Package weight : 5Kg
4 Test drawing
Win 7 64 bit, Win10 64 bit, Linux
中標麒麟: 中标麒麟桌面操作系统 V7.0 B54
