114, 115, and 117
Users Manual

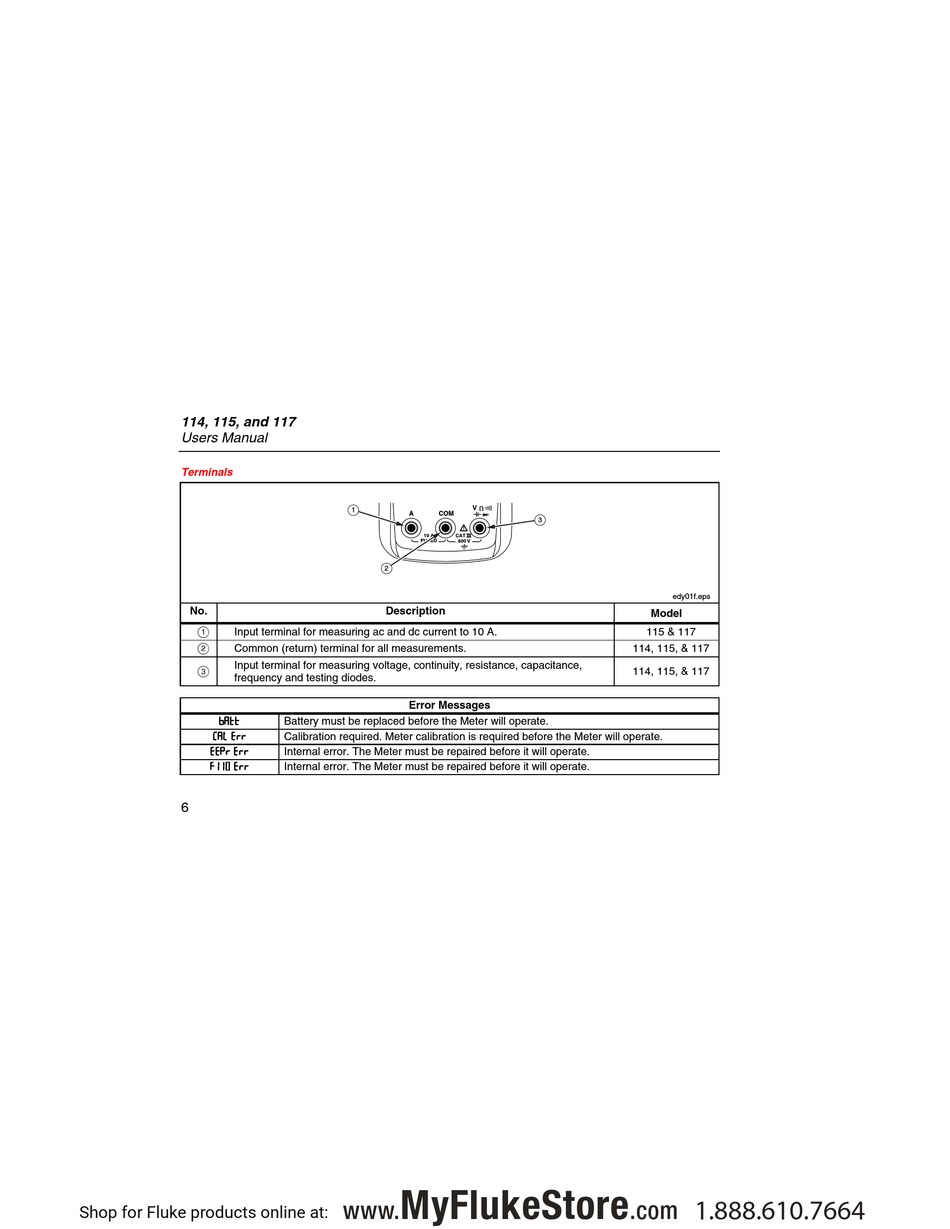

Terminals
No.
A
Input terminal for measuring ac and dc current to 10 A.
B
Common (return) terminal for all measurements.
Input terminal for measuring voltage, continuity, resistance, capacitance,
C
frequency and testing diodes.
bAtt
CAL Err
EEPr Err
F11 Err
6
Shop for Fluke products online at:
1
A COM
10 A
FUSED
2
Description
Error Messages
Battery must be replaced before the Meter will operate.
Calibration required. Meter calibration is required before the Meter will operate.
Internal error. The Meter must be repaired before it will operate.
Internal error. The Meter must be repaired before it will operate.
MyFlukeStore
www.
V
3
Model
115 & 117
114, 115, & 117
114, 115, & 117
.com
edy01f.eps
