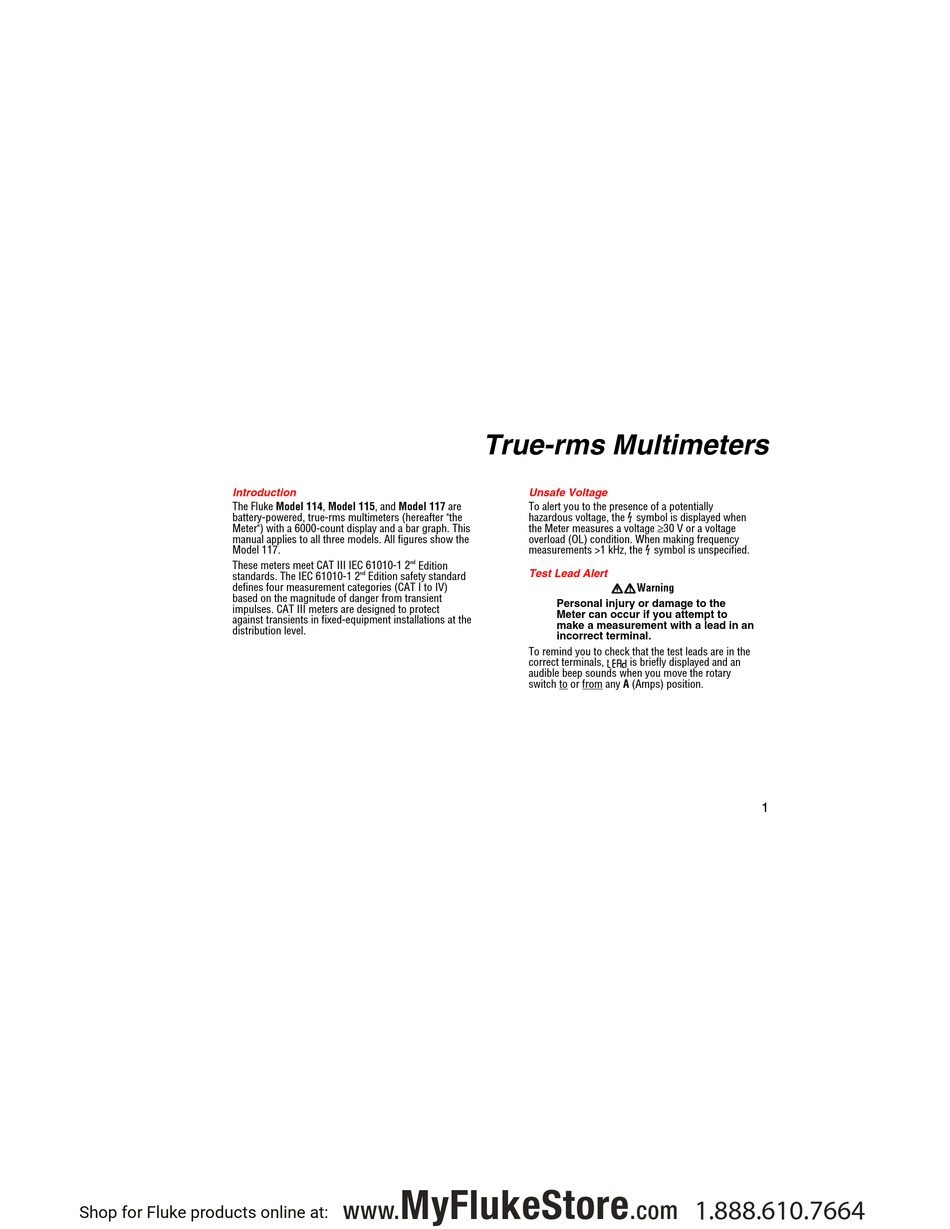

Fluke 114 User Manual page 3

Introduction
The Fluke Model 114, Model 115, and Model 117 are
battery-powered, true-rms multimeters (hereafter "the
Meter") with a 6000-count display and a bar graph. This
manual applies to all three models. All figures show the
Model 117.
These meters meet CAT III IEC 61010-1 2
standards. The IEC 61010-1 2
defines four measurement categories (CAT I to IV)
based on the magnitude of danger from transient
impulses. CAT III meters are designed to protect
against transients in fixed-equipment installations at the
distribution level.
Shop for Fluke products online at:
True-rms Multimeters
nd
Edition
nd
Edition safety standard
MyFlukeStore
www.
Unsafe Voltage
To alert you to the presence of a potentially
hazardous voltage, the Y symbol is displayed when
the Meter measures a voltage ≥30 V or a voltage
overload (OL) condition. When making frequency
measurements >1 kHz, the Y symbol is unspecified.
Test Lead Alert
XWWarning
Personal injury or damage to the
Meter can occur if you attempt to
make a measurement with a lead in an
incorrect terminal.
To remind you to check that the test leads are in the
correct terminals, LEAd is briefly displayed and an
audible beep sounds when you move the rotary
switch to or from any A (Amps) position.
