Daisy Chaining with Other SCSI Devices

This procedure is essentially the same as the procedure outlined above for
multiple arrays. Refer to the manual associated with the other device or devices
for additional information that may be pertinent to that unit.
Ensure that each device has a unique SCSI ID (see page 78) and that only the
first and last devices are terminated. Some devices have an internal SCSI
termination function that takes the place of an external terminator attached to
the SCSI connector.
Computer or Workstation

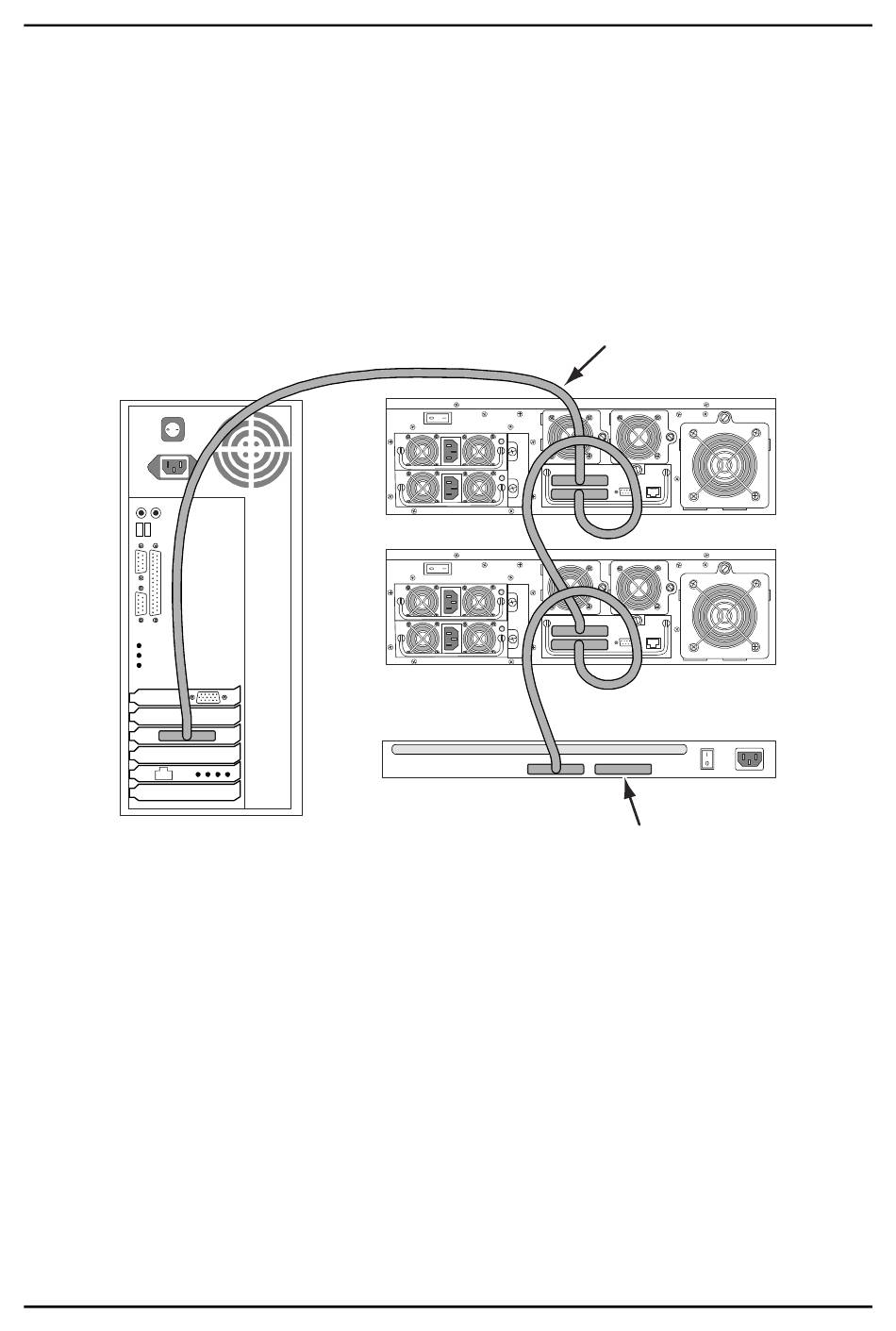

Figure 51. Daisy Chaining UltraTrak with other SCSI devices.
