6. Installation

6.1 Preinstall connecting strips

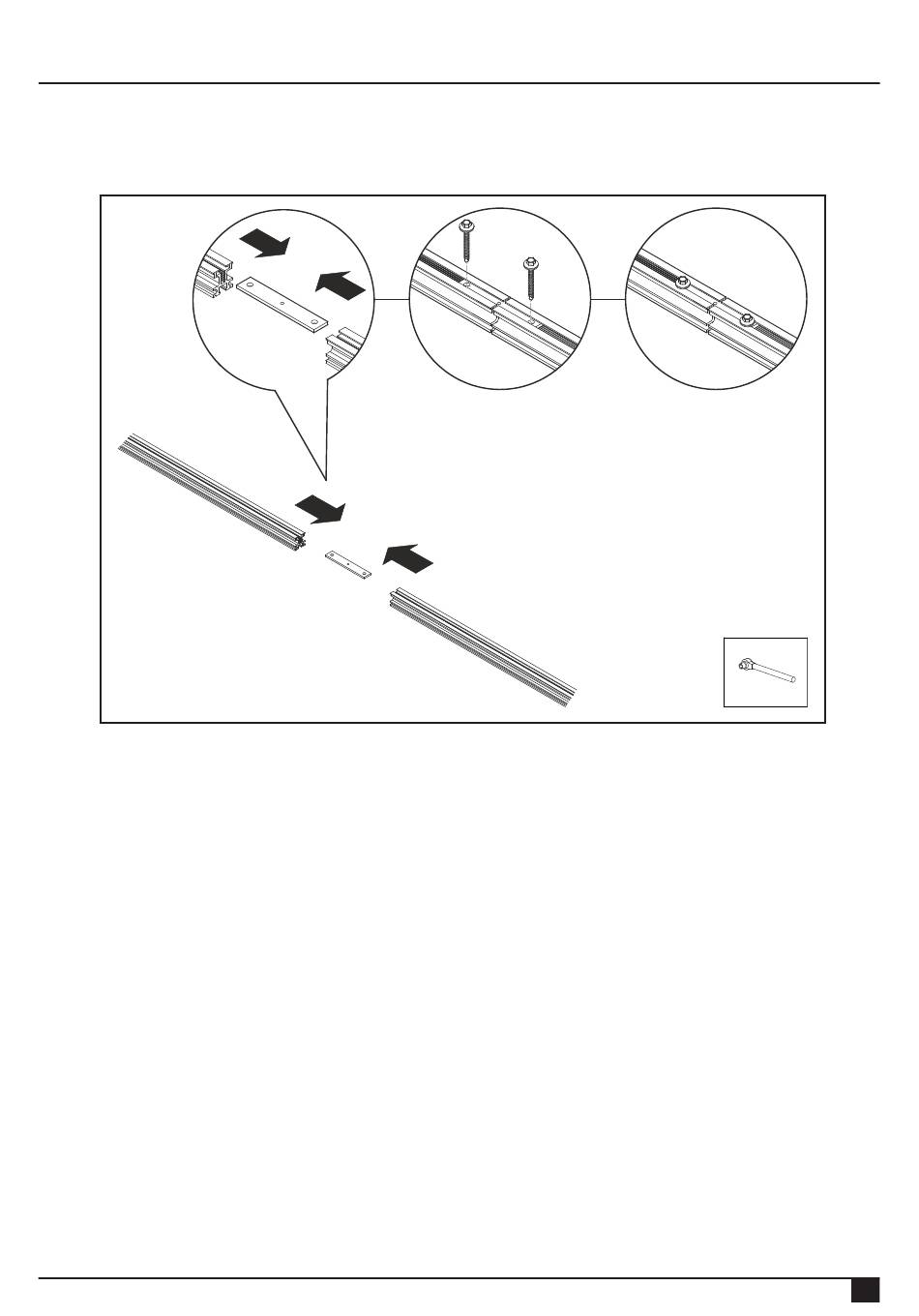

You can attach the mounting rails to each other with the supplied connection strips.
Slide the connection strip into the side of the mounting rail and fix this using the supplied mounting screws 6.5x19.
The tightening torque of the screw connections is 4,5Nm.
Rev. 09.02.16
MANUAL MOUNTING SYSTEM FOR PITCHED ROOF WITH TILES
07
