Mounting 1Ste Solar Panel Onto The Rail - ESDEC ClickFit Basic Manual

Mounting system for pitched roof with tiles for solar panels in landscape setup
Hide thumbs Also See for ClickFit Basic:
Table of Contents

Advertisement

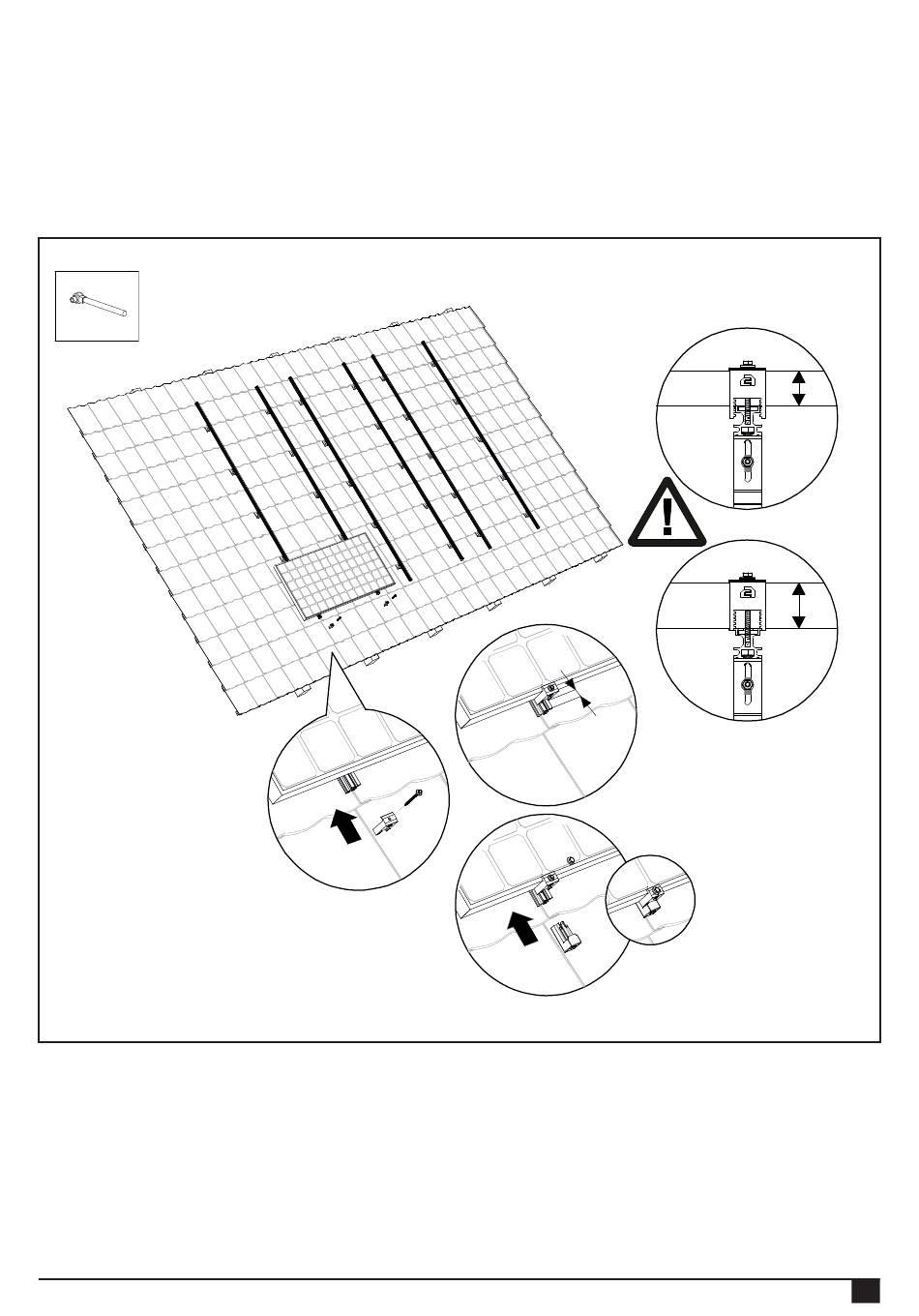

6.4 Mounting 1st solar panel on mounting rail
Slide the end clamps on the underside of the mounting rails. Choose the correct recess so that the end clamp connects to
the solar panel. Leave about 1 cm rail visible protrude next to the end clamp. Then slide the first solar panel to the underside
of the mounting rail. Tighten the end clamp using the mounting screw. The tightening torque of the screw connections is
4,5Nm.
Option: Slide the black end caps in the side in the underside of the mounting rails and place the color caps over the
mounting screws.
Rev. 09.02.16
1
MANUAL MOUNTING SYSTEM FOR PITCHED ROOF WITH TILES
2
1 cm
Y
X
OPTION
10
