6.5 Mounting other solar panels on the rail

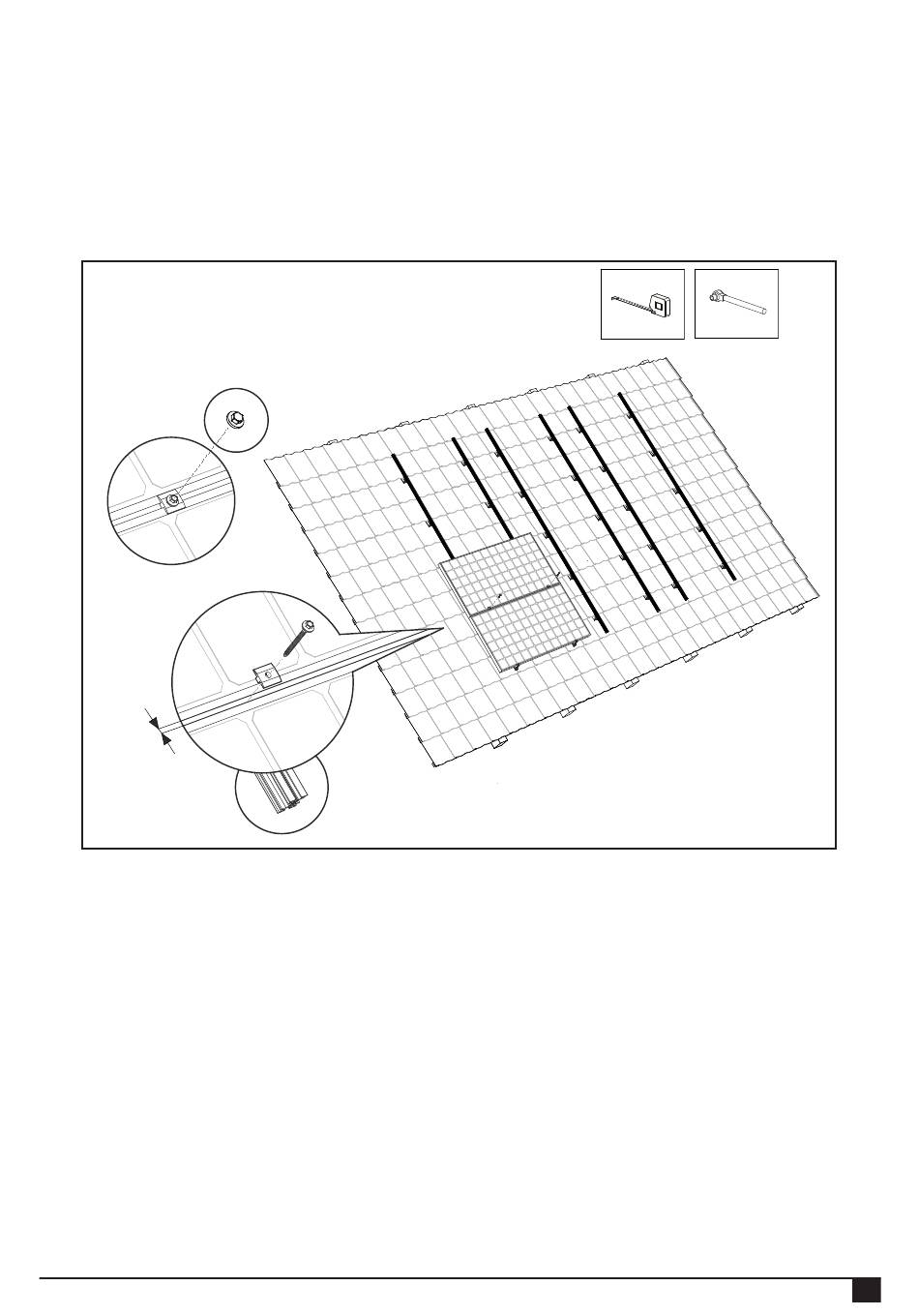

Place the second solar panel on the mounting rail and slide it towards the first, until a gap remains of about 7mm. Then
screw the mounting screw with a module clamping plate module into the mounting rail. The tightening torque of the screw
connections is 4,5Nm.
Make sure the solar panels are aligned before you tighten the screw! Repeat this with the remaining solar panels.
Option: Place the black color caps over the mounting screws.
OPTION
7 mm
Rev. 09.02.16
MANUAL MOUNTING SYSTEM FOR PITCHED ROOF WITH TILES
