6.3 Attaching mounting rail

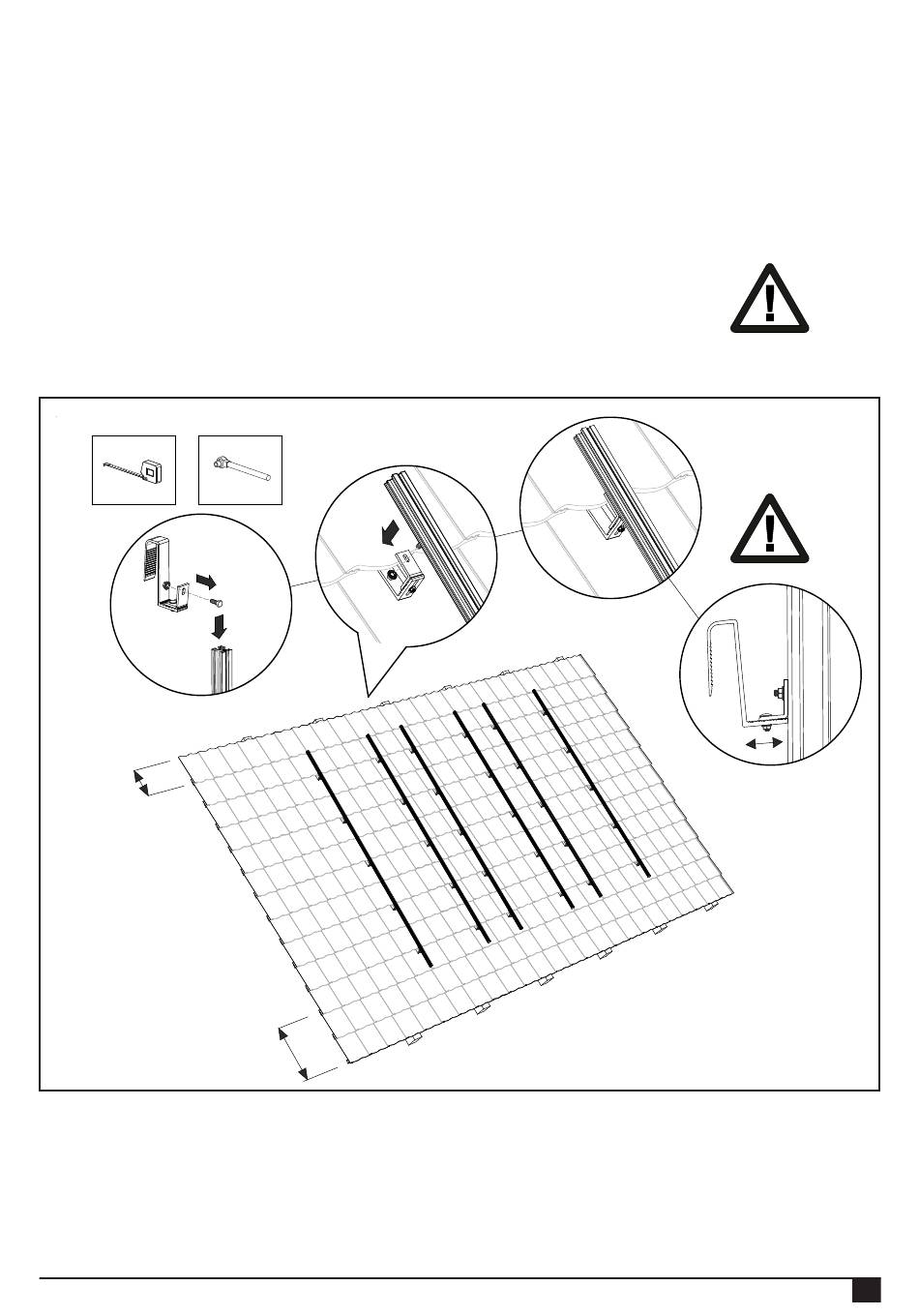

1. Disassemble the hex bolts M8x20 of the roof hooks and slide them with the head into the mounting rails.
2. Make sure that the end of the mounting rails protrudes min. 5 cm compared to the last roof hook and place the mounting
rail with hexagon bolts M8x20 onto the roof hooks.
3. Then screw the mounting rail onto the roof hooks using hex flange bolts M8. Make sure these are tight properly.
(tightening torque 4,5Nm)
4. Make sure that the mounting rail and the hook bolt are well aligned in comparison with each other and that the mounting
rail is properly positioned on the roof hook.
* See also Tips and Techniques.
Make sure the mounting rails are straight next to each other in connection with the alignment
of the solar panels!
3
2
1
4
4 cm
min. 30 cm
min. 30 cm
