3. Product Description

The ClickFit mounting system consists of patented roof hooks, mounting rails and the necessary installation materials to
mount the solar panels in landscape setup onto the mounting rails.. The ClickFit mounting system for a tiled roof can be
used for all types of tiled roofs regardless of the type of tile. For the different tiles 3 types of hooks are available: standard
(30-39 mm) / medium (40-50 mm) / wide (51-63 mm).
Roof fastening
The roof hooks are attached to the battens. Because the roof hooks are not attached to the roof spars or rafters, one can
determine freely the location of the solar panels on the roof. Differences in height in the roof can easily be filled by means of
the adjustable roof hook.
Attachment of the mounting rail
The mounting rail is attached to the roof hooks by means of a screw connection.
Attachment of the panels
The solar panels are attached by means of universal module clamping plates, end clamps and mounting screws. The
mounting screws are screwed directly into the mounting rail in which is a special thread is installed.

4. Parts overview

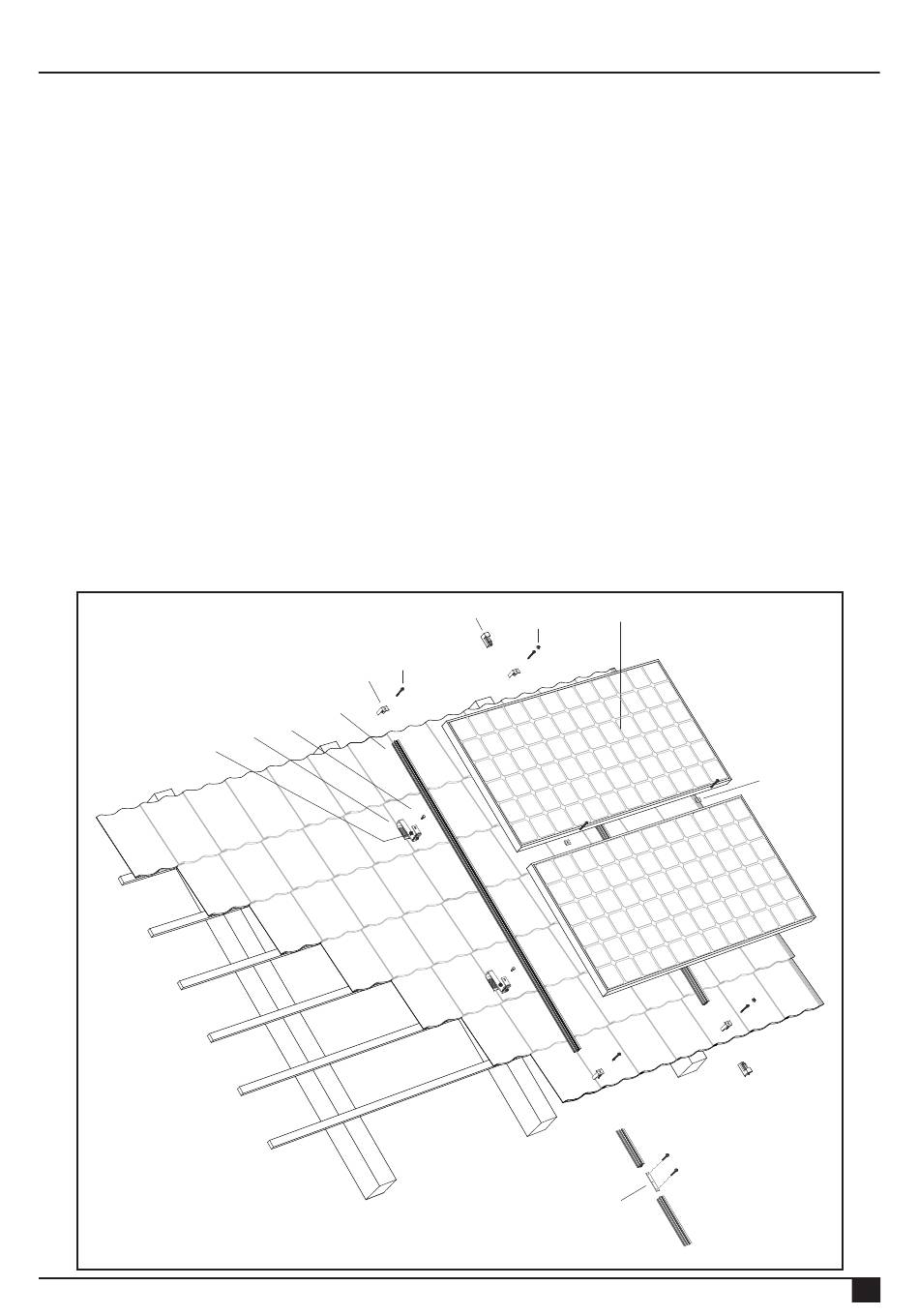

4.1 Exploded-view

10
1
11
8
7
2
5
4
6
9
3
