20M4DX VSWR PLOTS

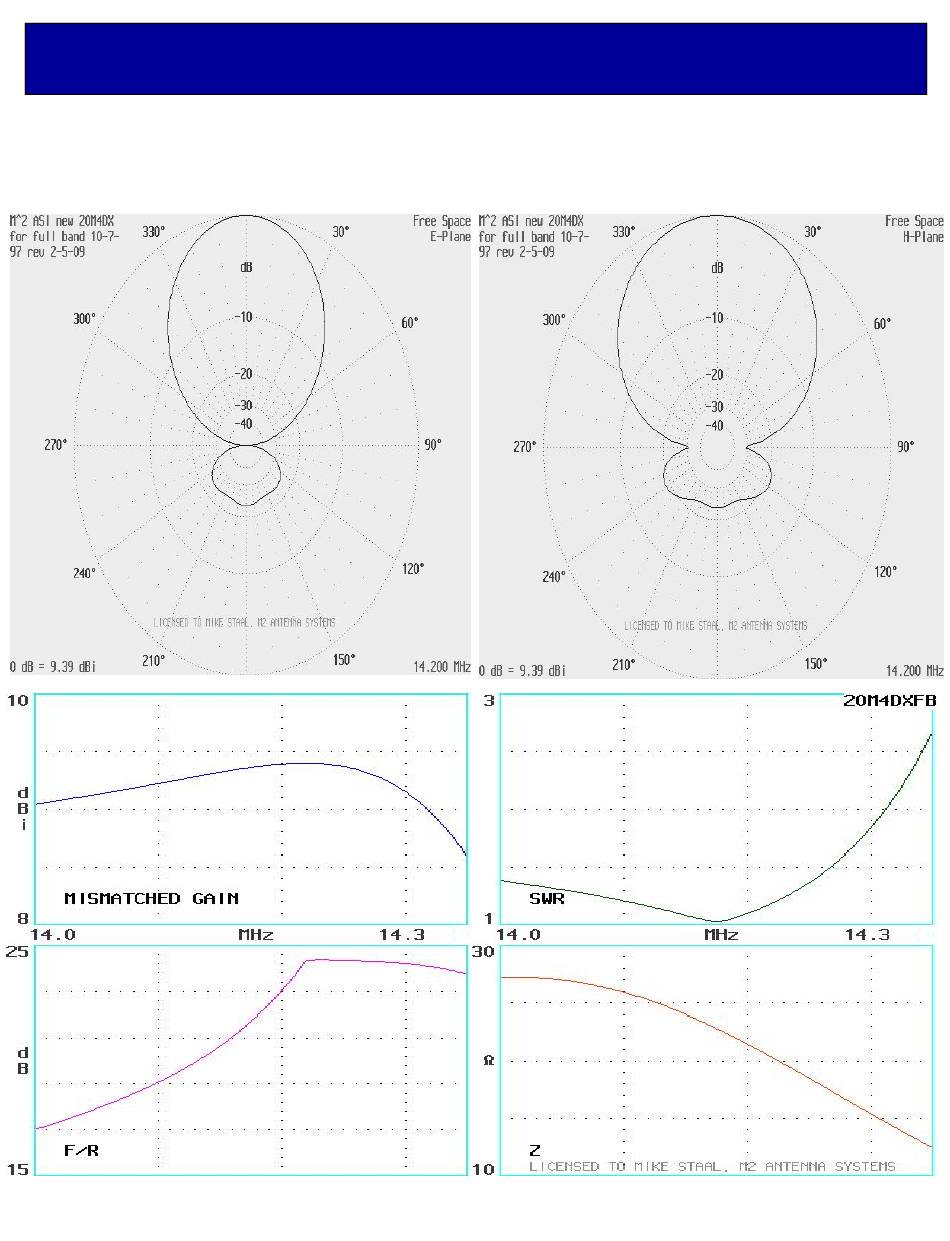

Below is the E plane, the H plane and the GAIN and VSWR plots for the FULL BAND tuning
adjustments. If LO FONE/CW tuning adjustments are chosen the gain will go up slightly and
the VSWR curve will flatten to 1.5: or better at the tuning edges.
