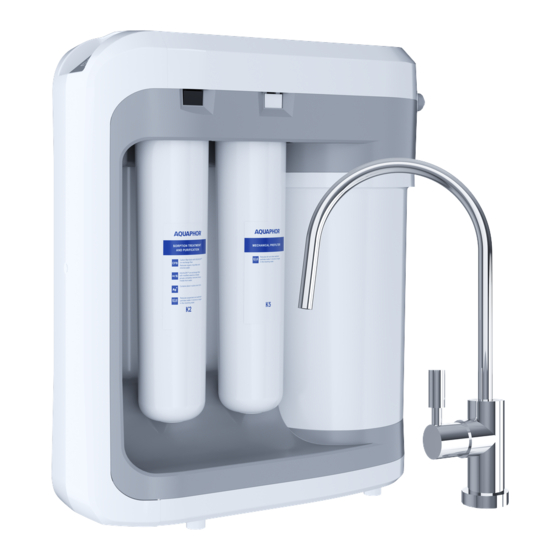

- Page 1 ® AQUAPHOR Water filter DWM-203 Performance manual Aquaphor LLC, Russian Federation...
-
Page 2: Technical Specifications
(water from artesian well, pits etc.), meeting the requirements, set by the present guidance. The action of DWM-203 is based on the transfer of water molecules through a semi-permeable membrane by pressure Membrane application that is greater than the osmotic one. -
Page 3: Supply Package
3. Supply package Item Quantity 1 Body assembly (DWM-203) (1) 1 pc Modules: Preliminary water treatment unit: 2.1.1 Replaceable filtering module К5 (5) 1 pc 2.1.2 Replaceable filtering module К2 (2) 1 pc Reverse-osmotic membrane unit 2.1.2 Replaceable membrane unit (3, 4) - Page 4 In lower main body, stand, there is a pump for increasing the water pressure in the DWM-203. In order that you can use clean water at any time in the required quantities, the DWM-203 is equipped with a storage tank for clean water.
- Page 5 Aquaphor or regional dealers of Aquaphor. Determine the comfortable location of the tap for clean water and DWM-203. In this case, pay attention to the fact that the supply tubes pass freely, without fractures and bends (fig. 3). DWM-203 must be removed or insulated from heat sources (cookers, boilers, hot water pipes, dishwashers or washing machines, etc.).
- Page 6 The installation of junction point* (fig. 4) • Turn the water off at the mainline on the highway of cold water-supply. • Open the kitchen mixer tap in order to depressurize water pipe. Inlet tap set to position «Closed» • Unscrew cap nut of flexible connection at the mainline on the highway of cold water-supply, stand for mixer tap.
- Page 7 Installation of a tap for clean water • Drill a 12 mm hole in the sink (countertop). • Attach the rubber shim (2), the decorative stand (3), the rubber gasket (4) to the threaded shank (1) of the valve and insert the tap into the wash hole. •...
- Page 8 • Install modules and utility blind flange, as shown in fig. 11. • Insert the plug of electric power supply into a socket, and the jack plug from the power supply to the DWM-203 connector (fig. 12). Utility blind flanges Fig.
- Page 9 During the first week of operation, periodically check DWM-203 for leaks. In the first week of operation of DWM-203, when the valve is switched, noise can be observed associated with the release of air from the internal cavities of the DWM-203.
-
Page 10: Module Exchange
7. Module exchange DWM-203 is fitted with indicating light and sound indication of module resources. Indicating light and sound indication of DWM-203 is configured to work with water corresponding to sanitary regulations and norms. The indicating light for each of the filtration units is individual (fig. 15): modules K2 and K5 of the prefilter unit correspond to indicators 1 and 4, to the reverse osmosis membrane unit- indicators 2 and 3. - Page 11 5 tonal signals will sound, the light indication will turn off and the washing mode of this unit will last for 30 minutes. • After the washing is complete, the DWM-203 will emit 5 tonal signals and automatically go into operation mode - filtration and water set, while the lights of the pre-treatment unit will flash (the light signal is duplicated by the sound), the remaining indicators will light continuously.
- Page 12 9. Storage and shipping regulations Storage time of DWM-203 before the start of operation - 3 years at a temperature of + 5 to + 38 ºС, in the original packaging in enclosed spaces with natural ventilation with a relative humidity of not more than 80%.
- Page 13 The service lifetime of the DWM-203 (except replaceable filter modules) is 5 years from the production date. At the end of the service lifetime of the DWM-203 is subject to replacement.
- Page 14 Do insert plug of power unit into inserted into the socket the socket The power supply plug is not Insert the power supply plug into inserted into the DWM-203 coaxial the DWM-203 coaxial connector connector The input tap of the The tap of the junction point...
- Page 15 DWM maintenance service Date Foreman Work type Note...
-
Page 16: Installation Certificate
Certification authority TECHNONEFTEGAS LLC Certification authority address 119991, Moscow, Leninskiy pr., 63/2, building 1. Manufacture: Aquaphor LLC, 197110, Russian Federation, Saint Petersburg, Pionerskaya str., 27 bldg. А. www.aquaphor.ru Distributor: WESTAQUA-DISTRIBUTION OÜ, Lev Tolstoi 2A, Sillamäe, Estonia 40231. Tel: +372 648 5799 www.aquaphor.com...
