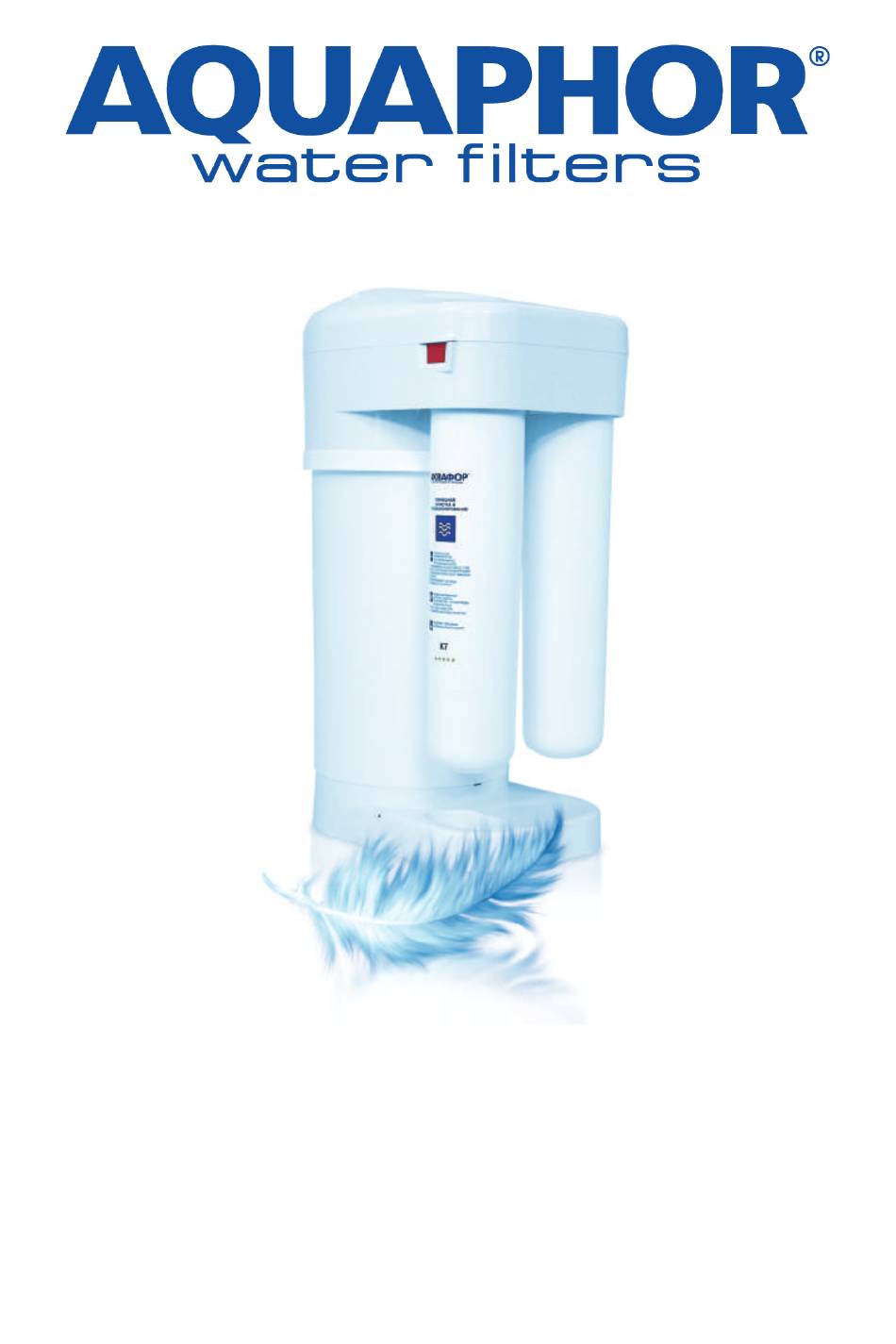

- Page 1 Water purifier EXTRA-SOFT Manual LLC "Aquaboss", Russia...
-
Page 2: Table Of Contents
Content Requirements for water supply ..............3 Specifications ....................3 Contents of delivery: ................... 3 The device and the principle of operation ..........4 Installation ....................4 Starting ......................4 Replacement of modules ................6 Rules of storage and transportation ............6 Security ...................... -
Page 3: Requirements For Water Supply
1. Introduction The Extra-Soft water purification unit (hereinafter referred to as the water purifier) was manufactured by Aquaboss Ltd. (Russia, St. Petersburg). The water purifier is designed for additional purification of drinking water from mechanical and colloidal particles, organic impurities, and also eliminates excessive hardness, flavour, smell and colour of water in the municipal and local water networks (artesian wells, wells, etc.), provided the requirements of this manual are met. -
Page 4: The Device And The Principle Of Operation

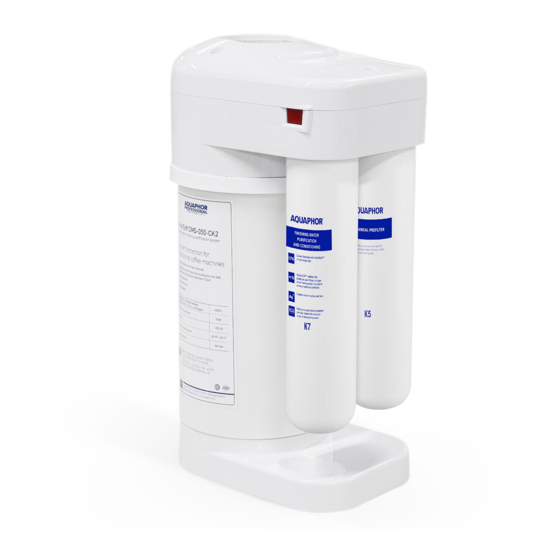

4. The device and the principle of operation Main parts: 1-Body 2-Preliminary treatment unit 3-Final treatment unit 1) The body of the water purifier (1) consists of an upper plate in which two collectors are fixed to connect the exchangeable filter modules. The top plate is covered with a decorative cover, fixed with three plastic clips. - Page 5 Tube with corner Service plug Inlet Outlet Fig. 3 Fig. 4 Step 2 Preparing the water purifier for operation 4 – The key for the JG tube • Remove the lid from the water purifier by turning the three latches counter-clockwise 90 °...
-
Page 6: Replacement Of Modules
7. Replacement of modules. See Fig. 6 To replace the modules K5 and K7: • Set the input tap on the connection node to the "Closed" position and open the fresh water tap to to relieve the pressure. • Press the stop button all the way down and while holding it, turn the filter module counter-clockwise and remove it. •... -
Page 7: Security
9. Security The water purifier is designed for post-treatment and softening of water, corresponding to SanPiN 2.1.4.1074-01. When installing a water purifier outside the central drinking water supply systems, it is recommended to perform an analysis of the source water for compliance with SanPiN 2.1.4.1074-01. •... -
Page 8: Manufacturer's Warranty
10. Manufacturer's warranty The manufacturer guarantees the compliance of the water purifier with the requirements of TU 3697-009-50056997-2010 provided the user observes the installation, operation, transportation and storage conditions specified in this manual. The service life of the water purifier (except for replaceable filter modules) is 5 years* from production date**. -
Page 9: Troubleshooting
Troubleshooting Malfunction Cause Measures to be taken There is no or not enough clean water. The module of the preliminary water Replace the module of the preliminary water treatment unit K5 is clogged treatment unit K5 The replaceable module of the final water Replace the plug-in module of the final water purification unit K7 is clogged treatment unit K7 Closed connection tap... -
Page 10: Service Maintenance Of Water Purifier
Service maintenance of water purifier Work Date Type of work Note executer... - Page 11 The coupon for the warranty repair of the water purifier Extra-Soft Serial No. Date of sale Seller`s stamp Seller`s signature Warranty period - 1 year from the date of sale Registration number of declaration of conformity: ЕАС N RU Д – RU.НО03.В.0047 Date of registration of the declaration: July 19, 2018.
- Page 12 Manufacturer: LLC "Aquaboss", Russia, St. Petersburg, st. (Санкт-Петербург, ул.) Sestroretskaya, 3 (Сестрорецкая, д. 3) by order of LLC "Aquafor" 197110, Russia, St. Petersburg, st. (Санкт-Петербург, ул.) Pionerskaya, 27 (Пионерская, д. 27), lit. A Companies, performing installation, warranty and service maintenance Engineering centre of LLC "Aquaboss"...
