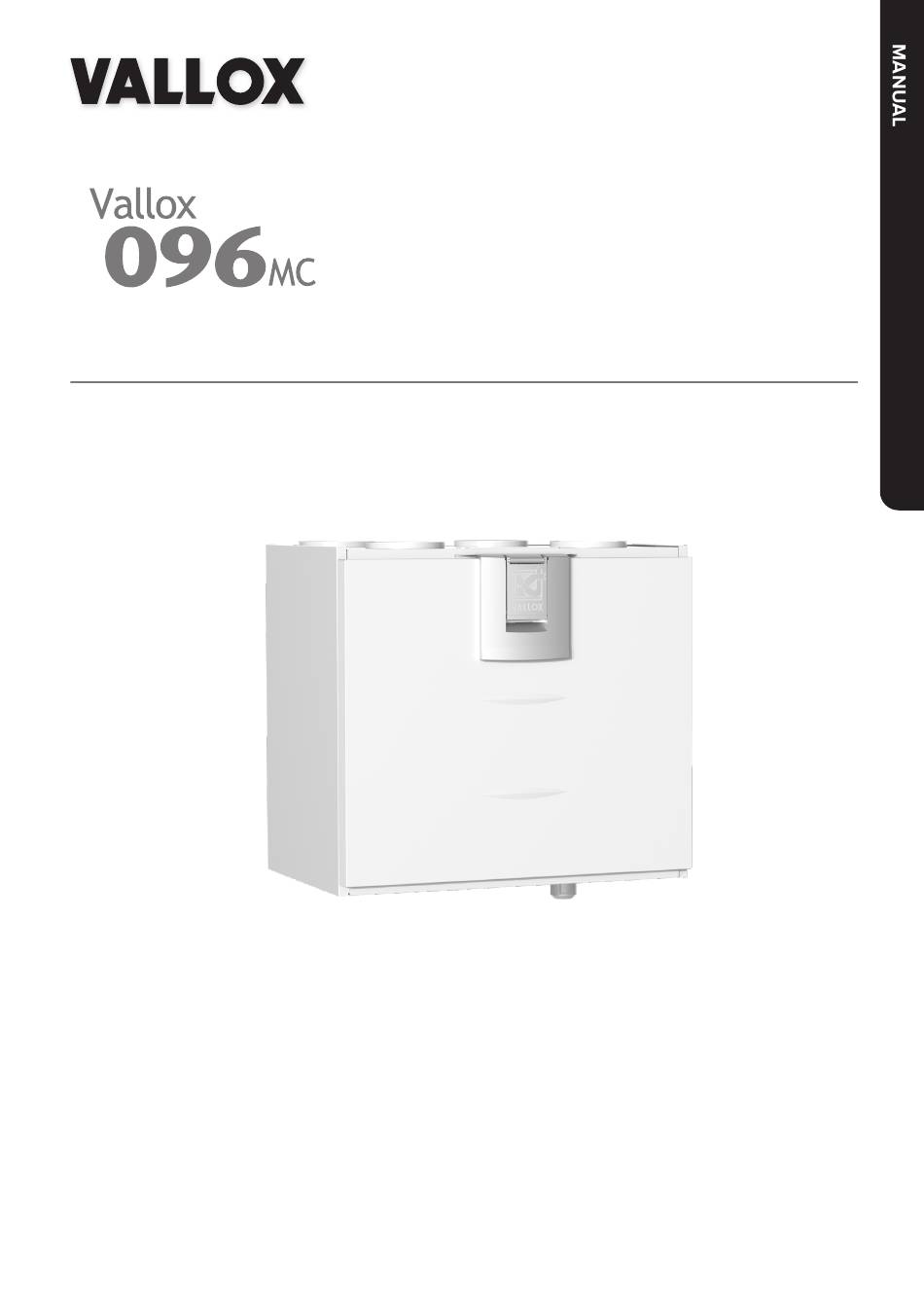

- Page 1 Model Document Vallox 096 MC R D2609 Vallox 096 MC L Valid from 24.02.2017 Type 3721-1 Updated 07.04.2020 Manual Ventilation unit...
- Page 2 (optional) (optional) Vallox Simple Control panel (ordered separately) Vallox ProControl panel (ordered separately) Vallox Capto PTC EC control hood, Vallox X-Line PTXP MC control hood, or Vallox Capto PTC EC Vallox X-Line PTXP MC Vallox X-Line PTXPA MC control hood (or- (optional) Vallox X-Line PTXPA MC...
-
Page 3: Fan Speed Adjustment
FAN SPEED ADJUSTMENT The fan speed of the Vallox ventilation unit is adjusted using a four- step control. The available speed options of the control switch are 1, 2, 3, and 4: Away mode. The ventilation efficiency can be temporarily reduced when the apartment is unoccupied. -
Page 4: Maintenance Reminder
The maintenance reminder will be set off automatically when the door of the ventilation unit is opened or the power is turned off. The maintenance reminder can also be set off manually. The Vallox Simple Control panel, and the Vallox Vallox Capto PTC EC control hood: X-Line PTXP MC and PTXPA MC control hoods, •... -
Page 5: Heat Recovery Cell
BEFORE BEGINNING MAINTENANCE WORK When you open the door of Vallox 096 MC, the safety switch (S) cuts the power. Despite this, disconnect the R model in the figure. power supply plug anyway. Always disconnect the power In the L model, the parts are mirrored plug before starting maintenance on the Vallox 096 MC. - Page 6 FANS Check the cleanliness of the fans when servicing the filters and the heat recovery cell. Clean the fans as required. R model in the figure. The fans are very sensitive to external impacts, and it is recommended that they be cleaned in place rather than In the L model, the parts are mirrored removing them.
-
Page 7: Condensing Water
To check this, pour some water into the pool. Clean as required. Water must at all times be kept out of the electrical system. See the condensing water connections on page 15. © Vallox Oy - All rights reserved... - Page 8 Supply air Extract air Duct outlets TECHNICAL SPECIFICATIONS Nimike Product number Vallox 096 MC R 3474600 Vallox 096 MC L 3474700 R model Air volumes Supply air 92 dm3/s, 100 Pa Inner diameter of the female collar: ø125mm...
- Page 9 , dB(A) Sound pressure level coming through the envelope of the unit in the room in which it is installed (10m² sound absorption) Adjustment position Adjustment position (V) 10,2 10,6 11,4 , dB (A) © Vallox Oy - All rights reserved...
-
Page 10: Internal Electrical Connection
INTERNAL ELECTRICAL CONNECTION (3721-1) - Page 11 3 and 5 from the MC unit’s control panel connector EXTERNAL ELECTRICAL CONNECTION With the Vallox Simple Control panel / Vallox PTXP MC, Vallox PTXPA MC cooker hood Control signal S Internal connection 11.2 VDC/ +...
- Page 12 EXTERNAL ELECTRICAL CONNECTION with Vallox ProControl panel Wiring between the control panel and the ventilation unit, NOMAK 2x2x0.5+0.5 Ventilation unit cable Control panel connector leave disconnected S/DI2 Cable types specified in the drawing are indicative The phase of 24VAC feed is connected...
-
Page 13: Installation Site
The outer diameter of the duct is 12mm Wall mounting Mount the Vallox 096 MC on the wall with a mounting Wall mounting plate plate, as shown in the adjacent figure. Make sure that the unit is horizontally level after mounting. - Page 14 Finished Finished plate on the ceiling, on the ceiling, ceiling ceiling max. 20mm. max. 20mm. Installation space Installation space of the siphon of the elbow Siphon 75mm 47mm Elbow Vallox Silent Klick...
- Page 15 Installation of the Vallox Silent Klick siphon on the If the Vallox Silent Klick siphon does not fit into the unit wall. The elbow underneath directly, the elbow can be installed at the bottom, and the unit takes less space the siphon can be installed on the wall.
-
Page 16: Exploded View And Parts List
20. Glass tube fuse 32mA slow 5x20mm ............952486 11. Bypass flap assembly, R model ..............3491200 www.vallox.com Vallox Oy | Myllykyläntie 9-11 | 32200 LOIMAA | FINLAND Customer service +358 10 7732 200 | Technical support +358 10 7732 270 © Vallox - All rights reserved...
