Vallox 096 MC R Operating, Maintenance And Technical Instructions

Low-energy ventilation unit with heat recovery and demand-controlled automatic melting
Hide thumbs Also See for 096 MC R:

Advertisement

Quick Links

Download this manual See also: Manual
© Vallox
1.09.601ENG
Updated:
5.11.2014
Valid from:
19.9.2013

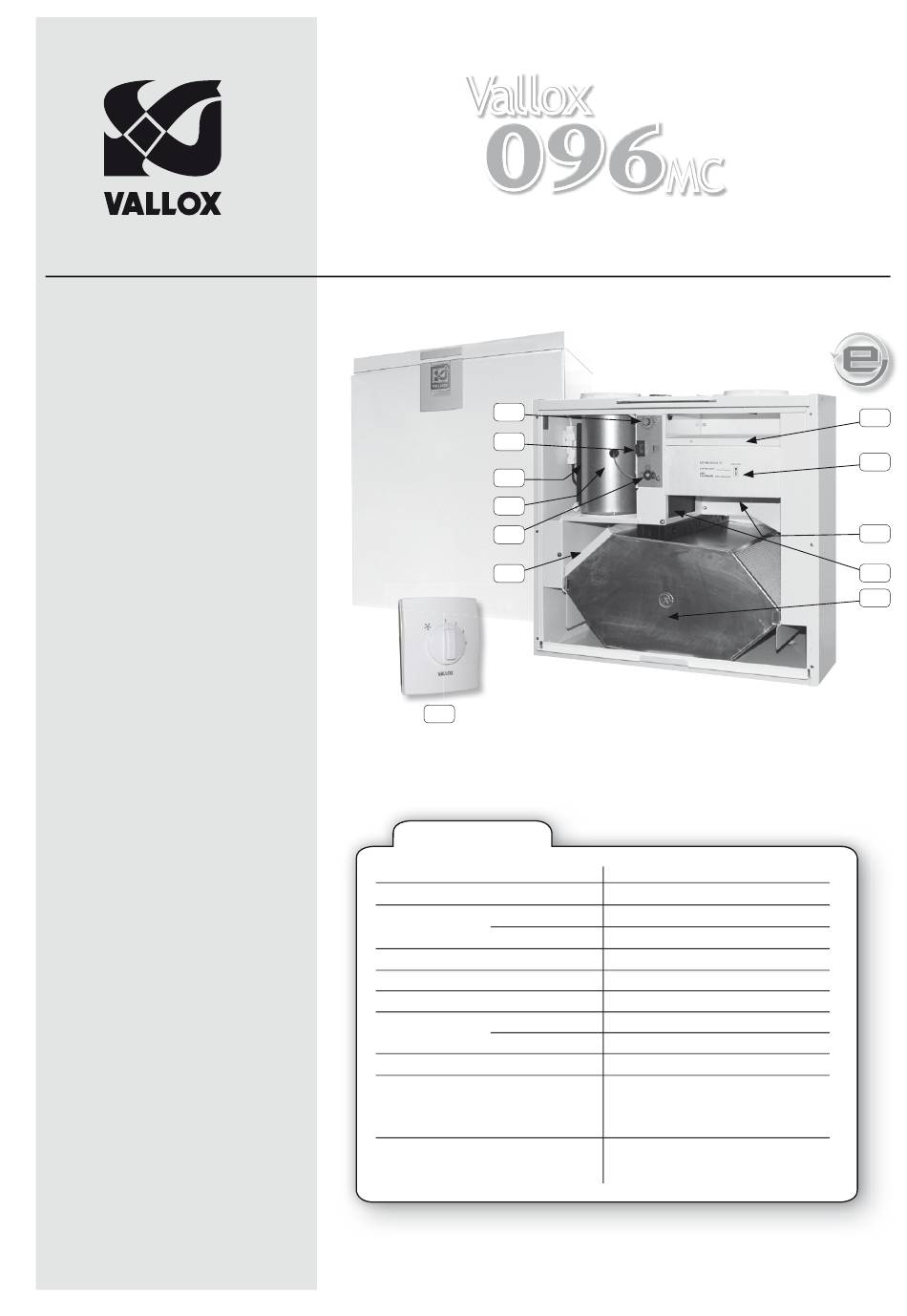

1
Extract air fan
(behind protective cover)
2
Supply air fan
(behind extract air duct)
3
Outdoor air fi lter F7
4
Heat recovery cell
5
Summer/winter damper
6
Outdoor air fi lter G4
7
Extract air fi lter G4
8
Post-heating radiator
(behind extract air duct)
9
Safety switch
10 R-model unit:
Adjustment of supply air heating
L-model unit:
Adjustment of supply/extract
air fl ow
11 R-model unit:
Adjustment of supply/extract
air fl ow
L-model unit:
Adjustment of supply air heating
12 SC controller
Vallox
096
Low-energy ventilation unit with heat recovery and
demand-controlled automatic melting
Operating, maintenance and technical instructions
10
9
8
2
11
7
12
TECHNICAL DATA
Electrical connection
Degree of protection provided by enclosures
Fans
Extract air
direct current (DC)
Supply air
Heat recovery
Heat recovery bypass
Electric post-heating unit (standard)
Filters
Supply air
Extract air
Weight (with package)
Ventilation power adjustment
Options
Code
3721
Models
VALLOX 096 MC R
VALLOX 096 MC L
MC
The fi gure shows the R model
230 V, 50 Hz, ≈ 5.1 A (plug)
IP 34
89 dm
/s 100 Pa
3
86 dm
/s 100 Pa
3
Cross-counter fl ow cell, > 80%
Automatic
900 W 3.9 A
G4 and F7
G4
53 kg
- SC controller (option)
- Cooker hood (option)
- Fireplace switch (option)
- Insulated attic fl oor penetration plate
- Ceiling mounting plate Vallox 096
6
3
1
5
4
