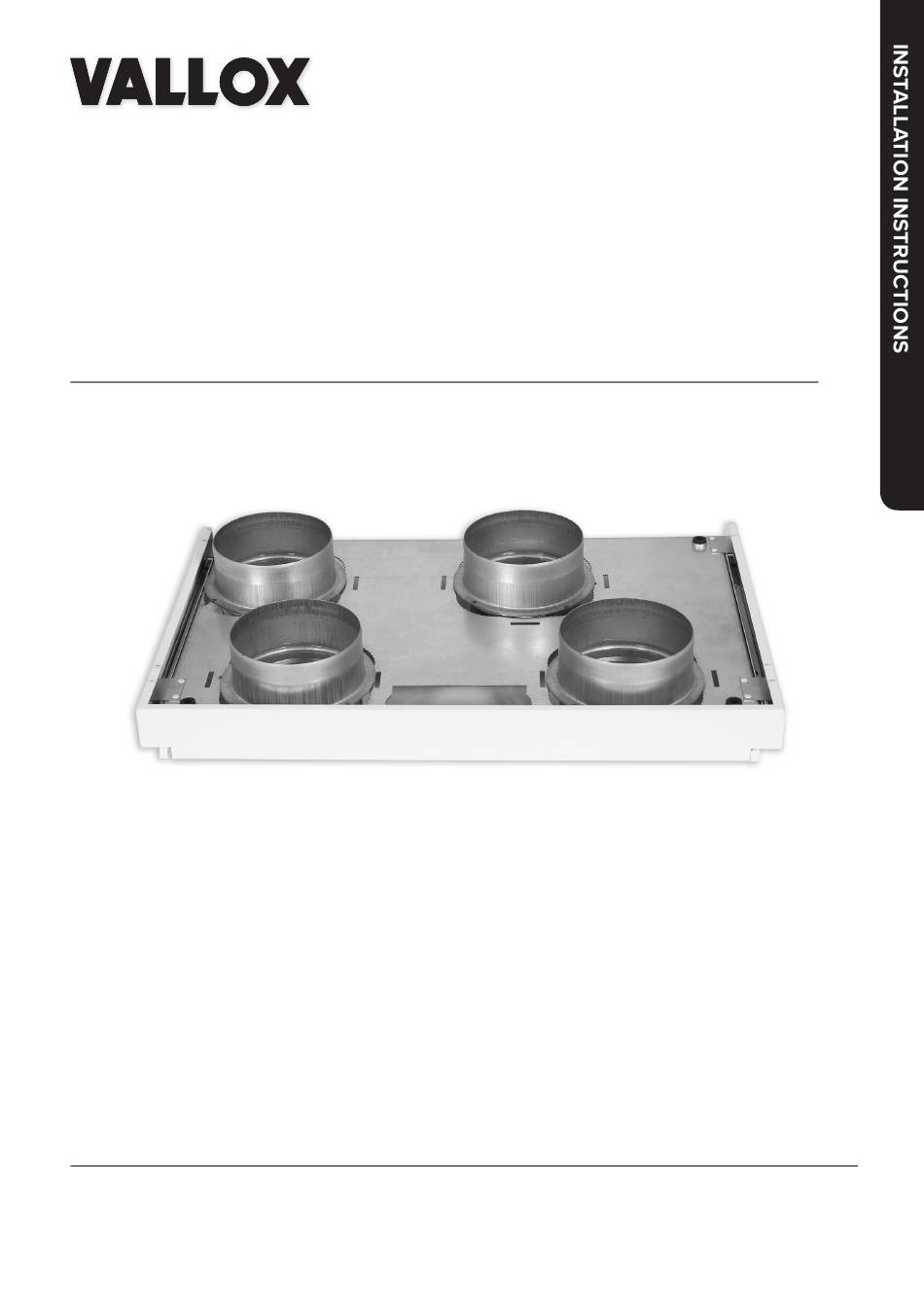

CEILING MOUNTING PLATE
VALLOX 096 MC AND VALLOX 096 MV
Installation instructions
Ceiling mounting plate
Model
Document
Vallox 096 MC
D4608
Vallox 096 MV
Valid from
01.10.2017
Updated
06.04.2018
