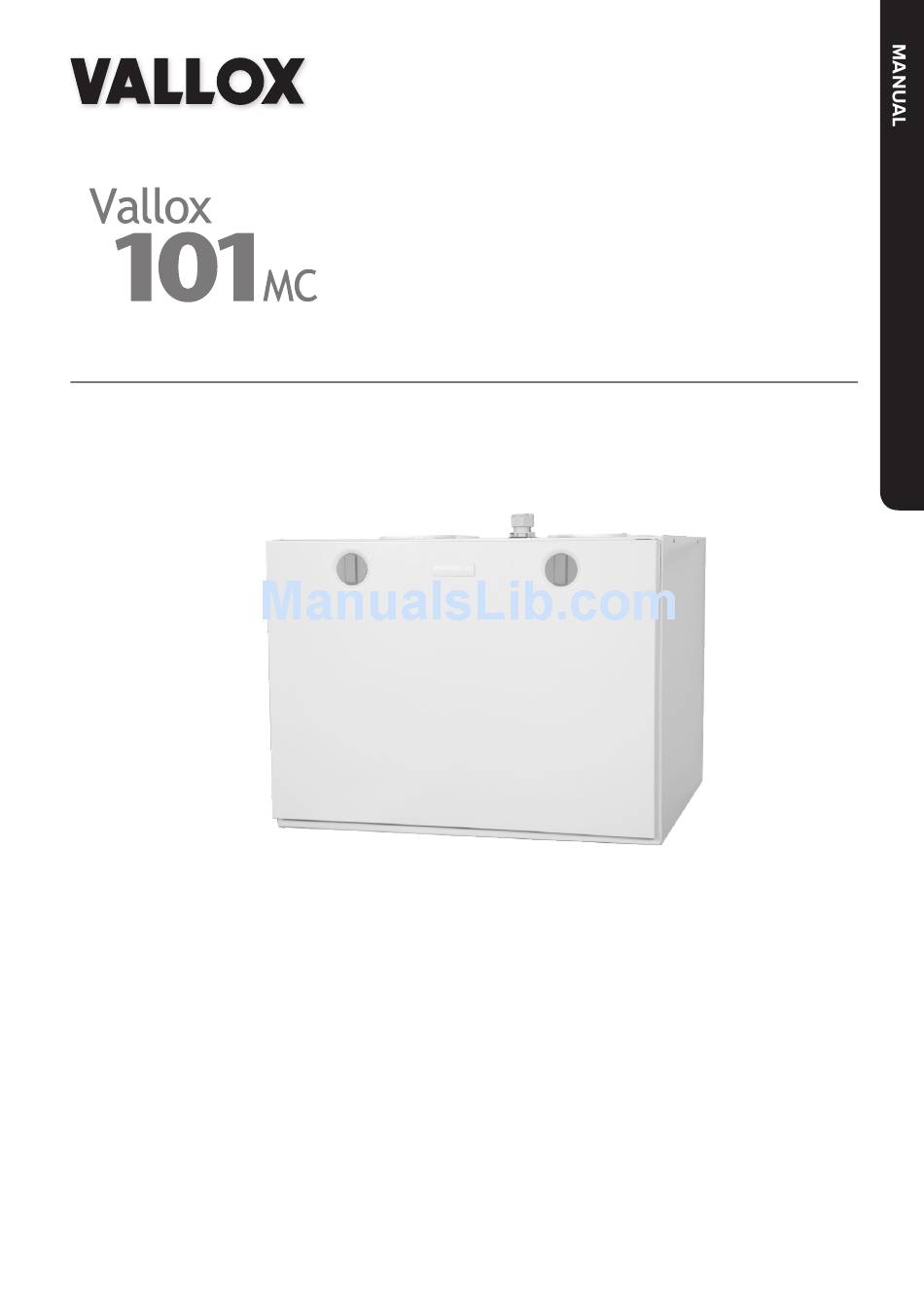

- Page 1 Model Document Vallox 101 MC R D4686 Vallox 101 MC L Valid from 02.10.2017 Type 3740 Updated 12.2.2018 Manual Ventilation unit...
- Page 2 (optional) Vallox Simple Control control panel (ordered separately) Vallox ProControl control panel (ordered separately) Vallox Capto PTC EC control hood, Vallox X-Line PTXP MC control hood, or Vallox Capto PTC EC Vallox X-Line PTXP MC Vallox X-Line PTXPA MC control hood (ordered separately)
- Page 3 FAN SPEED ADJUSTMENT The fan speed of the Vallox ventilation unit is adjusted using a four-step control. The available speed options of the control switch are 1, 2, 3, and 4: Away mode. The ventilation efficiency can be temporarily reduced when the apartment is unoccupied.
- Page 4 The maintenance reminder will be set off automatically when the door of the ventilation unit is opened or the power is turned off. The maintenance reminder can also be set off manually. Vallox Capto PTC EC control hood: The Vallox Simple Control control panel, and the Vallox X-Line PTXP MC and PTXPA MC control •...
- Page 5 BEFORE BEGINNING MAINTENANCE WORK The R model is shown in the figures. When you open the door of Vallox 101 MC, the safety In the L model, the parts are mirrored. switch (S) cuts the power. Despite this, disconnect the power supply plug anyway.
- Page 6 FANS The R model is shown in the figures. Check the cleanliness of the fans when servicing the filters In the L model, the parts are mirrored. and the heat recovery cell. Clean the fans as required. The fans are very sensitive to external impacts, and it is recommended that they be cleaned in place rather than removing them.
- Page 7 See the condensing water connections on page 15. L model R model 147,5 147,5 Installation of the Vallox Silent Klick Installation of the Vallox Silent Klick water seal on the wall. water seal on the bottom pool © Vallox Oy - All rights reserved...
- Page 8 Product title Product number HVAC code Vallox 101 MC R 4102638 7912117 indicate the total pressure accounted for by duct losses. Vallox 101 MC L 4102629 7912118 Air volumes Supply air 90 dm³/s, 100 Pa Extract air 98 dm³/s, 100 Pa...
- Page 9 4. Exhaust air from the apartment to the unit 154,50 443,50 The installation space required The installation space required by the Vallox Silent Click water seal by the Vallox elbow is 47 mm. is 73 mm. See Condensing See Condensing water connections, p. 15 water connections, p. 15...
- Page 10 INTERNAL ELECTRICAL CONNECTION 7034800A...
- Page 11 3 and 5 from the MC unit’s control panel connector EXTERNAL ELECTRICAL CONNECTION with the Vallox Simple Control control panel / Vallox PTXP MC, Vallox PTXPA MC cooker hood Control signal S Internal connection 11.2 VDC / +...
- Page 12 EXTERNAL ELECTRICAL CONNECTION with Vallox ProControl control panel Wiring between the control panel and the ventilation unit, NOMAK 2x2x0.5+0.5 Ventilation unit cable Control panel connector leave disconnected S/DI2 Cable types specified in the drawing are indicative The phase of 24 VAC feed is connected...
- Page 13 The outer diameter of the duct is 12 mm Wall mounting Mount the Vallox 101 MC on the wall with a mounting plate, as shown in the adjacent figure. Make sure that the unit is horizontally level after mounting. Wall structure The wall structure must be observed in the mounting.
- Page 14 Ceiling mounting by using The ceiling mounting plate is fastened to the M8 thread bars with the mounting supplies delivered with the a ceiling mounting plate mounting plate. NOTE! The end of the thread bars must (optional) be 5mm or less below the fastening nut (more detailed instructions are provided with the ceiling mounting plate).
- Page 15 Installation of the Vallox Silent Klick water seal on the wall Installation of the Vallox Silent If the Vallox Silent Klick water seal does not fit into the unit Klick water seal on the wall. directly, the elbow can be installed at the bottom, and the The elbow underneath the unit water seal can be installed on the wall.
- Page 16 19 NTC sensor (specify the sensor reference number in the order) ..946140 10 Filter (G4, extract) ..................... 978227 www.vallox.com Vallox Oy | Myllykyläntie 9-11 | 32200 LOIMAA | FINLAND Customer Service +358 10 7732 200 | Aftersales +358 10 7732 270 © Vallox - All rights reserved...
