METIS M3F1
Electrical Connection

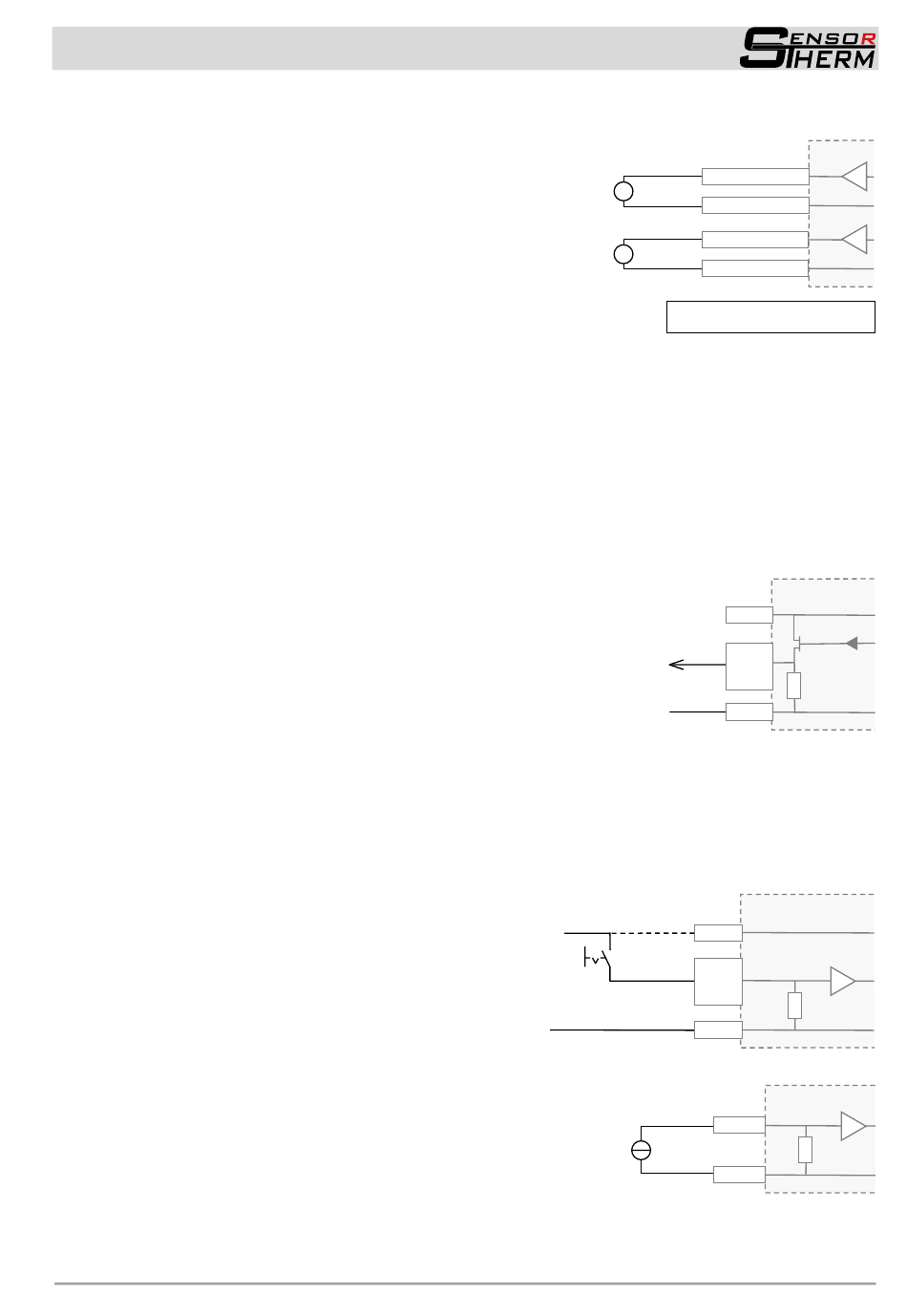

Analog Output 1 and 2

4.1.2
The analog outputs are adjustable (e.g. for a temperature dis-
play device) to:
 0–20 mA or 4–20 mA
Furthermore, the following adjustments can be done:
 Analog Output 1 always provides the measured tempera-
ture (always the temperature selected and displayed on the
device display and the control window in SensorTools; see
also 7.2.2 Control window).
(Note: With older firmware versions, the same settings are
possible as at analog output 2. A firmware update to the lat-
est version eliminates this possibility and prevents, that the output of analog output 1 is accidentally
different to the displayed temperature signal. Firmware update see section 8).
 Analog Output 2 can be assigned to provide different signals:
- Flame temperature
- 2-color temperature
- 1 channel temperature (optional channel 1 or 2)
- Device temperature
- Control output (= manipulated variable) when equipped with PID controller

Configurable Inputs / Outputs

4.1.3
3 ports are each available as:
 Digital output: output of a switching signal (invertible, see under
 Various settings 
7.2.3
- Device ready to operate (device ready and error-free after self-
test)
- Material detection (limit switch turns on when exceeding the
beginning of temperature range)
- Limit switch when a certain temperature threshold is exceeded
or falling below
- Exceeding the maximum allowed device temperature
- Signal strength too low (as dirty window alarm function: enables to detect the degree of contamina-
tion of the pyrometer's optics, viewing window or identify interferences (dust...) in the IR sensor's
sight path and trigger an alarm if necessary).
 Digital input: A voltage pulse of 24 V, pulse
length adjustable via software (minimum 3 ms,
factory settings 100 ms)
Inputs / Outputs
- Clear of maximum value storage (see 6.9)
- Load pyrometer configuration (see under

Configurable Inputs / Outputs
ter selector" or
 Analog input (only M3 and only on input / output 3, adjustable
via Software, see
source, some parameters can be adjusted externally between
their smallest and largest setting value:
- Soot factor (0 mA = 0.5; 20 mA = 2.5)
- Emissivity slope (0 mA = 0.8; 20 mA = 1.2)
- Emissivity for every channel (0 mA = 0.05; 20 mA = 1.2)
Logic NO / NC) at:

7.2.3 Configurable

debounce time enables:
 "parame-
7.2.4 Setups).
Analog Input): About a 0–20 mA current
A
A
+24 V
Push
Input 1-3
button
7.2.3
0 V
+I
0...20 mA
Green (+)
4...20 mA
-I
Yellow (-)
+I
0...20 mA
White-green (+)
4...20 mA
-I
Brown-green (-)
Note: The outputs are galvanically
isolated from the supply voltage.
+24 V
White
Max. 50 mA
Grey
Output
Pink
Blue
100 kΩ
0 V Brown
0 V
+24 V
White
Grey
Pink
Blue
>10 kOhm
0 V
Brown
Setpoint input
via external
0...20 mA
Blue
Current source
0 V
Brown
M3 / H3
OUT1
OUT1
OUT2
OUT2
M3
M3
M3
≤300 Ω
9
