Communication / Options

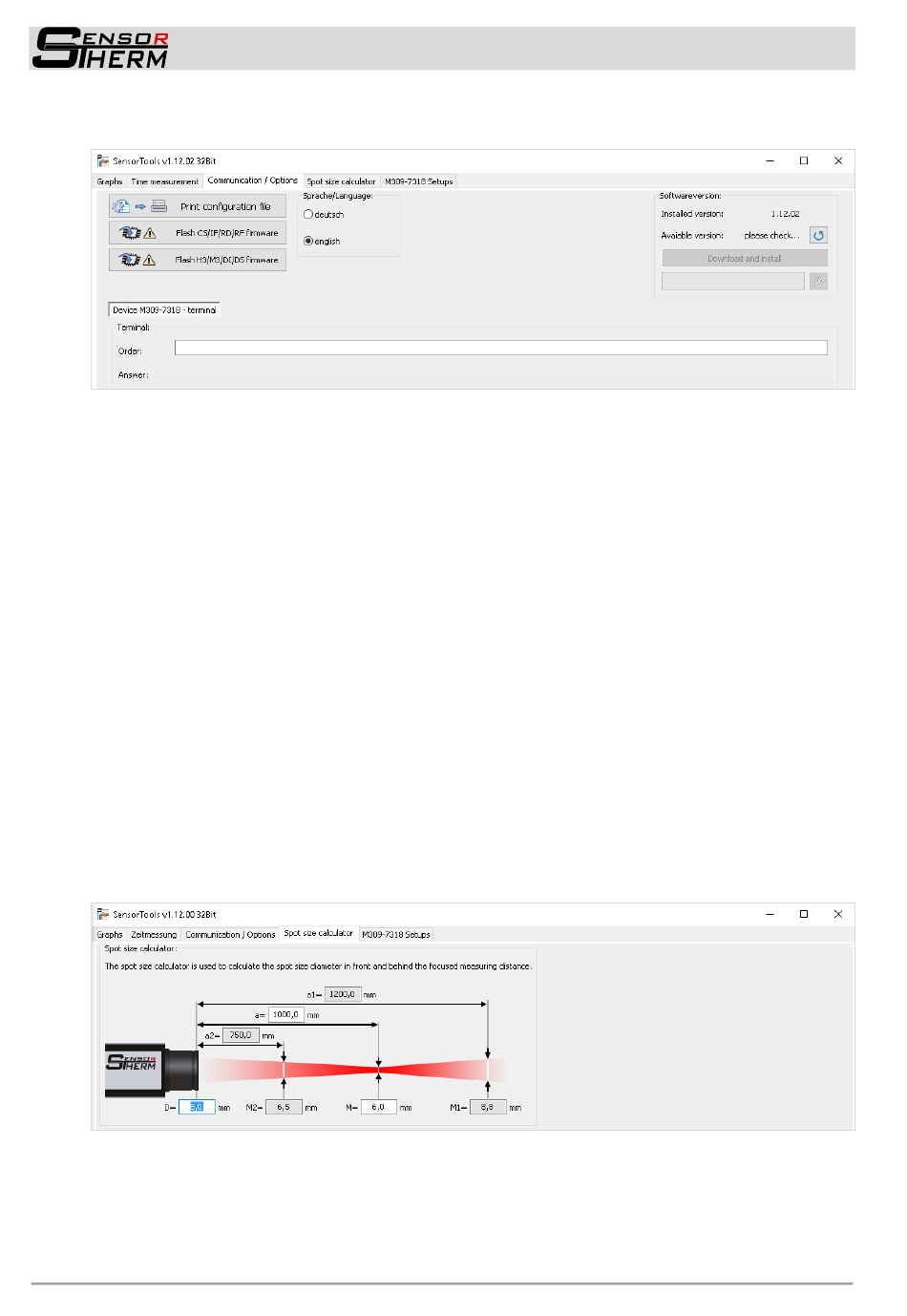

 Sprache/ Language: Selects between German and English user interface.
 Print configuration file has the same function as in the device configuration under "service func-
tions": Prints a stored device settings file.
 Firmware Update H3 / M3 / DI / DS starts the software SensorFlash (see 8) to update the firmware
of the pyrometer. Each SensorTools software has integrated the latest firmwares of its distribution
date. Otherwise the latest firmware is available on the Sensortherm homepage in the download area
under www.sensortherm.de/en/download-section.
- The pyrometer must be connected via SensorFlash, therefore the SensorTools connection to the
pyrometer will be disconnected when Firmware Update H3 / M3 / DI / DS is selected.
- Subsequently the software SensorFlash is opened (see 8). Via this software the pyrometer must
be connected, the flash file must be selected and the flash operation can be performed.
 (Firmware Update IF / RD / RF is used to update the PID program controller Regulus RD or RF or the
digital display IF0000)
 Software version: Clicking on "Please check" checks whether a SensorTools update is available. If
a newer version than the Installed is available, the Download and Install button is activated.
 Terminal: The terminal field is a service field to communicate with a connected Sensortherm pyrome-
ter via interface commands (see
Type in commands without device address.
7.5

Spot Size Calculator

 Spot size calculator: The spot size calculator is used to calculate the spot size diameter in front and
behind the focused measuring distance (see 5.6.1). To do this, fill the white fields with the basic data
(see 5.6 Spot Size Tables), then values in the gray fields can be calculated.
32
11 Communication via Serial Interface / Interface Commands).
METIS M3F1
SensorTools Software
