7.2

Software Window

The most measuring tasks can be done with the software default settings, but customized settings uti-
lize the full capabilities of pyrometer and software.
Control window

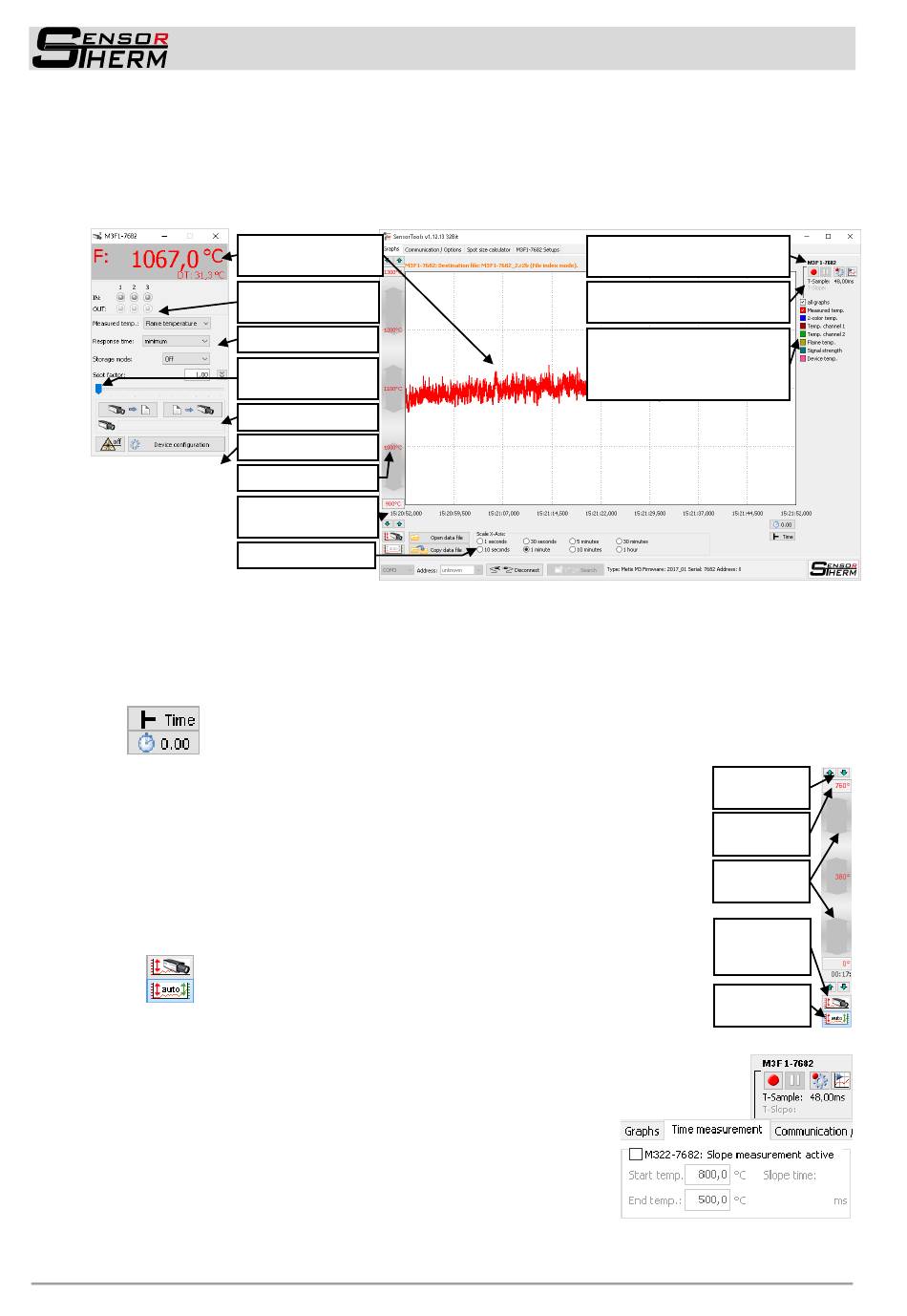

Main Window  Graphs
7.2.1
The graph window in the main window shows the temperature profile in time.
 The time axis (horizontal axis labeling of the X-axis) indicates the current time.
 Scale X-Axis allows to set the time at which the graphs window is filled with measured values. If the
time is changed, the graph rebuilds itself from the window center.
-
-
 Scale the graph: Beginning and end of temperature scale (left) and control out-
put (right) scale can be adjusted to represent the relevant area reasonable
- Scale per mouse click: With the green arrows of the upper and lower scale
range is changed
- Scale per entry: The upper and lower temperature can be entered via the
keyboard.
- Scale with mouse drag: With click, hold and drag on the gray arrows, the
start and end or the entire area can be moved.
- Automatic scale: automatically adjusts the scale (+10°C above the maxi-
mum value and -10°C below the minimum value):
- reads out the pyrometers temperature range
- selects the range from all selected display graphs and always the
highest measured value.
 Information field
- M3F1-7682 in the example on the right shows pyrometer model and serial number.
- The sampling time T-Sample Shows the time between the last two received
measured values.
- When the slope time measurement is activated, the slope time
T-Slope shows the time elapsed between the start and the end
temperature. The settings can be found in the "Time measure-
ment" window.
20
Measuring temperature
numerical / graphical
Display of active
inputs / outputs
Measurement settings
Measurement settings
(extendable)
Parameter quick save
Device vonfiguration
Temperature scale
Time axis
(current time)
Time axis settings
rebuilds the graph from the left.
Sets a recording time to 0 (has only effect in the playback file)
SensorTools Software
Main window
Data recording, data recording
settings, data playback
Information to sample time,
control time and slope time
Select display graphs (right click
to change the color settings of
the graph), activates or deac-
tivates graphs
METIS M3F1
Scale per
mouse click
Scale per
entry
Scale with
mouse drag
Adapt to
pyrometer's
temp. range
Automatic
scale
