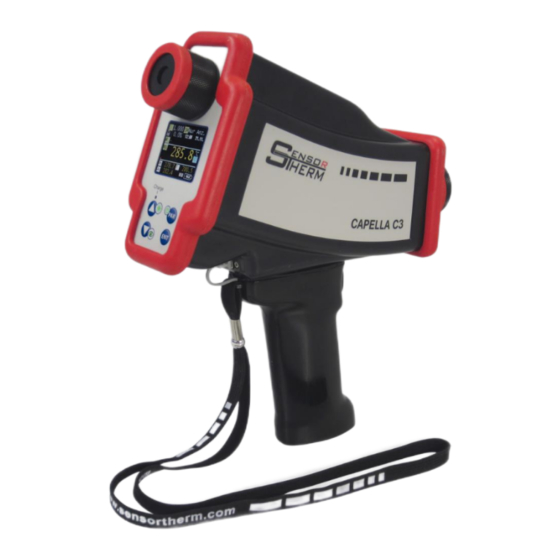

- Page 1 Pyrometers CAPELLA C3 Series 1-color radiation pyrometers C309 / C316 / C318 2-color pyrometers C311 / C322 Operating Manual...
-
Page 2: Table Of Contents
Pyrometers CAPELLA C3 Series Content Content 1 General ............. 3 5.6.3 Settings / Key Functions ....... 14 1.1 Information to this Manual ......3 5.6.4 Factory Settings ........14 1.2 CE Conformity ........... 3 5.7 Menu Items / Parameters ......15 1.3 Limitation of Liability ........ -
Page 3: General
Pyrometers CAPELLA C3 Series General General Information to this Manual This manual is valid for the products listed on the front page, using original parts from Sensortherm. This manual enables the safe and efficient use with the device. The manual is part of the instrument and has to be kept in a location where users always have access to. -
Page 4: Copyright
Pyrometers CAPELLA C3 Series General Copyright This manual is protected by copyrights and are intended solely for internal purposes. It is not permitted to transfer these instructions to third parties, duplication in any kind and form - includ- ing excerpts - as well as recovery and / or notification of contents without written permission of the man- ufacturer, except are internal purposes. -
Page 5: Safety
Pyrometers CAPELLA C3 Series Safety Safety Use of the Manual ▪ Any person who is tasked to carry out work with the device must have read and understood the operat- ing manual before beginning. ▪ Operation and maintenance of the system may only be performed by trained personnel. -
Page 6: Identification Label
Pyrometers CAPELLA C3 Series Safety Identification Label The type label on the rear bottom side of the device contains the following information: 1) Manufacturer SensorTherm GmbH 2) Series / order number (decoding see chapter 7.2) Capella C316 03501800572130-A 3) CE marking and product marking crossed waste container Temp. -
Page 7: Overview
If necessary, mask the poles. Overview Intended Use The here described Capella C3 series pyrometers are fast measuring devices with small spot sizes for non-contact infrared temperature measurement. With their short-wave spectral range, they are suitable for measuring metals, ceramics, graphite and similar. -
Page 8: Commissioning
Pyrometers CAPELLA C3 Series Commissioning Commissioning In delivery state the rechargeable battery is already installed in the device in the handle, but can only be used after the Remove isolator has been removed. To do this, use a suitable screw- isolator driver or a coin (2€... -
Page 9: Display Size
Pyrometers CAPELLA C3 Series Device Operation Display Size Large display Detailed display Ɛ 1.000 Automat. Ɛ 1.000 Automat. For the display on the back of the de- 54.4 vice, 2 display sizes with more or less 09:11 8.10. °C details can be selected (selectable –... -
Page 10: Measured Value Display / Measured Value Colors
Pyrometers CAPELLA C3 Series Device Operation 5.3.2 Measured Value Display / Measured Value Colors The main display can show: ▪ Current value (T) White measured temperatures: Yellow measured tempera- ▪ Maximum value In measuring mode, when the tures: In hold mode after re-... -
Page 11: Optics Adjustment / Spot Size
Pyrometers CAPELLA C3 Series Device Operation A measured value storage is always saved as a data set: ▪ Separately recorded: instantaneous value T, Min, Max, Avg, date, time, emissivity or emissivity slope (depending on device type and measuring mode). ▪ Continuously recorded: Respective instantaneous readings (regardless if the main display is set to T, Min, Max or Avg), date, time, emissivity or emissivity slope (depending on device type and measuring mode). -
Page 12: Alignment To The Measuring Object
Pyrometers CAPELLA C3 Series Device Operation Alignment to the Measuring Object It can be used either the view finder or the laser tar- geting light. When the laser targeting light is activat- 1250.0°C ed, the view finder is closed to prevent the eye from being endangered by possible laser back reflections. -
Page 13: Measurement Conditions For Safe Measured Value Acquisition
Pyrometers CAPELLA C3 Series Device Operation Measurement Conditions for Safe Measured Value Acquisition The non-contact temperature measurement can be performed with radiation pyrometers or 2-color py- rometers. Radiation pyrometers measure infrared radiation from objects in one spectral range, while 2-color py- rometers measure in two different spectral ranges simultaneously and determine the temperature from the ratio of the two radiation intensities. -
Page 14: Settings / Key Functions
Pyrometers CAPELLA C3 Series Device Operation 5.6.3 Settings / Key Functions Switching on / off and parameter menu: ▪ To switch on, press and hold for 2 s ▪ To switch off, press and hold for 5 s. ▪ Opens the device settings (not possible with active measurement). -
Page 15: Menu Items / Parameters
Pyrometers CAPELLA C3 Series Device Operation Menu Items / Parameters The settings are available with the latest firmware. If settings listed here are missing, the firmware is not up-to-date and can be updated via the SensorTools software (see 6.4.7). When switching on the de- vice, the current firmware version is displayed briefly. -
Page 16: Emissivity Table
Pyrometers CAPELLA C3 Series Device Operation ▪ Transmittance: If there is a viewing window be- Meas. parameters Transmittance Measur. Channel > (5.0-100.0%) tween the measuring object and the pyrometer, the Emissivity ratio > 100.0 transmittance of the window must be taken into ac- Emissivity >... -
Page 17: Measuring Locations
Pyrometers CAPELLA C3 Series Device Operation wavelength range (not Silver, oxidized 0.1-0.2 0.05-0.2 0.05-0.2 specified), e.g. because Steel, shiny 0.4-0.55 0.3-0.45 0.3-0.4 a reasonable measure- Steel, oxidized 0.8-0.9 0.7-0.9 0.7-0.9 ment in this wavelength Steel, rolled 0.8-0.9 0.8-0.9 0.8-0.9 or temperature range is Stoneware, glazed 0.86-0.9... -
Page 18: Measurement Data
Pyrometers CAPELLA C3 Series Device Operation 5.10 Measurement Data Allows deletion of all meas- Main menu Sub menu Settings ured values. Measuring loca- Main menu Measurement data Measurement data Display > tion names with the corre- Delete storage > Attention! All Meas. -
Page 19: Software Sensortools
Pyrometers CAPELLA C3 Series Software SensorTools Software SensorTools Installation With the minimum requirements devices can be connected, read out and configured. Min. system requirement: Pentium IV processor with min. 1.6 GHz and 2 GB RAM 20 MB hard drive capacity for the program, USB 2.0... -
Page 20: Connection Window
Pyrometers CAPELLA C3 Series Software SensorTools |INFO| to eventually shown warning message: In the Windows default setting, COM port drivers are installed with a latency time of 16 ms, which leads to slower data transmission and graphic display or recording of measured values than possible. -
Page 21: Control Window
Pyrometers CAPELLA C3 Series Software SensorTools 6.2.2 Control Window A separate control window provides all available measurement-relevant functions and settings. It can also be accessed in the Graphs tab: It is useful when switching to a different tab (e.g., the graph tab). -
Page 22: Measuring Location Tab: Manage Measurement Data And Storage Mode
Pyrometers CAPELLA C3 Series Software SensorTools Measuring Location Tab: Manage Measurement Data and Storage Mode Data import: Transfers Capella C3: Delete: SensorTools: ▪ Measurement data Transfer measuring all measurement data to Secure or load meas- the PC and then deletes... -
Page 23: Define / Editing Measuring Locations
Pyrometers CAPELLA C3 Series Software SensorTools Changed measuring location file names must be transferred to the de- vice in order to make them available there. Measurement data files can be deleted if they are no longer required, then they will be moved to the Windows recycle bin. -
Page 24: Overview
Pyrometers CAPELLA C3 Series Software SensorTools (directly in the viewer): opens from the last opened file path. key + : opens from standard working directory (standard working directories can be set in SensorTools in the "Communication / Options" tab, also see 6.4.6). -
Page 25: Customize Views / Measurement Data Evaluating
Pyrometers CAPELLA C3 Series Software SensorTools 6.4.3 Customize Views / Measurement Data Evaluating Hide (inte- Open a separate information window for each meas- Show separate Draw selection grated) info urement file and distribute it evenly and as large info windows... -
Page 26: Graphical Measurement Representation
Pyrometers CAPELLA C3 Series Software SensorTools 6.4.5 Graphical measurement representation Graphs tab: T-Sample (sampling time): Time Connected device, Displays temperature between the last two received Record measured data curves graphically. measured values. Data recording settings T-Slope (slope time): Time be-... -
Page 27: Data Recording Settings
Pyrometers CAPELLA C3 Series Software SensorTools The recording can also be started at the same time by pressing the Remote trigger in the Control Window if "Automatic recording by: Measuring started" is activated in the Data recording settings and "Create new file" under file options. -
Page 28: Default Storage Paths In Sensortools
Pyrometers CAPELLA C3 Series Software SensorTools ▪ Press “Copy data file” to copy one or separate files into another folder. Select the files you want to copy, the original files are not removed. In the next window a folder can be selected where files should be copied. -
Page 29: Service Functions
Pyrometers CAPELLA C3 Series Software SensorTools directory (or from the downloaded and saved file) by clicking on firmware update. The firmware is then automatically installed, a note box informs about the completion. ▪ Firmware update H3 / M3 / DI / DS: The update process of pyrometers of this type is done by calling the SensorFlash software, the further process is described in the device instructions. -
Page 30: Single-Point Pyrometer Adjustment (Only For 1-Color Pyrometers Available)
Pyrometers CAPELLA C3 Series Software SensorTools Single-Point Pyrometer Adjustment (only for 1-color pyrometers available) The single-point adjustment function can be used to automatically compensate optical losses in measurements through windows or lenses with unknown transmittance. For this pur- pose, a calibration source is set to the required process temperature, and then a temperature meas- urement through the windows or lenses is taken to newly define the measured value. - Page 31 Pyrometers CAPELLA C3 Series Software SensorTools The single-point adjustment function also can be performed manually with sliding controllers. In this case the numerical value of the adjustment can be observed. ▪ Preparation: First, the parameters emissivity, emissivity slope (for 2-color pyrometers), transmittance and spot size filling should be set to 100%, as well as switch off the maximum value storage and set the response time to 5 ms.
-
Page 32: Technical Data
Pyrometers CAPELLA C3 Series Technical Data Technical Data Models Radiation pyrometers 2-color pyrometers C309 C316 C318 C311 C322 Temperature ranges 550–1400 250–1300 180–1300 600–1400 300–1000 [°C] 600–1600 350–1800 750–1800 350–1300 750–2500 400–2500 900–2500 500–1800 900–3000 * 1000–3300 * Temperature ranges 1112–2912... -
Page 33: Dimensions
Pyrometers CAPELLA C3 Series Technical Data Dimensions Device: 70.0 -2 mm Rechargeable battery: 1.5 +0.3 mm 18.5 ±0.3 mm 3.5 ±0.5 mm Composition of the Type Number The equipment version of the pyrometer is encoded in the 20-digit model number as follows (Example type number C309 with 600–1600°C;... -
Page 34: Maintenance
Pyrometers CAPELLA C3 Series Maintenance Maintenance Cleaning CAUTION| Turn off the device before performing any maintenance. Switch off the device before beginning any maintenance work (see 5.2) in order to prevent the risk of in- jury from accidentally activated laser light. -
Page 35: Index
Pyrometers CAPELLA C3 Series Index Index Measurement conditions for safe measured value acquisition ............13 Measurement data ..........18 2-color pyrometers ..........13 Measurement data and storage mode ....22 Measurement data file names, change or delete .. 22 Measurement data playback ......... 23 Adjusting the focus distance ......... - Page 36 Sensortherm GmbH Weißkirchener Straße 2-6 D-61449 Steinbach Tel: +49 (0) 6171 887098-0 Fax: +49 (0) 6171 887098-989 E-Mail: info@sensortherm.com Internet: www.sensortherm.com © Sensortherm GmbH Capella_C309_C316_C318_C318_C311_C322 (Jan. 27, 2023)
