METIS M3F1
Technical Data
9.1

Storage

Store packages under the following conditions:
 Do not store outdoors
 Store dry and dust-free
 Do not exposed to corrosive media
 Protect from direct sunlight
9.2

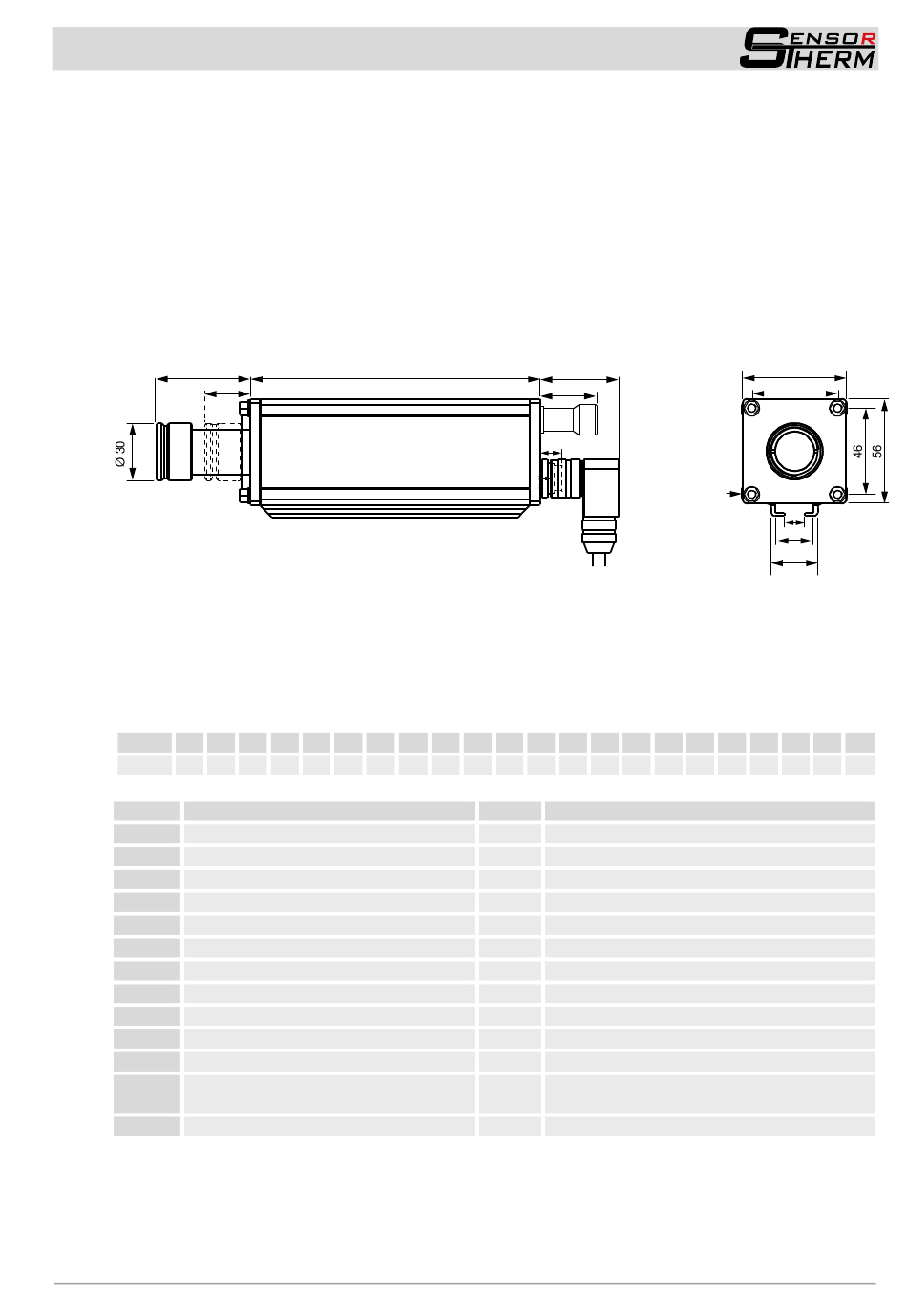

Dimensions

M3F1 with manual focusable optics, thru-lens view finder and connection cable AL11:
50
24
9.3

Composition of the Type Number

The equipment version of the pyrometer is encoded in the 22-digit model number as follows
(Example type number M3F1 with 750–2000°C; through-lens view finder, optics):
Digit 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22
Expl.: M 3
Digit Indication of the various points
01-02 Series M3
03-04 Spectral range
05-08 Beginning of temperature range [°C]
09-12 End of temperature range [°C]
13 Sighting
14 Serial interface
15 Lens type
16-17 Minimum response time
18 Configuration
19 Digital display
20 Analog outputs
21 Digital input / digital output
22 Measuring distance / optics
153
F 1 0 7 5 0
 Avoid mechanical vibrations
 Storage temperature: -20 to 85°C
 Relative humidity: max. 95%,
no condensing conditions
42.5
30
12
2 0 0 0 2 5
Code Meaning / Example
M3 Metis M3
F1 0.75–1.1 µm / 0.78 + 0.99 µm (2 x Si)
0750 750°C
2000 2000°C
2 Through-lens sighting (view finder)
5 RS232 / RS485 (switchable)
2 Focusable optics
13 <1 ms
0 Standard (12 pin connector)
0 Without display (12 pin connector)
2 2 analog outputs
3 3 digital inputs / outputs / 1 analog input
0–20 mA (with 12 pin connector)
A Optics A (340-3000 mm, integrated optics)
56
46
M5
11
20.2
25
2 1 3 0 0 2 3 A
35
