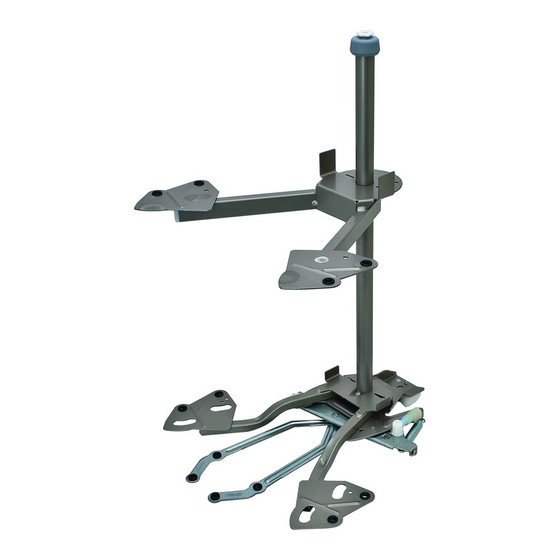

- Page 1 Mounting and Adjustment Instruction for corner carrousel fitting...
- Page 2 In addition to this general mounting and adjustment cabinet doors are specified. This document indica- instruction you need the fitting specification docu- tes also, if you have to do some additional adjust- ment, where the individual drilling dimensions for ments at the cabinet design. If you don’t have it, the cabinet bottom, cabinet top, side walls and please contact your Hafele sales rep.
- Page 3 1. Preparing cabinet bottom and side wall/cabinet top Preparing cabinet bottom Drill three holes into the cabinet bottom Specification Document according to the illustration included in the fitting specification. If a top mounting bracket is specified For cabinets with cabinet top please proceed (mainly frameless cabinets) please proceed like this: like this:...
- Page 4 2. Assembling carcass and cam plate Assembling carcass After having drilled all holes, assemble the carcass. Mounting of cam plate Press the cam plate into the drilled holes in the bottom of cabinet interior and fasten with four 3.5 x 30 mm (#6 x 1 1/8’’) flat head screws (customer supplied).
- Page 5 3. Installation of top mounting bracket only if specified If cabinet has a top, proceed with 4.Installation of fitting, (page 6). (--> mainly face frame cabinets) Installation of top mounting bracket is only applicable if cabinet has no top. (--> mainly frameless cabinets) Fasten top mounting bracket with 6.2 x 10.5 mm Euro flange head screws (customer supplied).
- Page 6 4. Installation of Fitting Mounting the pole Place the pole with the upper pole bearing into the cam plate. Push both connection rods com- pletely to rear while turning the pole approx. 90° to the left until the guide roller is positioned on the outer edge of the cam plate and the axle firm- ly clicks into position.
- Page 7 5. Mounting doors Preparing doors Drill 4 holes into the doors according to the Specification Document illustration included in the fitting specification. Screwing door brackets onto the doors Screw first the lower door brackets (unhanded) and then the upper door brackets (left and right!) onto the doors (customer supplied).
- Page 8 5. Mounting doors Hanging doors onto the door holders Hang doors onto upper door holder and lower door holders with the locating pins. Clip the connecting rods into the bottom door bracket. Securing the door To avoid unintended unhinging of the door, attach securing caps onto lower locating pin.
- Page 9 6. Mounting shelves / Fixing transport lock Plastic Shelves, Arena Shelves, Chrome/Wire Shelves or Pro Arc Shelves Attach shelves to pole according to the mounting instruction coming with the shelves. Wooden shelve If you use your own wooden shelf, you need a shelf support supplied by Hafele (including a shelf drawing).
- Page 10 7. Mounting of support device / Transport notices Attention on the top mounting bracket! If you use a top mounting bracket: Do not carry the cabinet from the top mounting bracket. Do not bend the top mounting bracket. Do not put load on the top mounting bracket (i.e.
- Page 11 8. Adjusting the doors Adjusting the Doors should be paid to adjusting the middle foot for sup- The doors can be adjusted independently of each port of the pole weight. other in all directions.Before making adjustments, When adjusting, first correctly align the right door make sure the corner cabinet is aligned exactly.
- Page 12 Adjusting closing speed of doors Closing Speed of Doors: You can adjust the closing speed of the doors without removing the fitting. Turn adjustment screw clockwise for quicker door-closing. For slower door-closing, turn adjustment screw counterclockwise. Damping of rotation speed: You can adjust the damping of rotation speed without removing the fitting.
