Häfele Nova Pro Scala Quick Start Manual

PRODUCT FITTING INSTRUCTIONS

Nova Pro Scala 186mm Height
554.33.501/554.33.503/554.33.504/554.33.505/554.33.507/554.33.508/554.33.509/
554.33.510/554.33.901/554.33.903/554.33.904/554.33.905/554.33.907/554.33.908/
554.33.909/554.33.910
> Height 186 mm
> Depth 450 mm
> Width 300 -1000 mm
> Set consists of:
1. Drawer Set
2. Runners x 1 pair
3. Front fixing clips x 2, front fixing clips 186mm x 2, and fixing screw set

Before you start

>
Unpack all items and check you have everything noted below - if you are missing something, please call 0800 1712908.
>
Make sure that you have all additional requirements as noted below, and a clean, dry area for installing.
>
Installing should be done in the stages shown.

Included in this pack

2

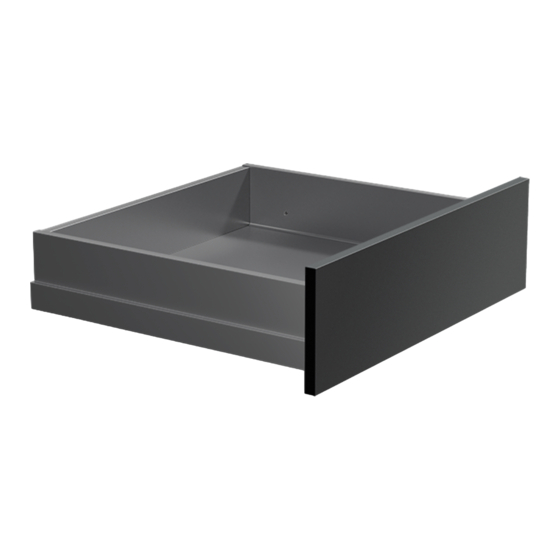

Drawer front not included, for illustration purposes only

Optional items

Runner drilling jig
A
558.18.125
Drawer front marking jig
B
558.18.070
If in doubt, please contact our Technical support team on
alternatively send your query by e-mail to
1
Head
Ø
2
8x 015.31.639 Hospa
screw, Ø 3.5 x 15 mm
Touch to open set
C
For drawers up to 600mm
551.91.182
For drawers up to 1200mm
551.91.183
Order online at www.hafele.co.uk
3
Length
Ø 7
Length
Body Ø 4.7
Ø
Thread Ø 6.0
8x 340.29.724 Varianta screw
length 13.5 mm

Tools to help with installation

D
0800 1712908
technicalsupport@hafele.co.uk
FITT_Ref: 105424 Issue-2
2x Front fixing clips
for 186mm
2x Front fixing clips
