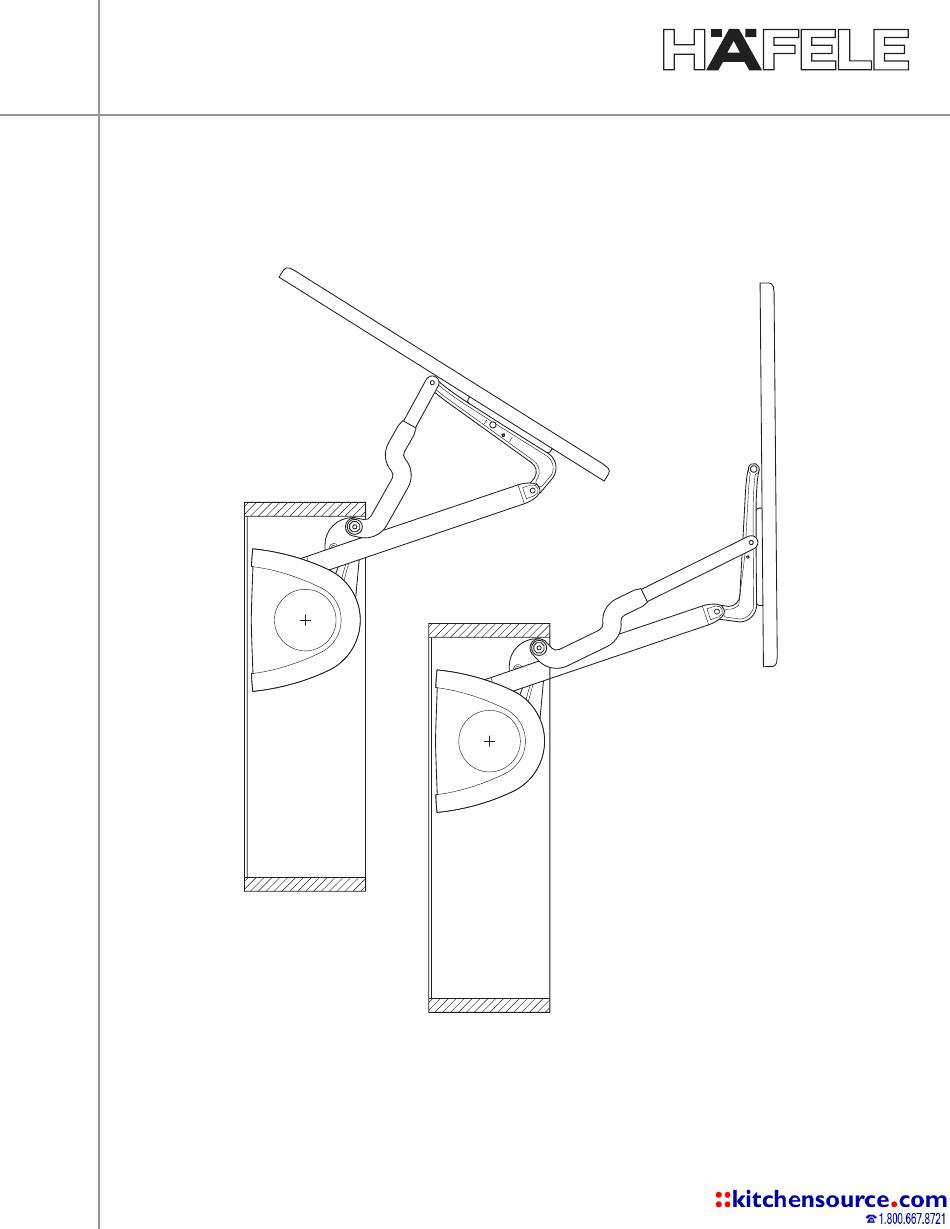

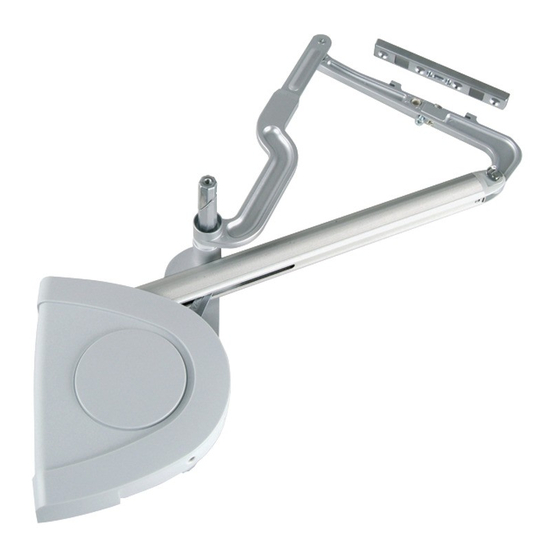

- Page 1 Mounting Instructions Item No.: 372.68 Series and 372.67 Series Lift-up Fittings – Verso and Strato Verso Strato...
- Page 2 Foreword By choosing the verso/strato lift-up fitting, you have opted for a fitting solution that is technically very advanced and mechanically very efficient. Your verso/strato lift-up fitting is manufactured with extreme care and precision and goes through numerous quality and safety checks in order to ensure that it operates smoothly and safely. IMPORTANT SAFETY NOTICE Installation must be carried out in accordance with the assembly instructions;...
- Page 3 Overview on construction sizes for lift-up fitting – verso Cabinet height 420 - 800 mm huwilift- verso strato View of right side. (left side symmetrical) ca. 110 min. 138 ca. 55 ca. 40 ca. 15 ca. 15 ca. 15 ca. 15 ca.
- Page 4 Overview on construction sizes lift-up fitting – strato Cabinet height 342 - 650 mm strato View of right side. (left side symmetrical) [ mm ] min. [ mm ] 13.5 +0.5 342 - 420 420 - 500 293.5 500 - 550 293.5 313.5 313.5...
- Page 5 Drill holes for fitting in accordance with the drilling diagram. Lift-up fitting verso/strato verso strato View of right inner side. (left side symmetrical) Design for all cabinet heights Drilled holes A= Ø 5 mm x min. X deep Drilling depth Schrankhöhe Cabinet height Hauteur de meuble...
- Page 6 Drill holes for flap according to the drilling diagram. huwilift- verso strato Design for particle board and MDF board. Cabinet height 420-800 mm Drilling diagram for reverse side of flap 13,5 13,5 A* and B* = observe overlay ! C = Drilling depth...
- Page 7 Drill holes for flap according to the drilling diagram. huwilift- verso strato Design for 20 mm aluminum profile. Drilling diagram for reverse side of flap Ø3.2 (M4) A* = observe overlay!
- Page 8 Drill holes for flap according to the drilling diagram. Lift-up fitting – strato strato Design for particle board and MDF board. Drilling diagram for 13.5 13.5 reverse side of flap A* and B* = observe overlay! C = Drilling depth 342 –...
- Page 9 Drill holes for flap in according to the drilling diagram. Lift-up fitting – strato strato Design for 20 mm aluminum frame profile. Cabinet height 420-650 mm Drilling diagram for reverse side of flap Ø3.2 (M4) A* = observe overlay ! 342 –...
- Page 10 Screw on fixation brackets. verso strato Design for particle board and MDF board. Design for aluminum frame profile. Left and right side on flap. Fixing set for fixation brackets ( Not included in Set, to be ordered separately! )
- Page 11 Screw on the base fixing plate and right/left adapter-plate. verso strato View of right side wall. (Left side wall symmetrical) The base plate can be used for both sides (right and left) Euro ø 6x12 (*16 mm) Euro ø 6x16 (*19 mm)
- Page 12 Install transversal stabilization bar. Lift-up fitting verso/strato verso strato Visual control: Has compression spring 1 fitted in traction lever 2? (If not, please do so.) Slightly loosen clamp screws 3. Connect traction lever 2 and stabilization bar 5.
- Page 13 0 mm ! Press traction lever 2 / stabilization bar 5 together (Spring tension) and engage successively with axis pieces 6 traction lever bearing 7. Fit into the cabinet without free play. Tighten both clamp screws 3 (2-4 Nm).
- Page 14 Screw on fitting. verso strato The fitting can be used for both sides (right and left). Attention! The lifting arm of the fitting must be in the open position (supply condition) as otherwise there is a risk of injury! Fitting is under spring tension.
- Page 15 Install regulation part on the lifting arms. verso strato View of right side. (left side symmetrical) The regulation part can be used for both sides (right and left). Connect regulation part 1 and lifting arm 2 with bolt 3 and secure with fixation clip 4.
- Page 16 Connect traction lever. verso strato View of right side. (left side symmetrical) verso Connect traction lever 1 with regulation part 2 and secure with fixation clip 3.
- Page 17 Lift-up fitting strato strato View of right side. (left side symmetrical) Connect traction lever 1 with regulation part 2 and secure with fixation clip 3.
- Page 18 Attach cabinet flap. Lift-up verso/strato verso strato For all designs. View of right side. (left side symmetrical) verso Hang in cabinet flap and secure with screw 1. For adjusting reasons the cabinet flap must have some free play, do not fully tighten the screw.
- Page 19 Fine-adjustment of the flap height Lift-up fitting verso/strato verso strato View of right side. (left side symmetrical) Height fine-adjustment The height adjustment of the cabinet flap is done through the excenter screw at the fitting (see scale). Please loosen fixing screws. max.
- Page 20 Fine-adjustment according to flap alignment. Lift-up verso/strato verso strato View of right side. (left side symmetrical) Lift-up fitting verso Fine-adjust The fine-adjust according to flap alignment is done by means of the excenter screw 2 on the regulation part. Tighten the fixing screw 1 after LIft-up fitting strato adjustment.
- Page 21 Fine-adjust according to flap inclination. Lift-up verso/strato verso strato View of right side. (left side symmetrical) SW 19 Ø4 / SW 4 Inclination of the flap in closed position The flap inclination is adjusted at the excenter 7 of the receptive base plate for the traction lever.
- Page 22 Adjust the final stop of the cabinet flap. verso strato SW 8 min. 9 mm max. 15 mm The adjustment of the final stop (abt. 12 mm), pre-set by the factory, is done through the stop-screw. To do this pull the lifting-arm / flap slightly downwards.
- Page 23 Power adjustment of the cabinet flap weight. verso strato The power-adjustment for the flap weight is done through the hex screw. (See scale) To do this pull lifting arm / flap downwards and adjust as shown. max. max. 20 mm min.
- Page 24 Carry out functional test. verso strato If everything has been adjusted correctly the flap will stop in any position from 20 cm opening and on. Install the housing-cover.
- Page 25 Choosing the correct verso model. huwilift- verso strato The correct model results from the height and weight of the flap, see chart. Choose the transversal stabilization bar according to the width of your cabinet. Verso (without transversal stabilization bar) Cabinet height Flap weight Part-No.
- Page 26 huwilift- verso strato Transversal stabilization bar for verso Part-No. Cabinet width Side wall Bar length thickness [ mm ] [ mm ] [ mm ] 04.3684.801.000.0490.00 04.3684.801.000.0484.00 04.3684.801.000.0790.00 04.3684.801.000.0784.00 1090 04.3684.801.000.1090.00 1200 1084 04.3684.801.000.1084.00 Further versions on request. We reserve the right for technical modifications.
- Page 27 Choosing the correct lift-up fitting strato model. strato The correct model results from the height and weight of the flap, see chart. Choose the transversal stabilization bar according to the width of your cabinet. LIft-up fitting strato (without transversal stabilization bar) Cabinet height Flap weight / Part-No.
- Page 28 strato Transversal stabilization bar for strato Part-No. Cabinet width Side wall Bar length thickness [ mm ] [ mm ] [ mm ] 04.3684.801.000.0490,00 04.3684.801.000.0484 ,00 04.3684.801.000.0790,00 04.3684.801.000.0784 ,00 1090 04.3684.801.000.1090,00 1200 04.3684.801.000.1084 ,00 1084 Further versions on request. We reserve the right for technical modifications.
