6. Display Tablet Operation

Note: About This Section. The display tablet includes buttons at the bottom with icons signifying
the menu functions. This manual includes "quick menu boxes" as shown below, signifying how to
access a setting from home screen. For example, to access calibration panel, from the home screen,
press the Set Key three times to view the calibration panel.
"Menu box" example. From the home screen, press the Set Key 3 times to view the calibration panel.

6.1 Initial Display Tablet Operation

Connect the display tablet power jack to AC power with the power adapter. The tablet starts to
receive from the indoor and outdoor transmitters, as shown in Figure 17 .
Version 2.12
No

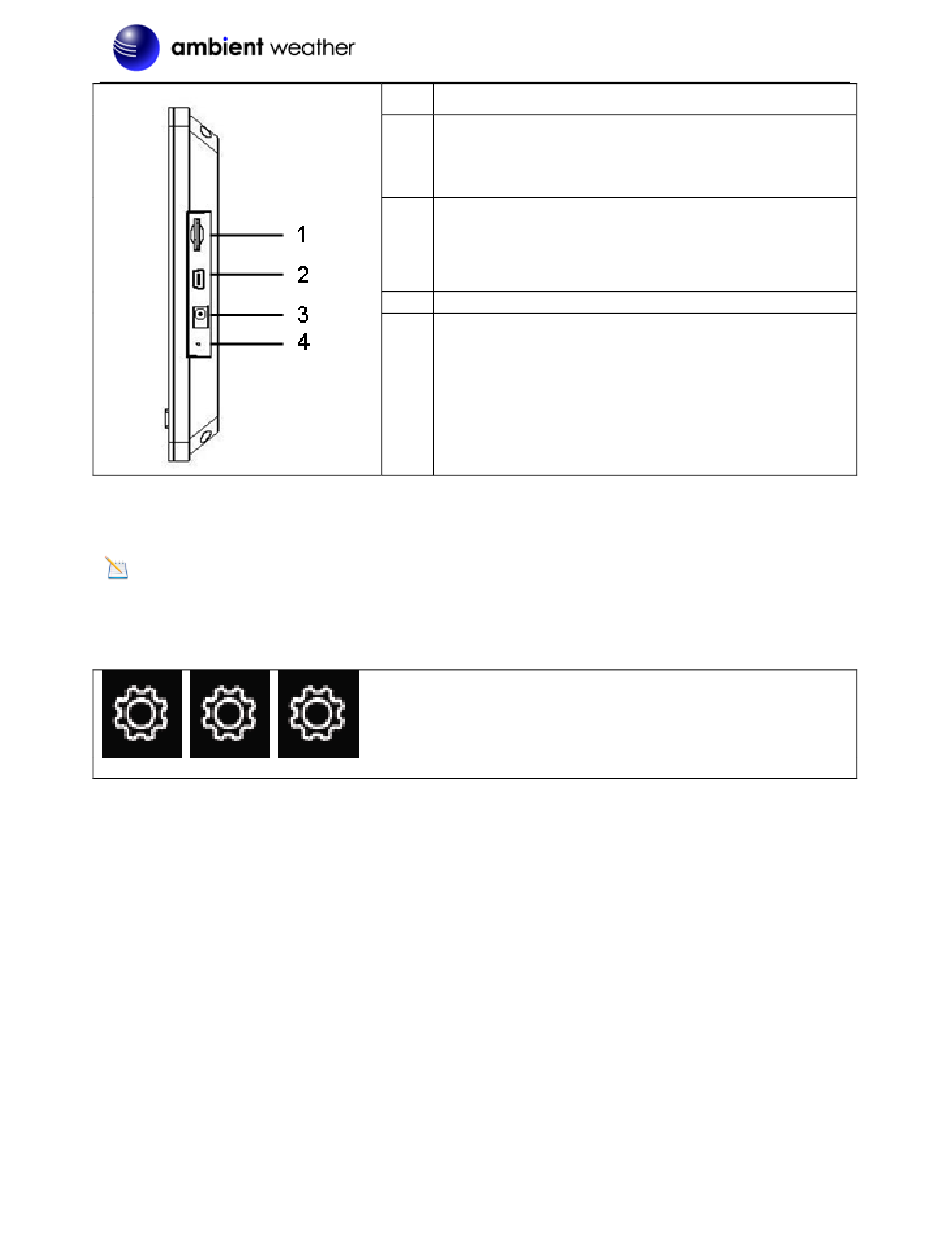

1 Memory card slot for upgrades and backup data
2 USB port for loading the operating system (not
required by user)
3 Power jack
4 Reset
Figure 16
