Greenlee GATOR LS60L Operation Manual page 8

Setup and Operation (cont'd)
Punching
Note: The LS60L is equipped with a microprocessor
to control the operation. It automatically shuts off if
punching does not begin within 1.5 seconds after pulling
the trigger. This guarantees the entire stroke is available
for punching and saves power.
1. Select the punch, die, and draw stud that will make
the appropriate size hole. Refer to illustrations on
the following pages.
2. Determine and mark the exact location for the hole.
Use a Greenlee Kwik-Stepper
that is slightly larger than the draw stud. This is the
pilot hole.
3. Push the retract button and the ram will retract fully.
4. Thread the 3/4" draw stud or 3/4" adapter com-
pletely into the punch driver. Refer to illustrations on
the following pages.
Note: For a punch and die with a 3/8" center hole,
thread the 3/8" draw stud into the end of the
3/4" adapter.
5. Install a spacer, if necessary. Refer to illustrations on
the following pages.
6. Slide the die over the draw stud with the open end
of the die facing away from the punch driver.
7. Insert the draw stud through the pilot hole.
8. Thread the punch onto the draw stud with the
cutting surfaces of the punch facing the material.
Tighten the punch by hand until the spacer, die,
material, and punch contact each other.
Note: All of the punch threads must be engaged
by the draw stud threads. If any of the punch
threads are not engaged, disassemble the setup,
remove the spacer, and reassemble the setup.
9. Pull the trigger. The LS60L will automatically shut off
when it senses that the punch is completely through
the material.
Greenlee / A Textron Company
LS60L Battery-powered Punch Driver
drill bit to drill a hole
®
8
Release the trigger when the punch completes the
hole. The LS60L may not sense when a hole is made
in sheets thinner than 18 ga. (1 mm) and soft materi-
als (such as plastic, etc.).
Note: A "popping" sound indicates that the LS60L
has reached relief pressure. This may indicate that
the operation attempted is beyond the capacity of
the tool.
10. Release the trigger. When the punch is completed,
the ram will retract completely.
Note: At any time during the punching cycle,
pushing the return button will result in a complete
return of the ram.
11. To stop the ram from returning fully, activate the
trigger for a brief moment. This activation will close
the retraction valve and stop the retraction motion.
12. Unscrew the punch. Remove slugs from the die.
Remove the spacer and unscrew the draw stud.

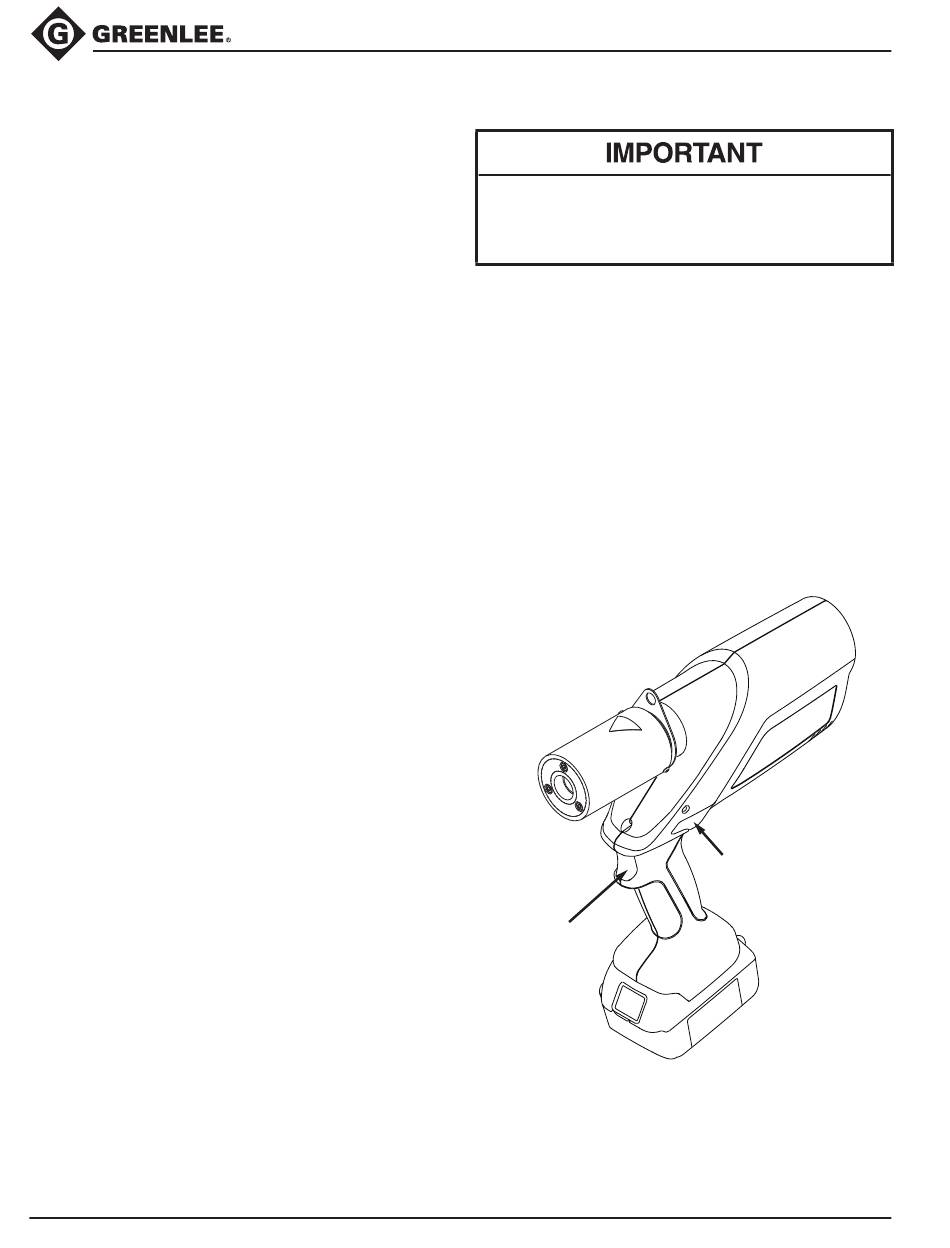

Pull trigger
to punch
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Push to retract ram
