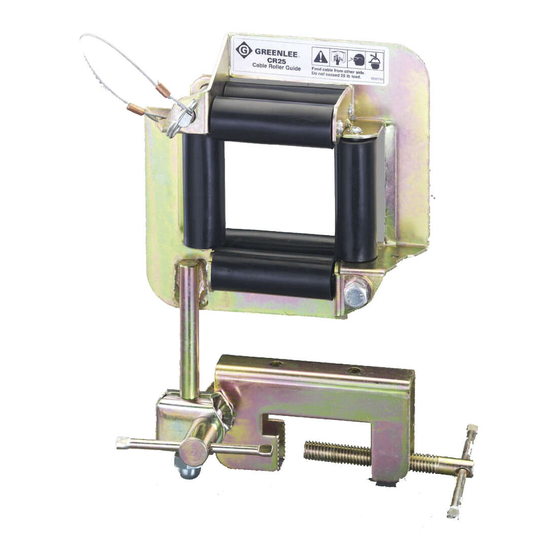

Cable roller

Advertisement

INSTRUCTION MANUAL
CR25
Cable Roller Guide
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
52022071
© 2005 Greenlee Textron Inc.
7/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR25 and is the answer not in the manual?

Questions and answers

Summary of Contents for Greenlee CR25

  • Page 1 INSTRUCTION MANUAL CR25 Cable Roller Guide Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 52022071 © 2005 Greenlee Textron Inc. 7/05...
  • Page 2: Table Of Contents

    CR25 Cable Roller Guide Table of Contents Description Description ..............2 The Greenlee CR25 Cable Roller Guide is intended to install network data cables (Category 5, 5e, and 6). It is Safety ................2 not intended for installation of electrical power cables.
  • Page 3: Important Safety Information

    CR25 Cable Roller Guide IMPORTANT SAFETY INFORMATION SAFETY ALERT Wear eye protection when operating or servicing this tool. SYMBOL Failure to wear eye protection could result in serious eye injury from flying debris. This symbol is used to call your attention to hazards or unsafe practices which could result in an injury or property damage.
  • Page 4: Operation

    CR25 Cable Roller Guide Operation 1. Clamp the CR25 onto a tray or joist and 3. When finished, open the bracket and lay run cables through. cables in the trough. Remove the CR25. 2. Close the bracket and install the quick release pin.
  • Page 5: Operating Tips

    CR25 Cable Roller Guide Operating Tips Minimum Bend Radius Cable Bend Radius Cable Diameter = 0.20" Maintain a maximum Never exceed bend radius of 4 times a 90° bend. the cable diameter (4-pair cables). Cable Stretching Avoid stretching Do not exceed 25 lb.
  • Page 6: Illustration And Parts List

    800-524-2853 International +1-815-397-7070 Fax: +1-815-397-9247 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 An ISO 9001 Company Greenlee Textron Inc. is a subsidiary of Textron Inc. • www.greenlee.com Printed in USA Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
