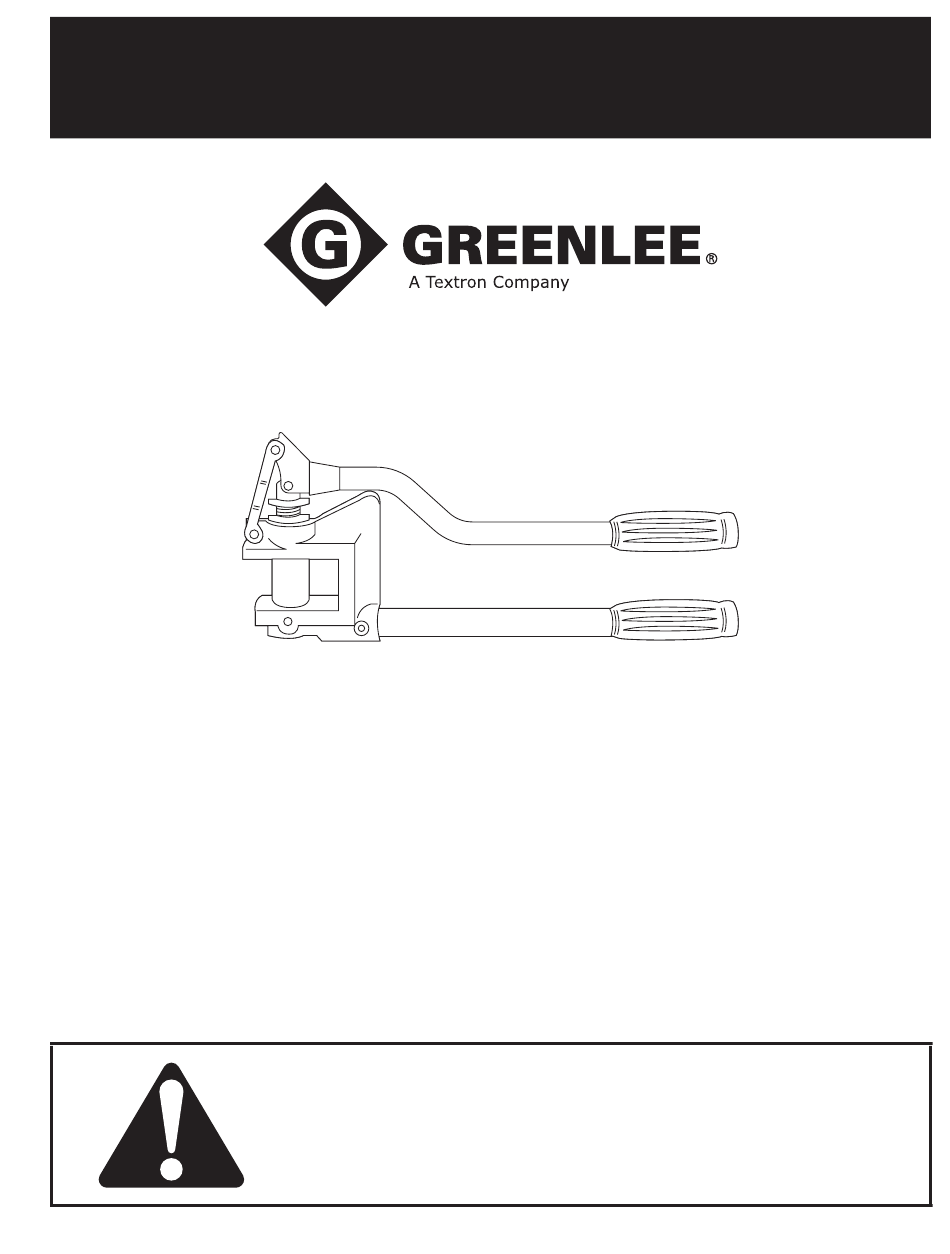

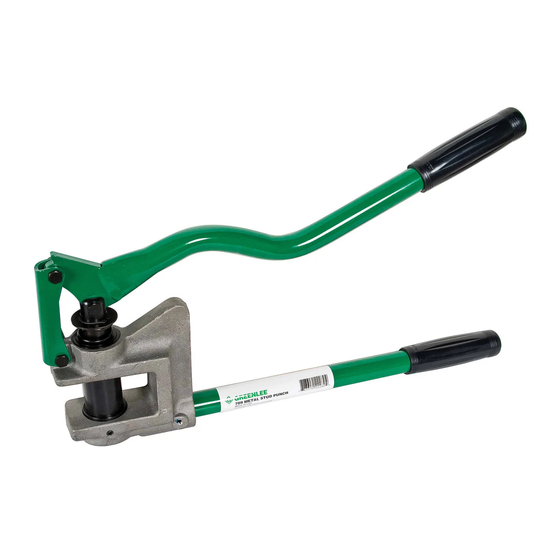

- Page 1 INSTRUCTION MANUAL 709 and 710 Stud Punches Read and understand all of the instructions and safety information in this manual before operating of servicing this tool. 99975106 © 2007 Greenlee Textron Inc. IM 888 REV 21 3/07...
-
Page 2: Important Safety Information
Do not use on heavier than 20 gauge mild steel. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. KEEP THIS MANUAL Greenlee / A Textron Company 4455 Boeing Dr. -
Page 3: Operation
Greenlee Stud Punches are intended to punch round Position the punch on the metal stud. Squeeze the holes in 20 gauge steel studs. The 709 tool punches handles together. The slug will fall free when the hole is a 22.5 mm (7/8") diameter hole; the 710 tool punches a complete. - Page 4 709 and 710 Stud Punches Illustration Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 5: Parts List
709 and 710 Stud Punches Parts List Part No. Part No. Description Qty. 50222805 50212850 Stud punch complete 52027489 52027489 Lever unit ..................1 Link (see below for service parts) ..........1 Locknuts ..................3 50213032 50213032 Washer, flat .968 x 1.62 x .062 .............1... - Page 6 800-435-0786 Fax: 800-451-2632 815-397-7070 Fax: 815-397-1865 Canada 800-435-0786 Fax: 800-524-2853 International +1-815-397-7070 Fax: +1-815-397-9247 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 An ISO 9001 Company Greenlee Textron Inc. is a subsidiary of Textron Inc. • www.greenlee.com...
